FORK SPRINGER +4 CHR

Be the first to review this product

In stock

SKU

04010076

€835.00

Dispatching between 03.11.2026 and 26.01.2027

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Calculate instalment

▼

Select provider

Down payment

€

Loan amount: –

Payment period

24 months

3 months 60 months

Monthly payment – €

Product price –

Loan amount –

Total amount –

Interest cost –

Interest rate –

Contract fee –

Administration fee –

Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

Details

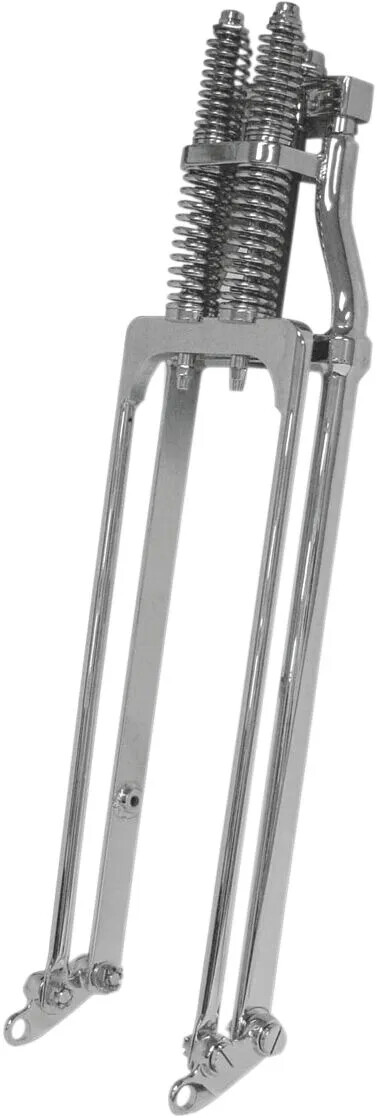

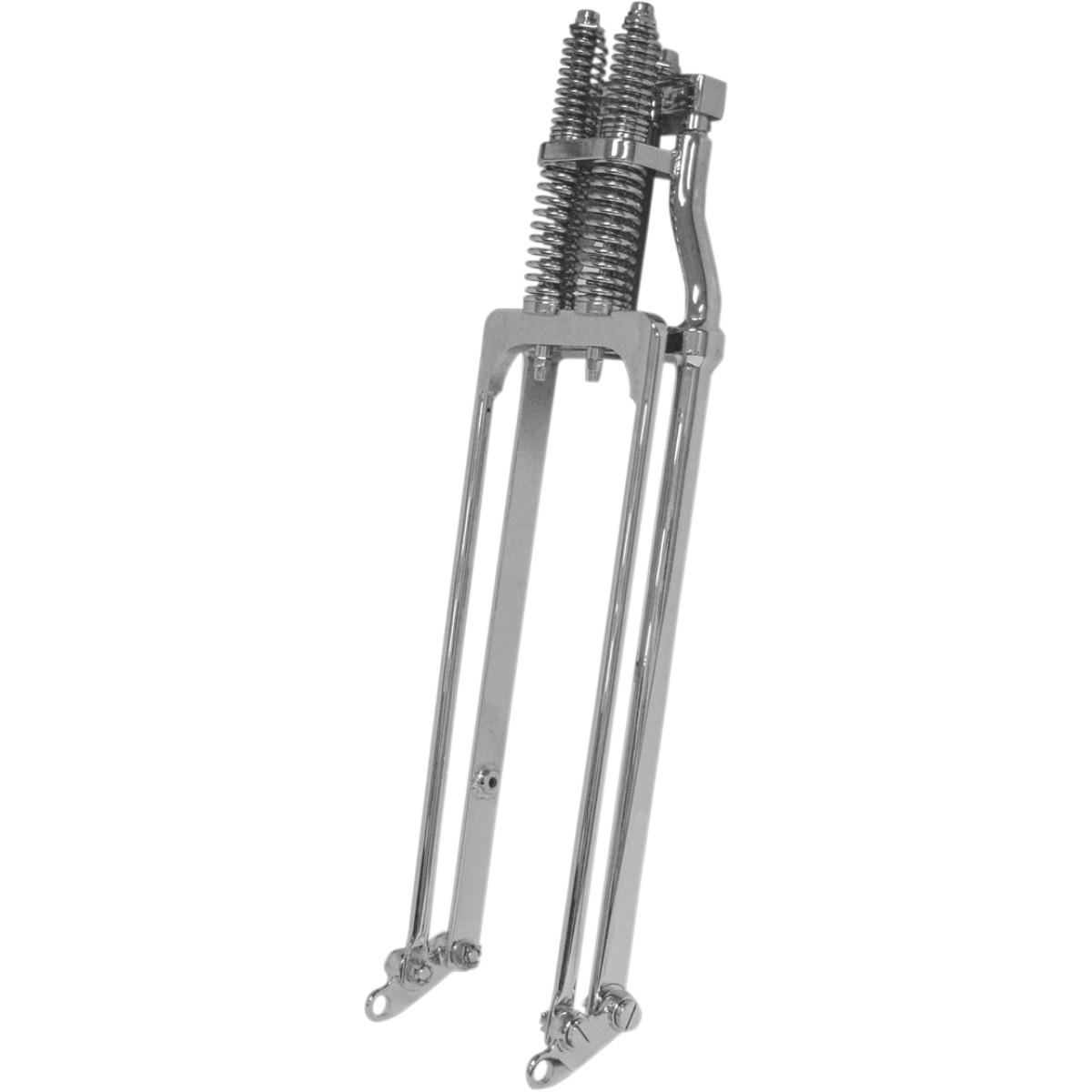

Springer Fork

Economical alternative to a shock dampened-type Springer
Fully assembled with an in-line top bracket without a built-in rake
1" O.D. steering stem designed for Timken® type bearings
Both rear legs are threaded for right or left brakes
The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
Measures 9-1/4" between Rockers
Riser mounts are on 4-3/4" centers and threaded 1/2"-20
Requires '84-'99 wheel (compatible with 3/4" O.D. axle)
These Springers are measured from the bottom of the top tree to the center of the axle
Springers do not accept spotlight bars; no fender mounts.
For American models only; will not fit on European models.

These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.

COLOR/FINISH	Chrome
SIZE	Lifts 102,00 mm (4,00")
TYPE	Springer
UNITS	Each
PRODUCT NAME	Fork Assembly

More Information

More Information
Weight	24.770000
Height	240
Width	390
Brand	DRAG SPECIALTIES
Lenght	1290
Availability	Factory order
Supplier reference	MU35214
Outlet	No
Ships in	Ask about availability
Fitment chart (old)	HARLEY DAVIDSON FLS 1690 ABS SOFTAIL SLIM 2012-2014 FLS 1690 SOFTAIL SLIM 2012-2013 FLST 1340 HERITAGE SOFTAIL 1987-1990 FLST 1450 HERITAGE SOFTAIL 2006 FLSTC 1340 HERITAGE SOFTAIL CLASSIC 1988-1990,1993,1995-1999 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2002-2003,2005-2006 FLSTC 1584 HERITAGE SOFTAIL CLASSIC 2009-2011 FLSTC 1690 ABS HERITAGE SOFTAIL CLASSIC 2013 FLSTC 1690 ABS HERITAGE SOFTAIL CLASSIC 110TH ANNIVERSARY 2013 FLSTC 1690 HERITAGE SOFTAIL CLASSIC 2012 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2002-2006 FLSTF 1340 FAT BOY 1992-1993,1995-1999 FLSTF 1450 FAT BOY 2000-2004,2006 FLSTF 1584 ABS FAT BOY 2011 FLSTF 1584 FAT BOY 2007-2010 FLSTF 1690 ABS FAT BOY 2012-2013 FLSTF 1690 FAT BOY 2012,2014 FLSTFB 1584 FAT BOY LO 2010-2011 FLSTFB 1690 ABS FAT BOY LO 2012-2014 FLSTFB 1690 ABS FAT BOY LO 110TH ANNIVERSARY 2013 FLSTFB 1690 FAT BOY LO 2013 FLSTFI 1450 EFI FAT BOY 2001-2003,2006 FLSTFSE 1690 FAT BOY SCREAMIN EAGLE 2005 FLSTFSE2 1690 FAT BOY SCREAMIN EAGLE 2006 FLSTN 1340 HERITAGE SOFTAIL SPECIAL/NOSTALGIA 1993-1996 FLSTN 1450 SOFTAIL DELUXE 2006 FLSTN 1584 ABS SOFTAIL DELUXE 2011 FLSTN 1584 SOFTAIL DELUXE 2007-2011 FLSTN 1690 ABS SOFTAIL DELUXE 2013 FLSTN 1690 SOFTAIL DELUXE 2012 FLSTNI 1450 EFI SOFTAIL DELUXE 2005-2006 FLSTNSE 1800 ABS SOFTAIL DELUXE CVO 2014 FLSTS 1340 HERITAGE SOFTAIL SPRINGER 1997-1999 FLSTS 1450 HERITAGE SOFTAIL SPRINGER 2000-2001,2003 FLSTSB 1584 CROSS BONES 2009-2011 FLSTSC 1450 SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSC 1584 SOFTAIL SPRINGER CLASSIC 2007 FLSTSCI 1450 EFI SOFTAIL SPRINGER CLASSIC 2006 FLSTSE 1800 SOFTAIL CONVERTIBLE CVO 2010 FLSTSE2 1800 ABS SOFTAIL CONVERTIBLE CVO 2011 FLSTSE2 1800 SOFTAIL CONVERTIBLE CVO 2011 FLSTSE3 1800 ABS SOFTAIL CONVERTIBLE CVO 2012 FLSTSI 1450 EFI HERITAGE SOFTAIL SPRINGER 2003 FXR 1340 II SUPER GLIDE II 1984 FXR 1340 SUPER GLIDE 1986-1993 FXR2 1340 SUPER GLIDE SCREAMIN EAGLE 1999 FXRD 1340 DISC GLIDE 1986 FXRDG 1340 DISC GLIDE 1984 FXRP 1340 SPORT GLIDE POLICE 1984 FXRS 1340 LOW GLIDE 1984-1985 FXRS 1340 LOW RIDER 1987,1990-1992 FXRS CON. 1340 LOW RIDER CONVERTIBLE 1990,1992-1993 FXRS-SP 1340 LOW RIDER SPORT EDITION (FXRSL) 1987-1993 FXRT 1340 SPORT GLIDE 1984-1985,1987-1988,1992 FXS 1584 ABS BLACKLINE 2011 FXS 1584 BLACKLINE 2011 FXS 1690 ABS BLACKLINE 2013 FXS 1690 BLACKLINE 2012-2013 FXSB 1340 LOW RIDER 1984-1985 FXSB 1690 ABS BREAKOUT 2013 FXSB 1690 BREAKOUT 2013 FXSBSE 1800 ABS BREAKOUT CVO 2013 FXSBSE2 1800 ABS BREAKOUT CVO 2014 FXST 1340 SOFTAIL 1985-1986,1988-1990 FXST 1450 SOFTAIL 2000-2001,2003-2006 FXST 1584 SOFTAIL 2007 FXSTB 1340 SOFTAIL NIGHT TRAIN 1998-1999 FXSTB 1450 SOFTAIL NIGHT TRAIN 2000,2003-2006 FXSTB 1584 SOFTAIL NIGHT TRAIN 2007,2009 FXSTBI 1450 EFI SOFTAIL NIGHT TRAIN 2003-2006 FXSTC 1340 SOFTAIL CUSTOM 1986,1988-1989,1991-1994,1996-1997 FXSTC 1584 SOFTAIL CUSTOM 2007-2010 FXSTD 1450 SOFTAIL DEUCE 2000-2003,2005-2006 FXSTD 1584 SOFTAIL DEUCE 2007 FXSTDI 1450 EFI SOFTAIL DEUCE 2001-2005 FXSTDSE 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2003 FXSTI 1450 EFI SOFTAIL 2003-2005 FXSTS 1340 SOFTAIL SPRINGER 1988,1990-1992,1994-1999 FXSTS 1450 SOFTAIL SPRINGER 2001-2003,2006 FXSTSB 1340 BAD BOY 1995-1997 FXSTSI 1450 EFI SOFTAIL SPRINGER 2003-2006 FXSTSSE 1800 SOFTAIL SPRINGER SCREAMIN EAGLE 2007 FXSTSSE3 1800 SOFTAIL SPRINGER CVO 2009 XL 1200 C SPORTSTER CUSTOM 1996-2003 XL 1200 S SPORT 1996-1998,2001-2003 XL 883 C SPORTSTER 53 CUSTOM 1998-2001,2003 XL 883 R ROADSTER 2002-2003 XLH 1100 SPORTSTER 1986-1987 XLH 1200 SPORTSTER 1991-1996,1998,2001,2003 XLH 883 SPORTSTER 1987,1993-2003 XLH 883 SPORTSTER DELUXE 1988-1991,1994-1995 XLH 883 SPORTSTER HUGGER 1988-1993,1995,1997-2003
