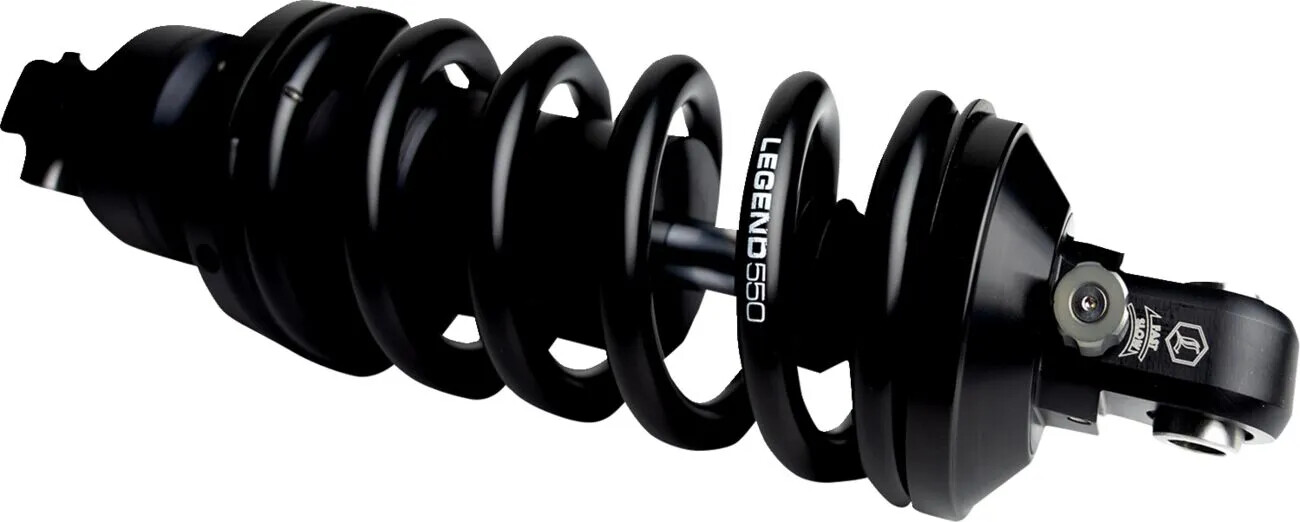

SHOCK REVO-A MONO HD 13

REVO-A Adjustable M-Eight Softail Coil Suspension

• REVO-A Coil provides improved plush ride quality, control, and resistance to bottoming out
• Provides optimum rebound performance that can be fine tuned for any given rider weight, personal ride-quality preference or personal riding style
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
• PTFE linear sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized machined Billet Aluminum 46 mm smooth bore mono tube utilizing a light weight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc-valved damping self adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and PTFE based sliding bearings for improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
• Sold as Mono Shock (1 shock only)
• Preload wrench included
• Designed for optimum performance with the Legend Axeo front suspension
• Lifetime Warranty
• Made in the USA

Standard length is 13" for FLHC/FXFB Models. Standard length for other models 12.6". Heavy Duty applications recommended for 350lb+ rider and passenger total weight.  Heavy-duty is suggested if the majority of your riding is 2 up with a passenger and/or gear.

COLOR/FINISH	Black
MODEL	Revo-A
TYPE	Coilover Monotube
UNITS	Each
PRODUCT NAME	Shock Absorber
MOUNTING POSITION	Rear
DUTY	Heavy Duty
DAMPING METHOD	Deflective Disc
ADJUSTMENT STYLE	Manual
ADJUSTMENT TYPE	Adjustable Preload| Adjustable Rebound Damping
