VALVE SPRINGS HIGH M8 17+

High Load Beehive® Spring Kit

• Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
• FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
• Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to .565” lift
• Springs will accommodate over .600 cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
• Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
• Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

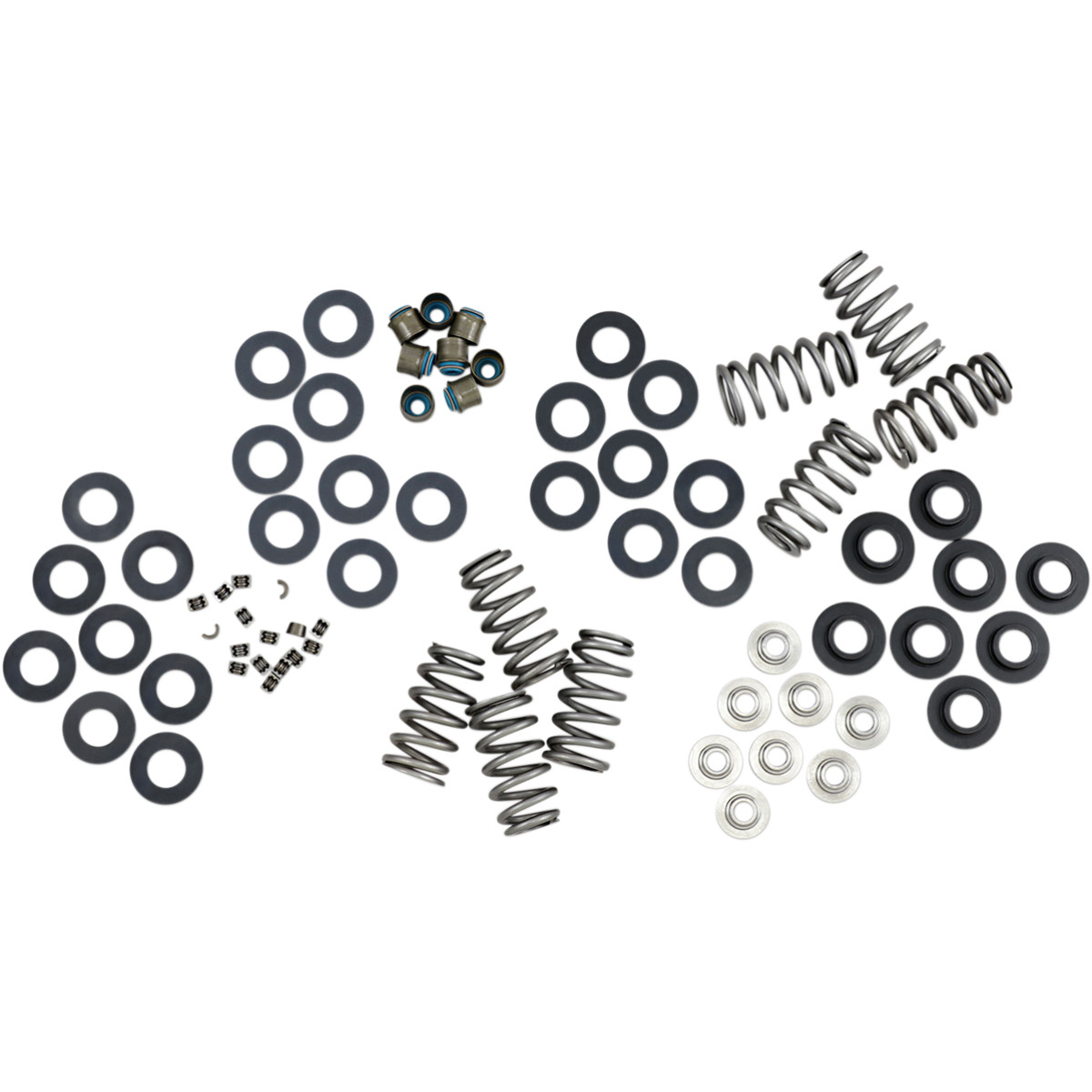

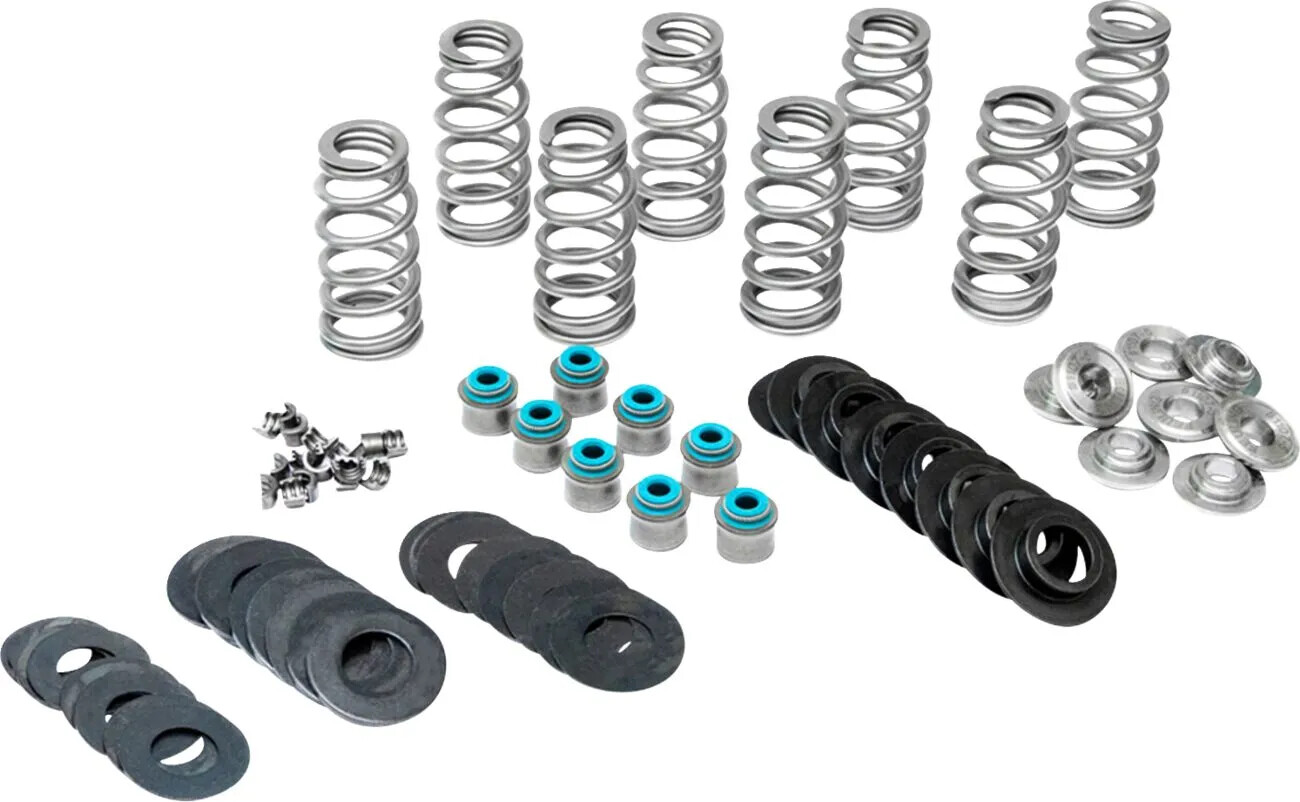

• Kits include: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
• ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection
• Seat lbs./Installed Height
• 151 Lbs. @ 1.475 (0.485 Lift)
• 144 Lbs. @ 1.498 (0.508 Lift)
• 143 Lbs. @ 1.501 (0.511 Lift)
• 140 Lbs. @ 1.511 (0.521 Lift)
• 124 Lbs. @ 1.562 (0.578 Lift)
• 120 Lbs. @ 1.582 (0.592 Lift)
• 304 Lbs @ 0.990 OPEN HEIGHT
• Coil Bind @ .945
• Recommended for .540”+ lift camshafts
• Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
• Made in the U.S.A.
