CAM KIT RACE 574 CC 99+TC

Race Series® Camchest Kit

• All necessary components from top to bottom of the camchest
• All parts work and function together in total harmony
• Provide maximum reliability, longevity, peak performance and the coolest engine and oil temperatures obtainable
• Conversion chain drive kits allows owners to update old mechanical style cams and tensioners to new hydraulic tensioner system

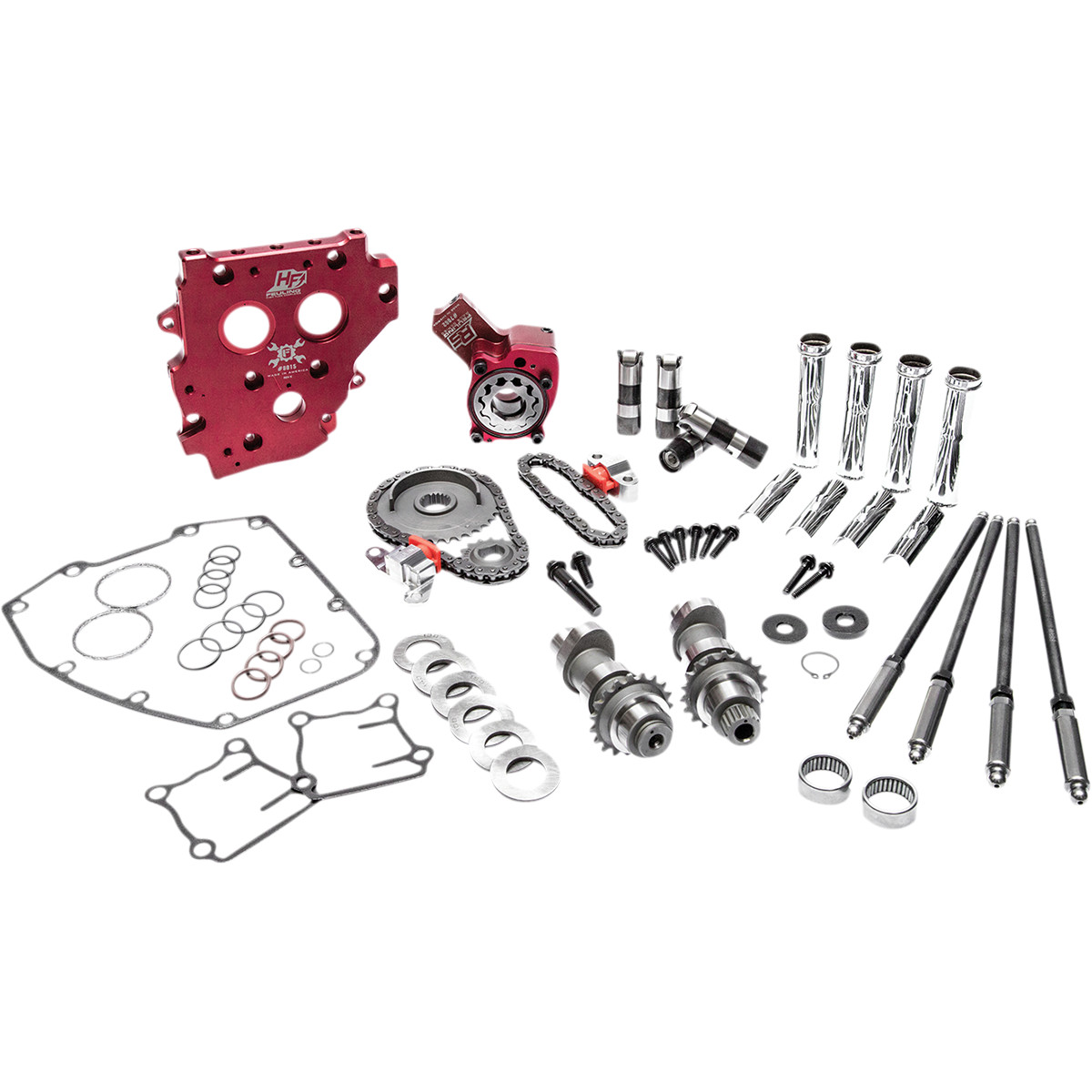

• Kits include Feuling® Race Series™ high volume oil pump, high flow billet cam plate, REAPER® Series camshafts, Race Series™ hydraulic roller lifters, adjustable pushrods, Timken®/Koyo® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
• Kits utilize the 99-06 inner cam journals with the 07-17 outer cam journals allowing the use of the 07-17 cam plates, oil pump, hydraulic chain tensioners and chain drive system
• Installation of gear drive cams will require separate purchase of S&S or Andrews 4-gear drive kit
• Made in the U.S.A.

Conversion camshafts for 99-06 Twin Cam engines utilize the 99-06 inner cam journals with the 07-16 outer cam journals allowing the use of 07-16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation).

EXHAUST DURATION	255°
EXHAUST LIFT	0,574"
INTAKE DURATION	240°
INTAKE LIFT	0,574"
MODEL	Race Series®
APPLICATION	Exhaust| Intake
EXHAUST CLOSE	14°
EXHAUST OPEN	61°
INTAKE CLOSE	45°
INTAKE OPEN	15°
TYPE	Chain
UNITS	Kit
PRODUCT NAME	Camchest Kit
GRIND	574 Series
EXHAUST LIFT IMPERIAL	0.574"
EXHAUST OPEN IMPERIAL	61°
INTAKE DURATION IMPERIAL	240°
INTAKE OPEN IMPERIAL	15°
INTAKE CLOSE IMPERIAL	45°
INTAKE LIFT IMPERIAL	0.574"
EXHAUST DURATION IMPERIAL	255°
EXHAUST CLOSE IMPERIAL	14°
