CAM KIT HP+ 574 CC 99+TC

HP+® Camchest Kit

• All necessary components from top-to-bottom of the camchest
• Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
• Quieter and smoother engine operation
• Increase oil pressure, scavenge volume and engine oil flow
• 25-35 degree cooler engine temperatures
• 15-30 degree cooler oil temperatures
• 15-30 more PSI of oil pressure
• Eliminate wet sumping, blow by and oily air cleaners
• Heavy-duty Fast Install adjustable pushrods can be installed without removing top rocker covers

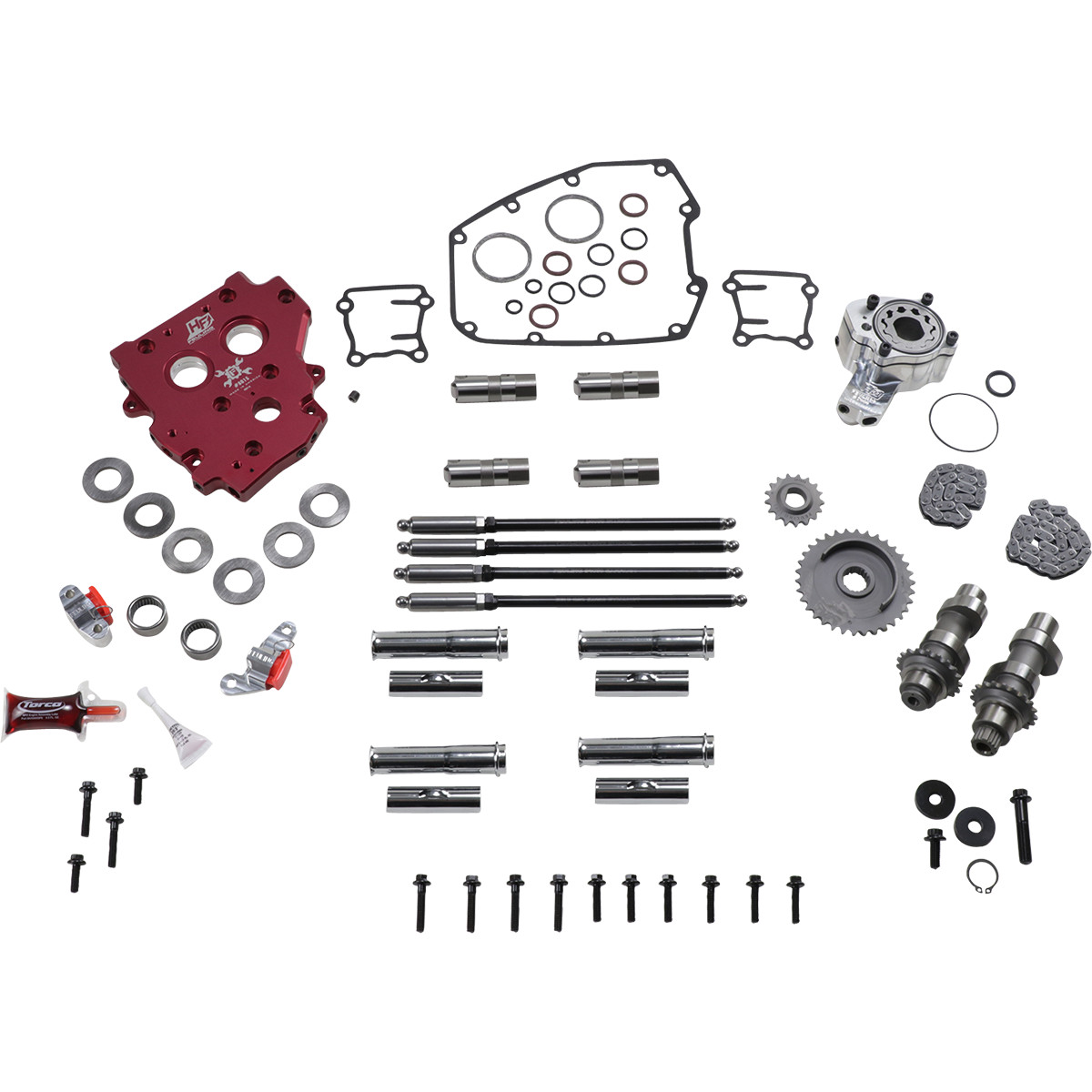

• Includes Feuling® HP+® high-volume oil pump, high-flow billet cam plate, REAPER® Series camshafts, HP+® hydraulic roller lifters, Fast Install® adjustable pushrods, Timken®/Koyo® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
• Conversion chain drive kits update early mechanical-style tensioner systems to the new late-style hydraulic tensioner chain drive system; these kits utilize conversion Reaper® camshafts which have '99-'06 inner-cam journals matched with '07-'17 outer-cam journals, allowing the use of the '07-'17 cam plate and hydraulic chain drive tensioner system; hydraulic chain drive components purchased separately
• Installation of gear drive cams will require separate purchase of S&S or Andrews 4-gear drive kit

Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation).

EXHAUST DURATION	255°
EXHAUST LIFT	0,574"
INTAKE DURATION	240°
INTAKE LIFT	0,574"
MODEL	HP+®
APPLICATION	Exhaust| Intake
EXHAUST CLOSE	14°
EXHAUST OPEN	61°
INTAKE CLOSE	45°
INTAKE OPEN	15°
TYPE	Chain Conversion
UNITS	Kit
PRODUCT NAME	Camchest Kit
GRIND	574 Series
EXHAUST LIFT IMPERIAL	0.574"
EXHAUST OPEN IMPERIAL	61°
INTAKE DURATION IMPERIAL	240°
INTAKE OPEN IMPERIAL	15°
INTAKE CLOSE IMPERIAL	45°
INTAKE LIFT IMPERIAL	0.574"
EXHAUST DURATION IMPERIAL	255°
EXHAUST CLOSE IMPERIAL	14°
