CAM KT RACE 592 M8 17+ WC

In stock
SKU
09251269
FEULING PARTS
Special Price €2,309.00 Regular Price €2,887.00
Dispatching between 16.03.2026 and 17.03.2026
Monthly payment from 72.74€, when choosing ESTO instalment as the payment method.

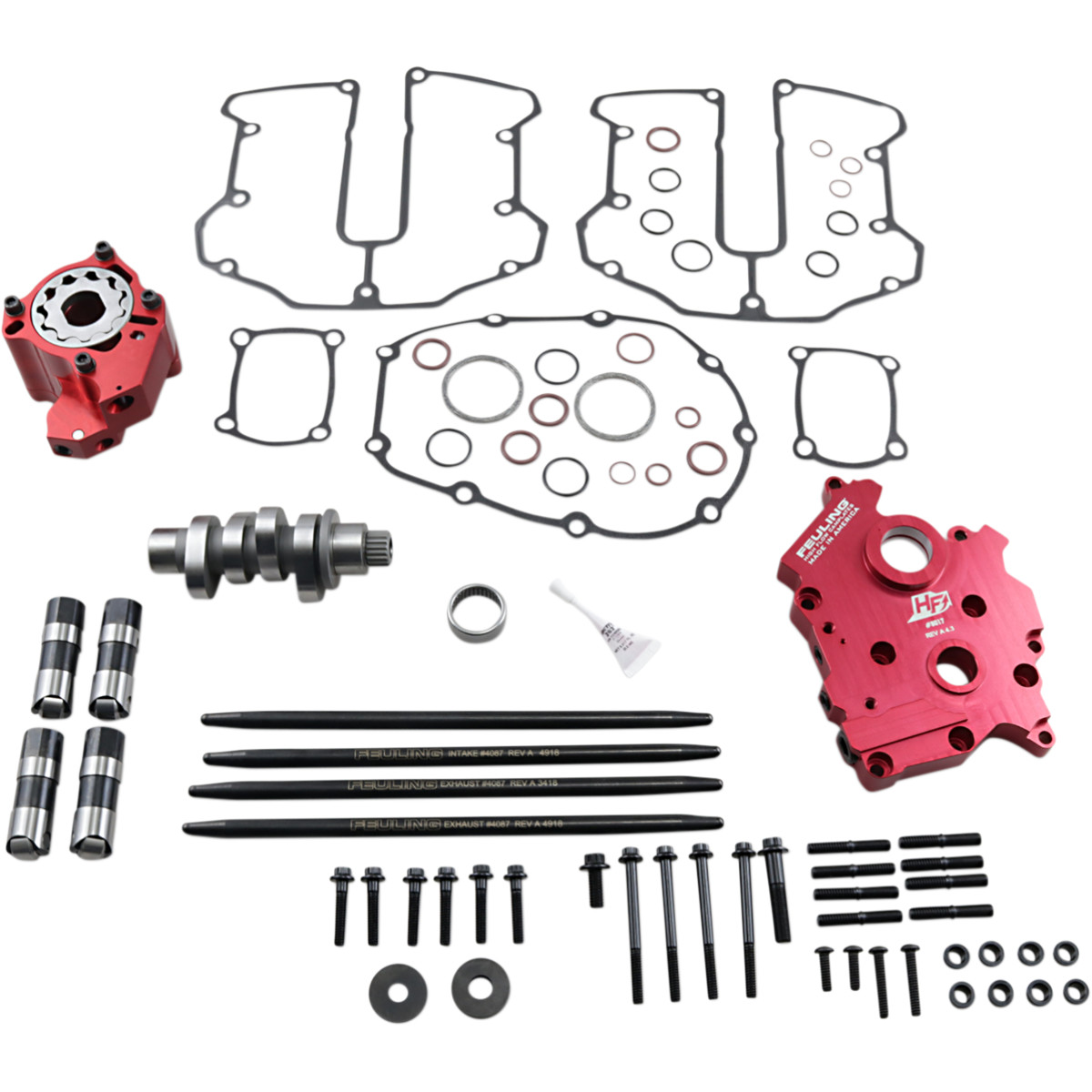

592 Race Series® Camchest Kit

  • Kit includes Race Series oiling system: billet 7075 oil pump, Race Series lifters and High Flow billet aluminum camplate
  • Oil pump is 50% harder and stronger than the factory pump, holds tighter tolerances under temperature
  • Race Series hydraulic lifters have a full .200” of total travel designed with slower bleed-down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep-ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Eliminate wet sumping, blow by and oily air cleaners
  • Heavy duty .165” wall one-piece pushrods reduce valvetrain harmonics and increase valve lift
  • High-flow air cleaner and triple-stepped exhaust pipe highly recommended
  • High-lift high-load valve springs are required
  • RPM range 2850-6250



EXHAUST DURATION264°
EXHAUST LIFT0.592"
INTAKE DURATION234°
INTAKE LIFT0.578"
MODELRace Series®
APPLICATIONExhaust| Intake
EXHAUST CLOSE16°
EXHAUST OPEN68°
INTAKE CLOSE34°
INTAKE OPEN20°
FEATURESTwin Cooled
TYPEChain
UNITSKit
PRODUCT NAMECamchest Kit
GRIND592 Series
EXHAUST LOBE CENTERLINE116°
INTAKE LOBE CENTERLINE97°
EXHAUST LIFT IMPERIAL0.592"
EXHAUST OPEN IMPERIAL68°
INTAKE DURATION IMPERIAL234°
INTAKE OPEN IMPERIAL20°
INTAKE CLOSE IMPERIAL34°
INTAKE LIFT IMPERIAL0.578"
EXHAUST DURATION IMPERIAL264°
EXHAUST CLOSE IMPERIAL16°
EXHAUST LOBE CENTERLINE IMPERIAL116°
INTAKE LOBE CENTERLINE IMPERIAL97°
More Information
Weight5.190000
Height150
Width280
BrandFEULING PARTS
Lenght415
Supplier reference7268
OutletNo
Fitment chart (old)HARLEY DAVIDSON
FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2017-2018
FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2021-2022
FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022
FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2021
FLHTK 1750 ABS ELECTRA GLIDE ULTRA LIMITED 107 2017
FLHTK 1750 ABS ULTRA LIMITED 107 2018
FLHTK 1750 ABS ULTRA LIMITED ANNIVERSARY 107 2018
FLHTK 1750 ABS ULTRA LIMITED SHRINE EDITION 107 2018
FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2022
FLHTK 1868 ABS ULTRA LIMITED SHRINE EDITION 114 2019-2021
FLHTKL 1750 ABS ELECTRA GLIDE ULTRA LIMITED LOW 107 2017
FLHTKL 1750 ABS ULTRA LIMITED LOW 107 2018
FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019
FLHTKSE 1868 ABS ELECTRA GLIDE ULTRA LIMITED CVO 114 2017
FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2018-2021
FLHTKSE 1923 ABS ULTRA LIMITED CVO ANNIVERSARY 117 2018
FLHXSE 1868 ABS STREET GLIDE CVO 114 2017
FLHXSE 1923 ABS STREET GLIDE CVO 117 2018-2022
FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022
FLTRKSE 1923 ABS ROAD GLIDE LIMITED CVO 117 2022
FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018
FLTRU 1868 ABS ROAD GLIDE ULTRA 114 2019
FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2018-2022
