CDI injection module Malossi Force Master 3 w/ matrix display for Yamaha T-Max 530ie 4-stroke LC 2012-2016 J409E

Be the first to review this product

In stock

SKU

RPM.5515730

€176.00

Dispatching between 23.03.2026 and 26.03.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 8.83€, when choosing ESTO instalment as the payment method.

Details

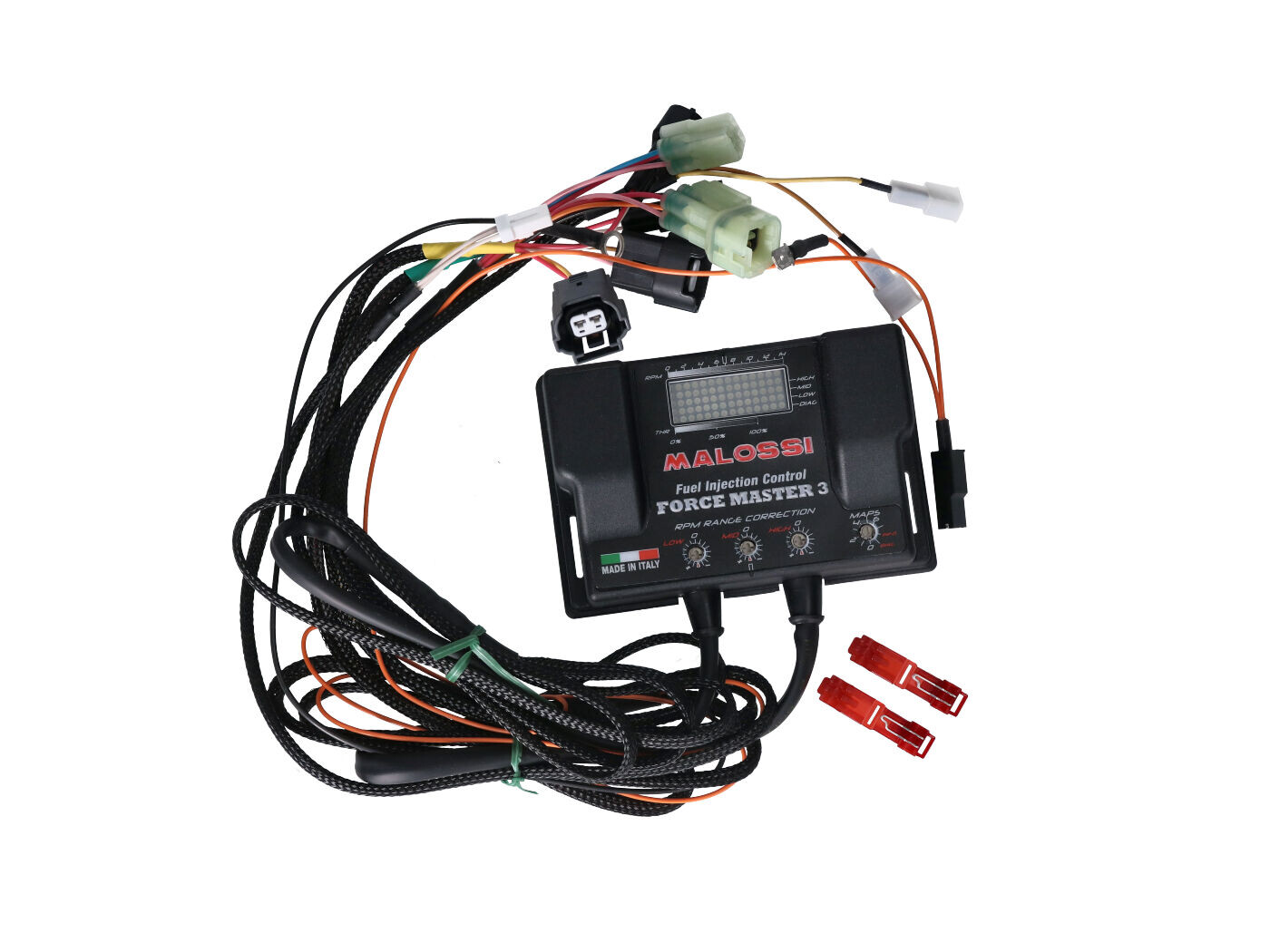

Fuel injection control Malossi Force Master 3 is a CDI injection module w/ matrix display suitable for Yamaha T-Max 530ie 4-stroke LC 2012-2016 J409E.

Technical data:

Air-fuel ratio control
Â±14% in LOW / HIGH / MID
Speed limiter +1000rpm
8 different mappings
Lambda emulator
Temperature range from -20Â°C to +80Â°C
Minimum voltage +7V
Maximum voltage +16V
Average power consumption 200mA
Safety class type IP65

More Information

More Information
Weight	0.630000
Barcode EAN13	4057237621061
Height	0
Width	0
Brand	MALOSSI
Lenght	0
Supplier reference	M.5515730
Availability	Factory order
Outlet	No
Ships in	Ask about availability
Fitment chart (old)	<!-- algus kataloog 2 --> <b>Kataloog 2 sobivused:</b><br><table><tr><th><b>Tootja</b></th><th><b>Mudel</b></th></tr><tr><td>Yamaha</td><td>T-Max 530i 12-14 E3 [SJ091/ SJ092/ 59C]</td></tr><tr><td>Yamaha</td><td>T-Max 530i 15-17 E3 [SJ098/ SJ099/ 2PW]</td></tr></table><!-- lopp kataloog 2 --><br>
