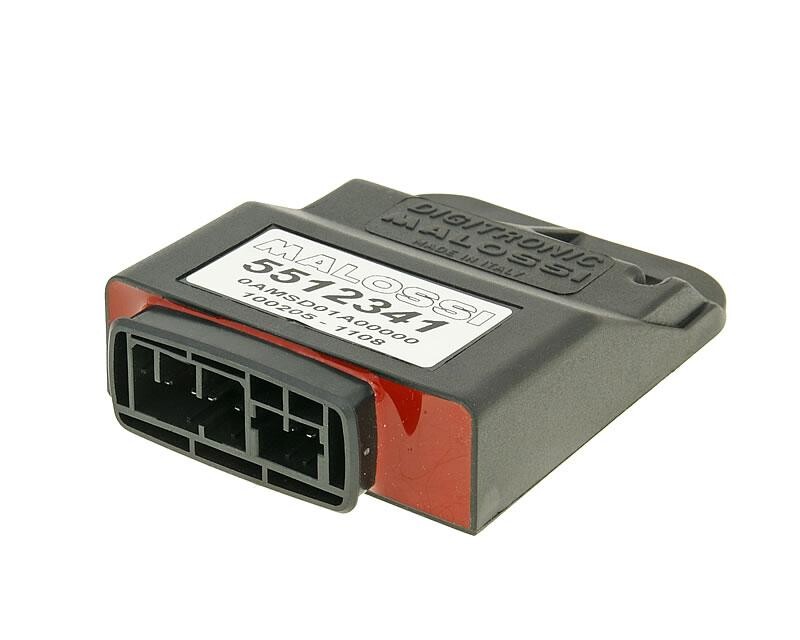

CDI unit Malossi Digitronic Maxi for Aprilia Gilera Piaggio (with immobilizer)

Electronic control unit with variable pre-ignition for scooters with 125, 180 and 200cc Piaggio 4-stroke engines with immobilisers. Plug and play technology that simply replaces the original unit. Microprocessor has a memory system for the ignition point. Ignition curve adjustment using 16 points and the choke is controlled automatically based on engine temperature. Adjustable rev limit at 11,000rpm at a current from 35,000-50,000V. Note: Ignition unit is only for scooters with a factory-fitted immobilizer and doesn’t feature an immobiliser. Only the LED lights on the instrument board remain active. The plug on the CDI unit must be identical, and not require any modification. The unit is suitable for the following maxi-scooters with immobilisers: APRILIA

ATLANTIC - Arrecife 125 4-stroke LC
ATLANTIC 200 4-stroke LC (PIAGGIO M234M)
SCARABEO 125 4-stroke LC (PIAGGIO)
SPORTCITY 125 4-stroke LC (PIAGGIO M281M)
SPORTCITY 200 4-stroke LC euro 3 (PIAGGIO M288M)

DERBI

GP1 125 4-stroke LC euro 2-3
RAMBLA 125 4-stroke LC euro 3 (PIAGGIO M287M)

GILERA

DNA 125 4-stroke LC
DNA 180 4-stroke LC
NEXUS 125 4-stroke LC euro 3
RUNNER ST 125 4-stroke LC euro 3
RUNNER ST 200 4-stroke LC euro 3
RUNNER VX 125 4-stroke LC 2006->
RUNNER VX 125 4-stroke LC <-2005
RUNNER VXR 180 4-stroke LC
RUNNER VXR 200 4-stroke LC <-2005
RUNNER VXR 200 4-stroke LC 2006->

MALAGUTI

PHANTOM MAX 200 4-stroke LC (PIAGGIO)
MADISON 180 4-stroke LC (PIAGGIO)
MADISON 200 4-stroke LC (PIAGGIO)
MADISON 3 125 4-stroke LC (PIAGGIO)

PIAGGIO

BEVERLY 125 4-stroke LC
BEVERLY 200 4-stroke LC
CARNABY 125 4-stroke LC euro 3 (LEADER M28FM)
CARNABY 200 4-stroke LC euro 3 (LEADER M601M)
SUPER HEXAGON GTX 125 4-stroke LC
SUPER HEXAGON GTX 180 4-stroke LC
X7 125 4-stroke LC euro 3 (LEADER)
X8 125 4-stroke LC euro 2-3 (LEADER)
X8 200 4-stroke LC
X9 125 4-stroke LC
X9 AMALFI 180 4-stroke LC
X9 200 4-stroke LC

VESPA

Granturismo L - GT - GTV 125 4-stroke LC (LEADER)
Granturismo L - GT 200 4-stroke LC (M312M)
