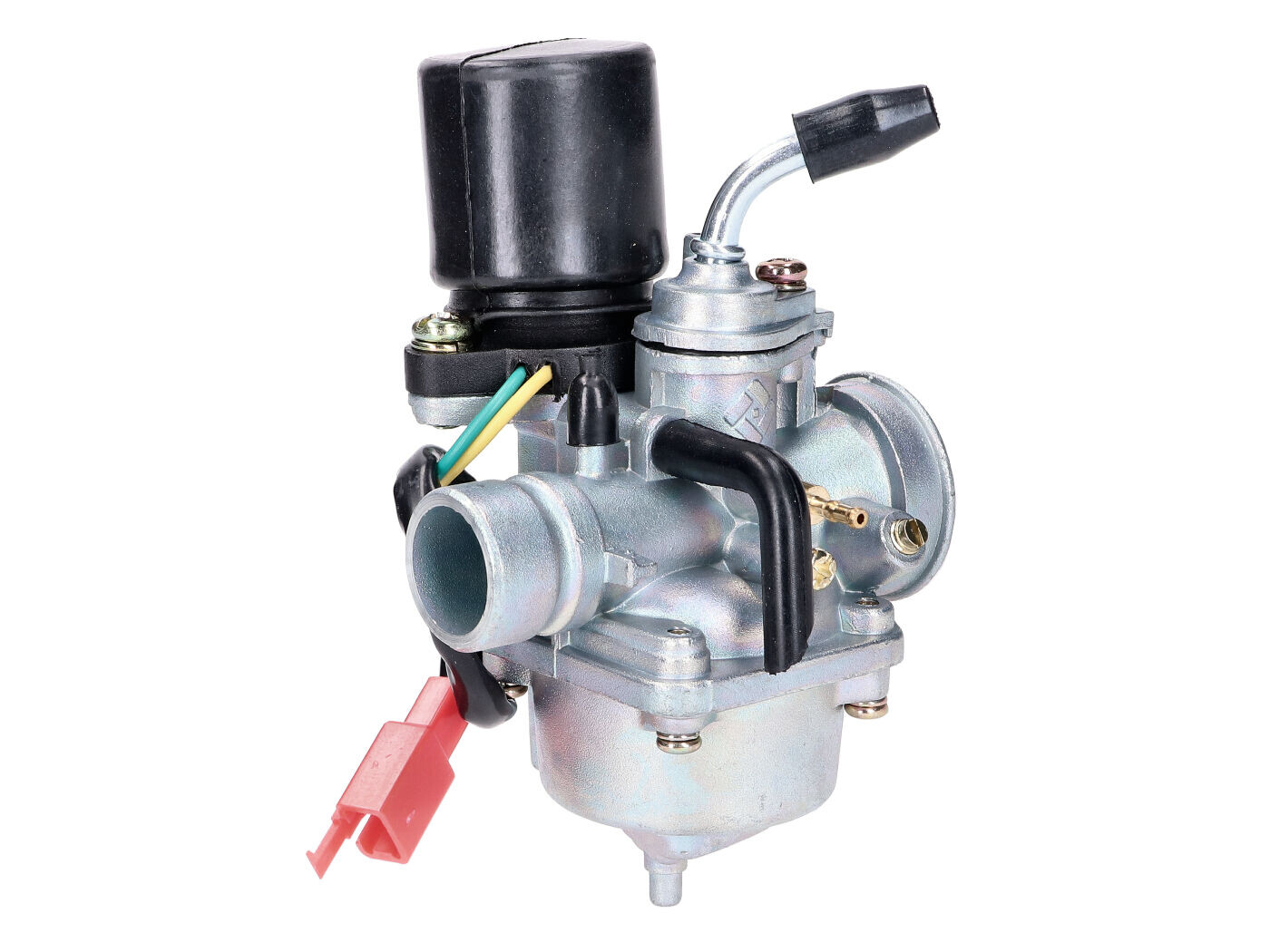

carburetor for Minarelli, CPI, Keeway, Generic, QJ 1E40QMB

Aftermarket carburettor for all 2-stroke scooters with 1E40QMB engines. Minarelli replica air-cooled. Comes with electric choke.

Note: In rare cases the plug from the e-choke does not fit (eg ATU Explorer Kalio). In this case cut the plug from the old choke and reconnect the two cables.

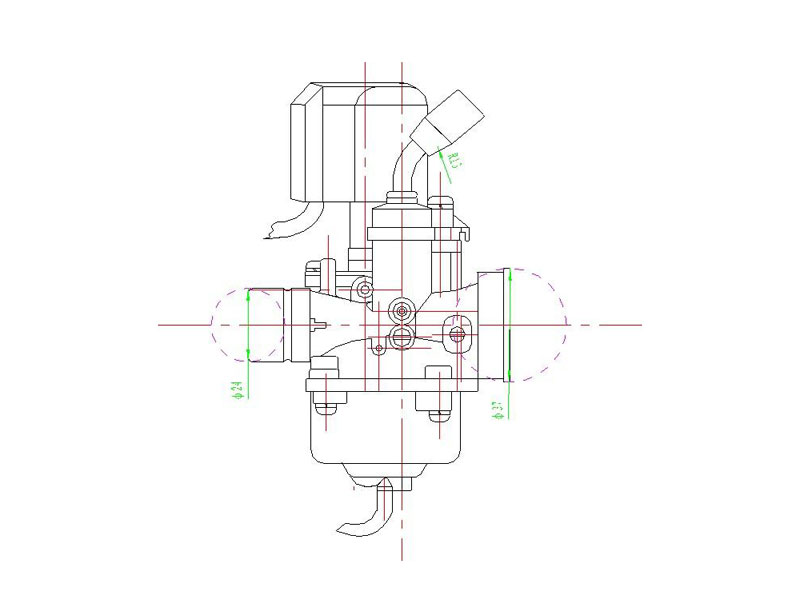

• Passage: 12mm
• Main Jet: 75 (6mm)
• Intake Manifold Connection Fitment: 24mm
• Air Filter Connection Fitment: 35mm
• 224100.108000 224100.047000 3390002A0000 224100.092000 3KJ-14301-00
