CRANKCASE GENERATOR 48-64

In stock

SKU

09200124

Special Price €2,692.00 Regular Price €3,076.00

Dispatching between 16.03.2026 and 17.03.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 84.72€, when choosing ESTO instalment as the payment method.

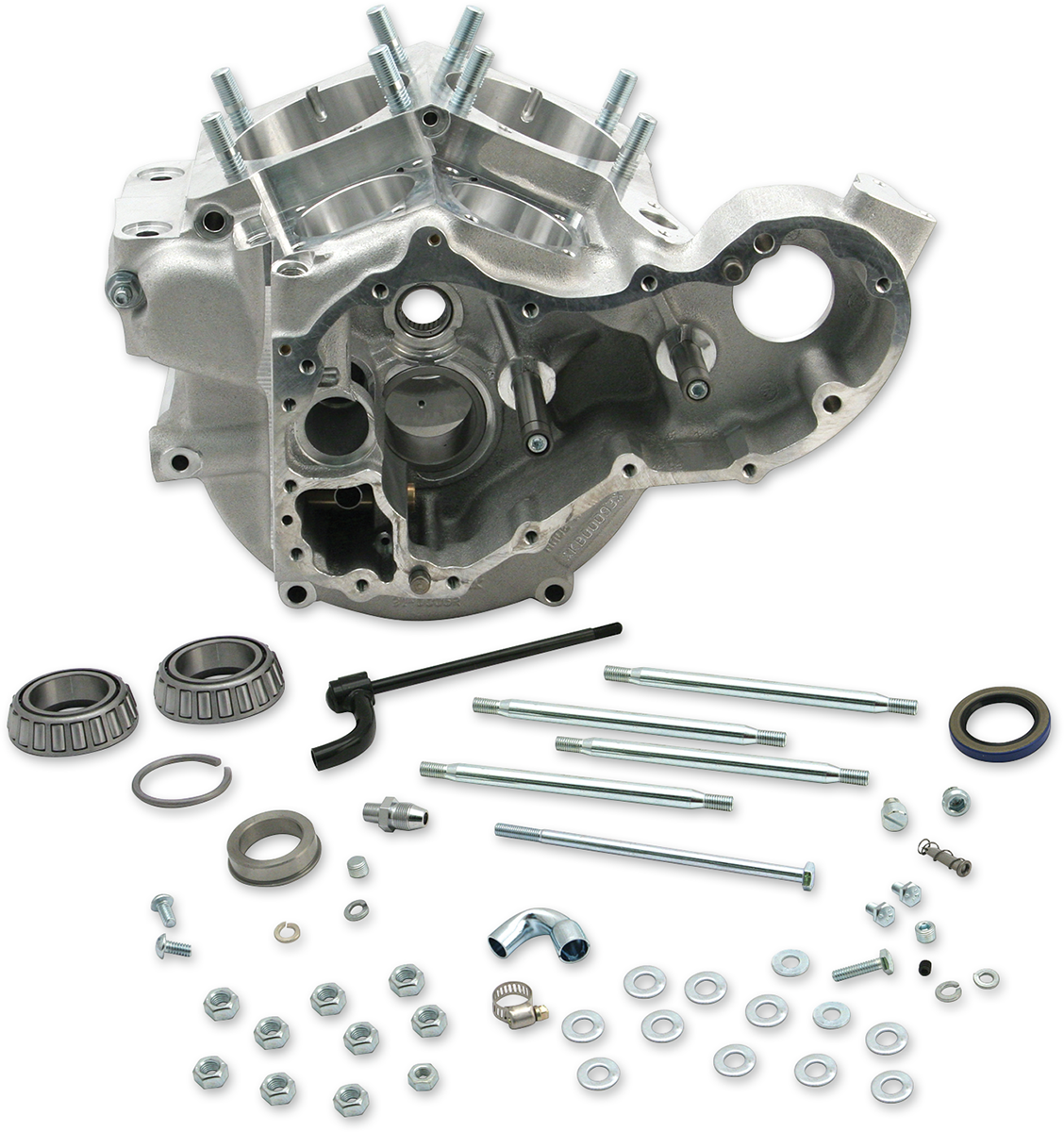

Include crankcase bolts, washers and nuts, cylinder mounting studs, timing hole plug, magnetic drain plug, assorted breather and oil line fittings, top end oil screen spring and plug, sprocket shaft Timken® bearing assembly, oil seal, pinion shaft main bearing race, cam needle bearing assembly, oil pump shaft bushings and installation instructions
Use Timken style sprocket shaft bearings and '58 and later pinion bearings (will not accept '57 and earlier flywheels)
Bearing races are all line honed and breather cavity is precision machined to optimize breather timing for maximum oil scavenging
Machined for 3.4375" cylinders and tapped 1/4"-20 for gear covers, oil pump, tappet guides, timer and timer advance
Drilled for 5/16" generator mounting bolts
'63-'65 models with outside oil lines must use oil port to the rear of the tappet block or oil port in gear cover and use custom oil lines
Made in the USA
Generator crankcase gear kit includes circuit breaker drive gear, idler gear, circuit breaker gear. Shims and shafts must be purchased separately.

Brand

S&S CYCLE

Vendor part number

31-0008

Color/Finish

Natural

Material

A356 T-6 Aluminum Alloy

Model

Super Stock®

Product Name

Engine Case
