carburetor mounting kit for plug-in and clamp fixation 23/24mm

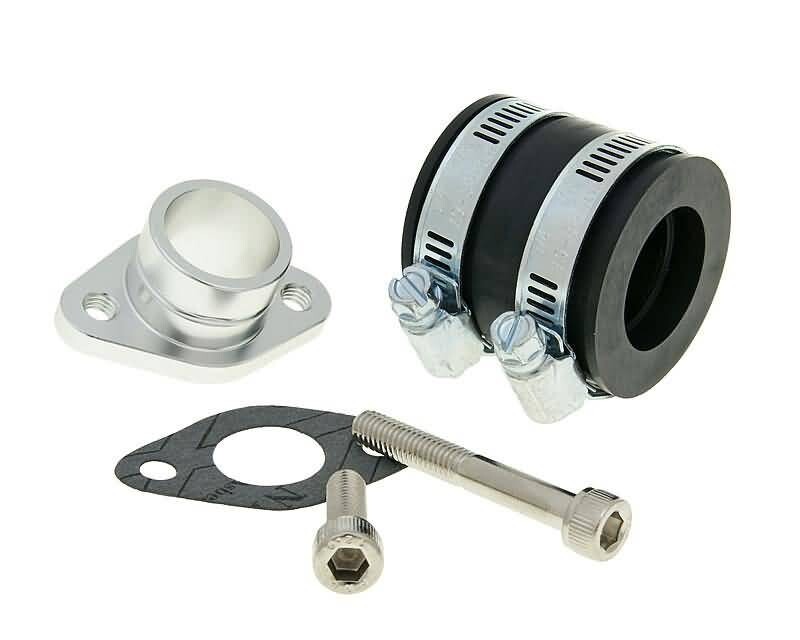

This mounting kit is required to fit 17.5mm Dellorto carburettors with slot connectors to the original inlet manifold and carburetors with clamp fixation 24mm (use without the rubber). The kit contains: adapter, connector rubber, ring clips and screws. For Kymco SF10 engines (horizontal cylinder), the Malossi mounting flange is needed in addition, as this has a larger hole spacing. The metal connector has an internal diameter of 17.5mm.

Dimension rubber:
inside diameter: 23mm
outside diameter: 40mm
length: 38mm
