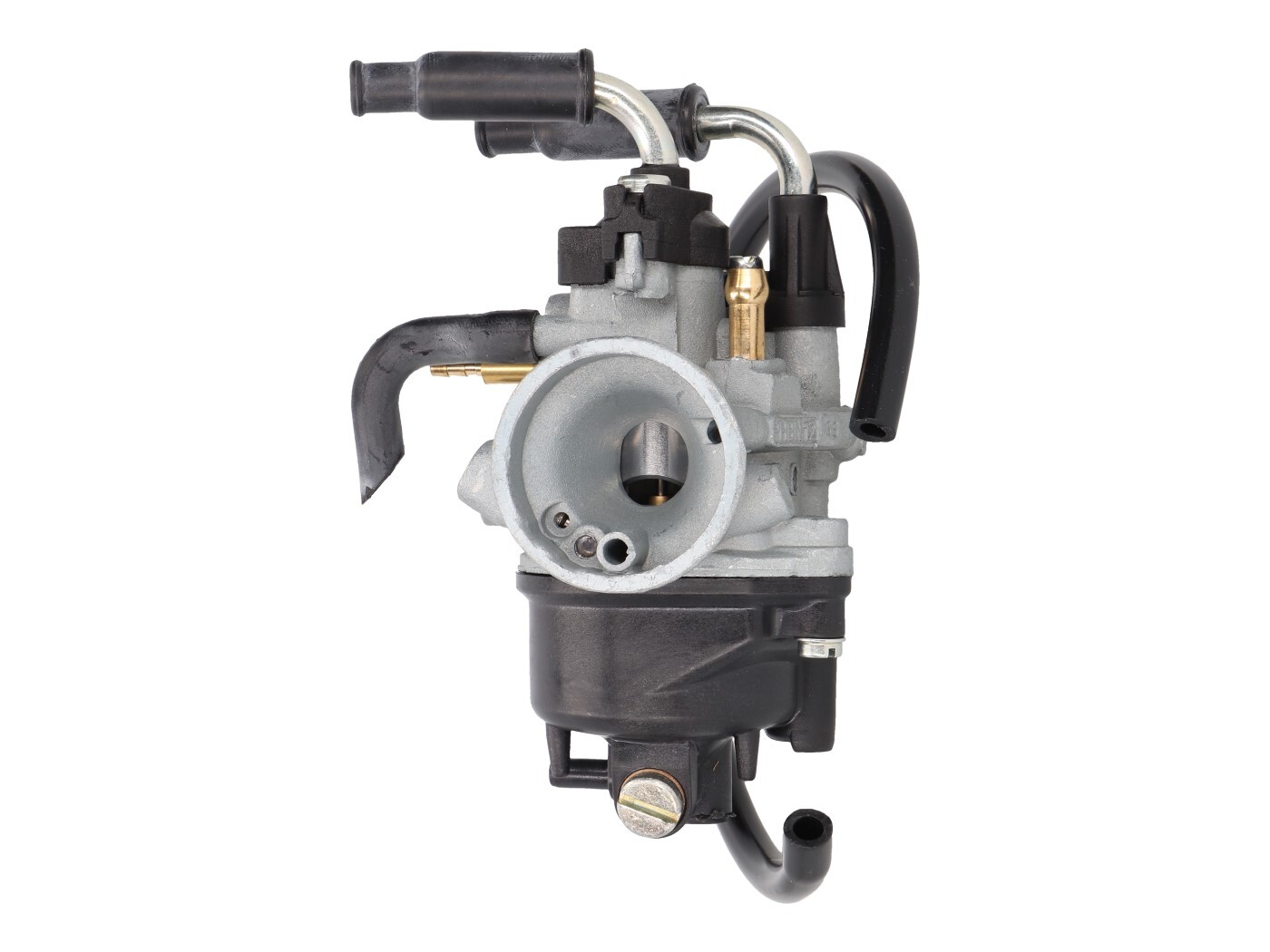

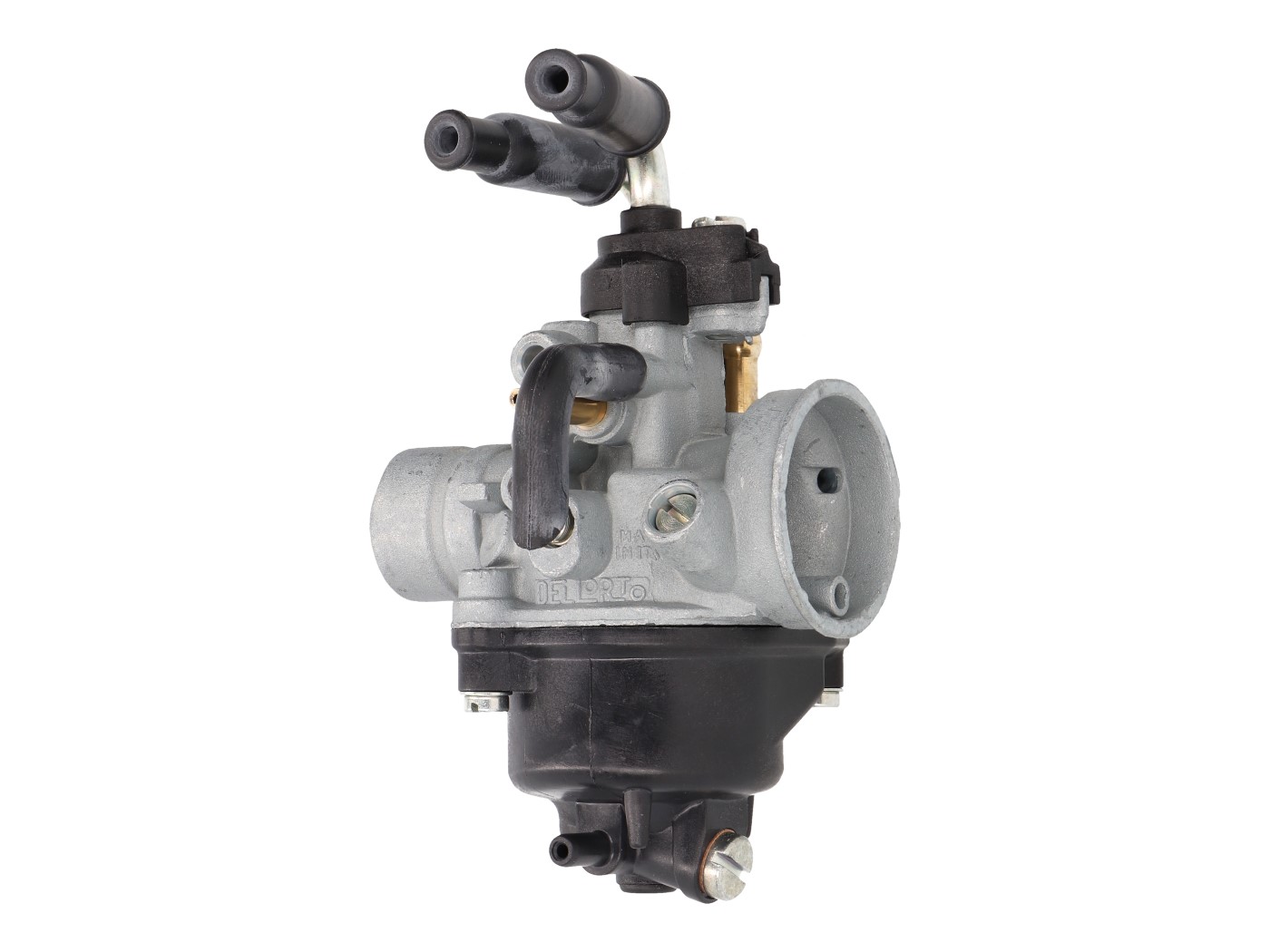

carburetor Dellorto PHBN 12 BS for Minarelli

Dellorto PHBN 12BS with Cable choke as a replacement part for a defective carburettor. The PHBN 12BS shares the carb set up with the other listed vehicles. Some variation in the jets may occur as some scooters were kitted with a catalytic convertor. For this reason, at least the main jet should be matched with the main jet in the factory carburettor. Fits the original air box and intake manifold. Perfect replacement for those who need to replace the defective OEM carburettor with a new replacement part. Choke: manual Cable choke vacuum port oil terminal connection engine: 24mm connection Air filter side: 35mm Jet: 209 GA main jet: M6 # 076 Pilot jet: M4 # 038 choke jet: M5 # 045 floats: 13700.1 carburettor slide: 30 (metal version) needle choice: A12
