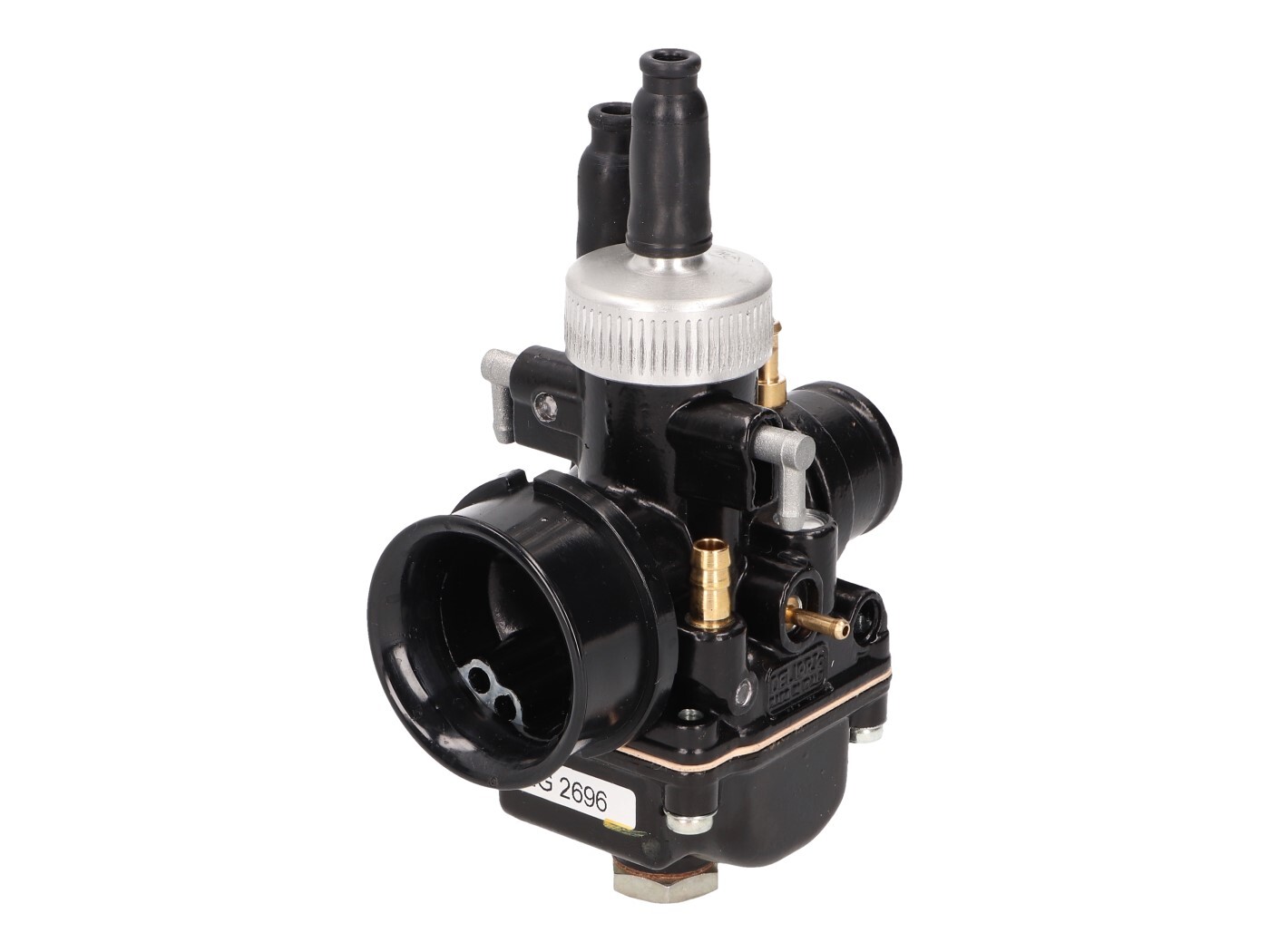

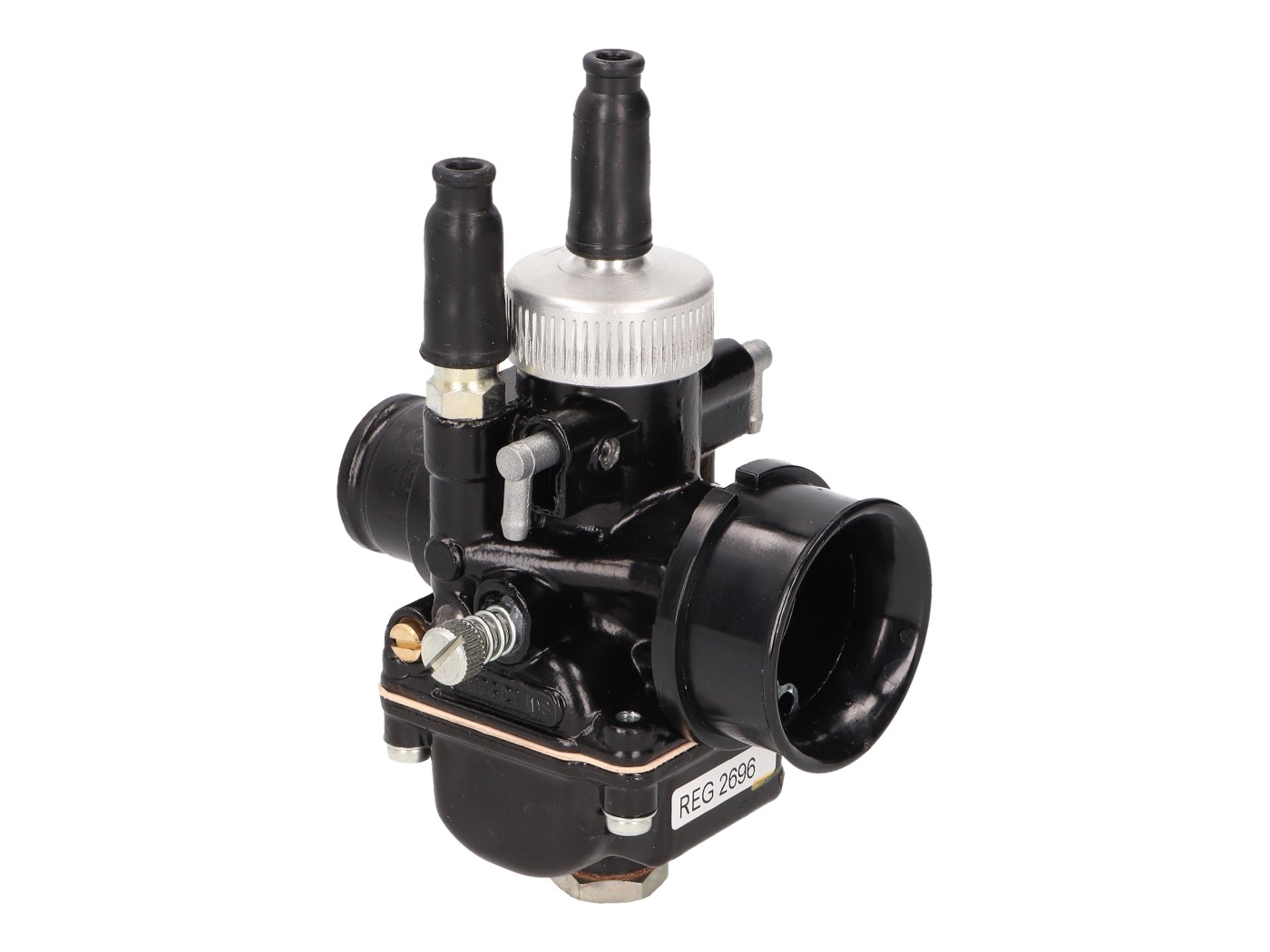

carburetor Dellorto PHBG 21 DS Racing Black Edition

Dellorto carburettor tuning PHBG 21mm Type DS BLACK EDITION. This carburettor truly earns the "Racing" name. Features a vacuum port allowing the use of separate lubrication if desired. The 21mm covers all imaginable tuning cylinders and high-end cylinders. Top quality from Dellorto that`s easy to tune.

Engine connection: 25mm, Air filter side: 32mm (without adapter) 38mm (with adapter) Choke Jet: M5 #60, Jet: 262AU, main jet: M5 # 092, Pilot jet: M5 # 050, floats: P4501 / 4.0g carburettor slide: 40 (metal version) needle choice: N7.Dellorto carburettor tuning PHBG 21mm Type DS BLACK EDITION. This carburettor truly earns the "Racing" name. Features a vacuum port allowing the use of separate lubrication if desired. The 21mm covers all imaginable tuning cylinders and high-end cylinders. Top quality from Dellorto that`s easy to tune.

Engine connection: 25mm, Air filter side: 32mm (without adapter) 38mm (with adapter) Choke Jet: M5 #60, Jet: 262AU, main jet: M5 # 092, Pilot jet: M5 # 050, floats: P4501 / 4.0g carburettor slide: 40 (metal version) needle choice: N7.
