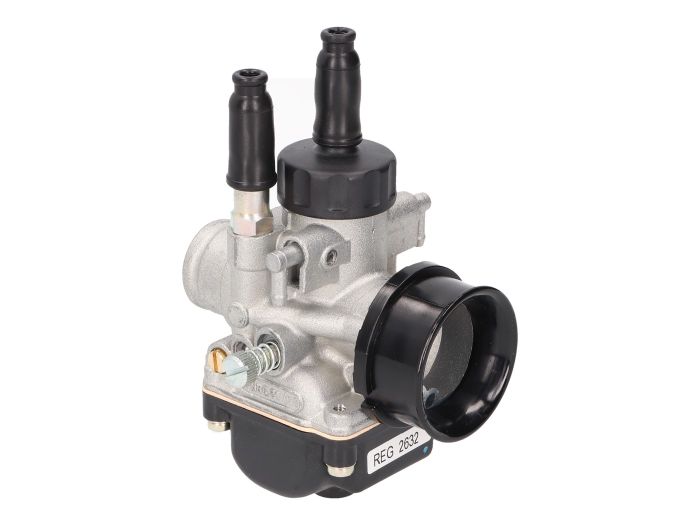

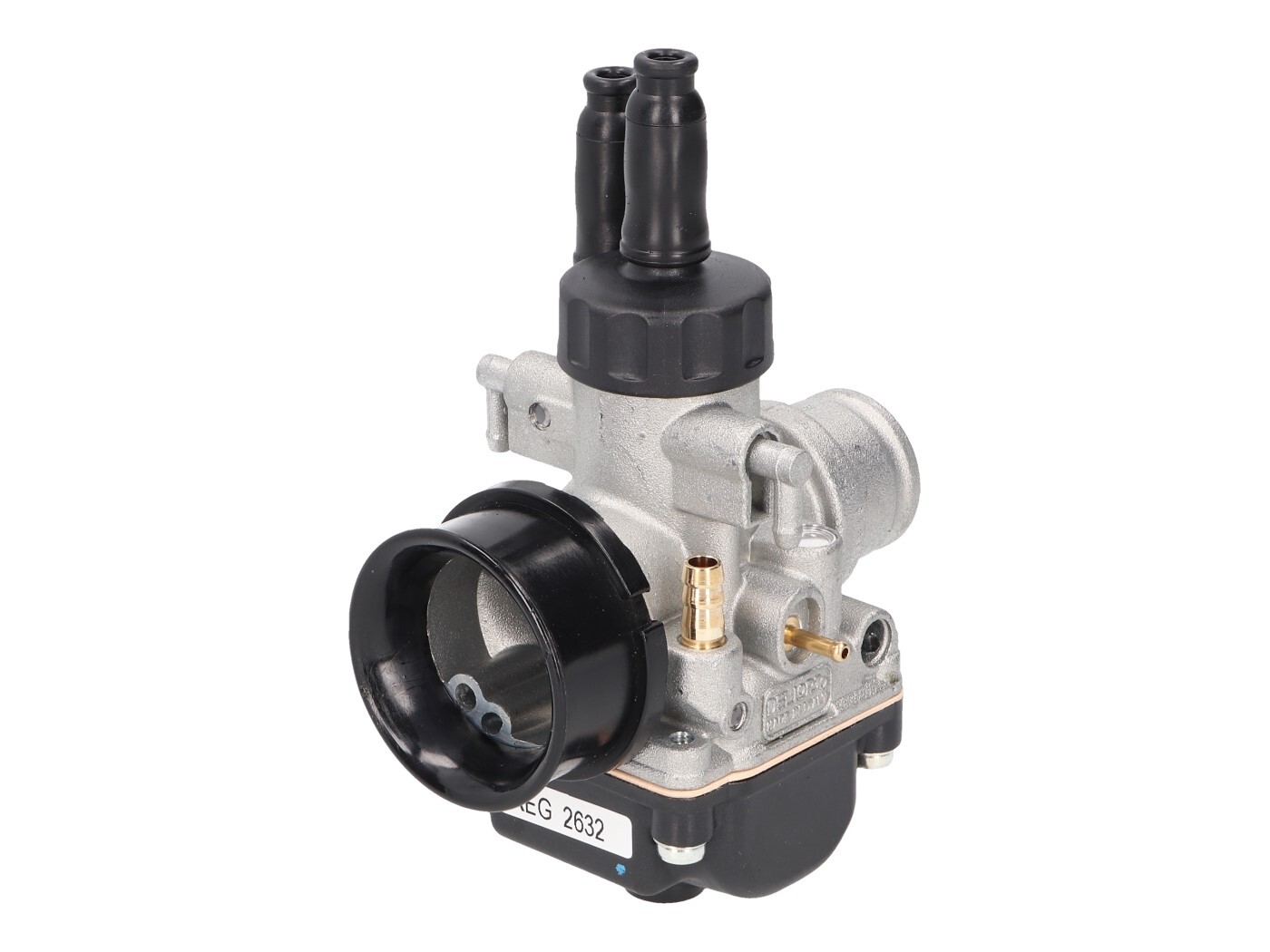

carburetor Dellorto PHBG 21 DS separate lubrication

Dellorto carburettor tuning PHBG 21mm Type DS with oil connection (without vacuum connection) for separate lubrication. This carburettor can be operated with the normal oil pump and pre-mix fuel must not be used. The 21mm covers all imaginable tuning cylinders and high-end cylinders. Top quality from Dellorto that`s easy to tune. For the air filter connector on 38mm a black adapter is included. Connection engine: 25mm connection Air filter side: 32mm (without adapter) 38mm (with adapter) Choke Jet: M5 # 60 Jet: 262AU main jet: M5 # 092 Pilot jet: M5 # 050 floats: 9450.1 / 4.0g carburettor slide: 40 (metal version) needle choice: W7 Choke type: lever pull type.
