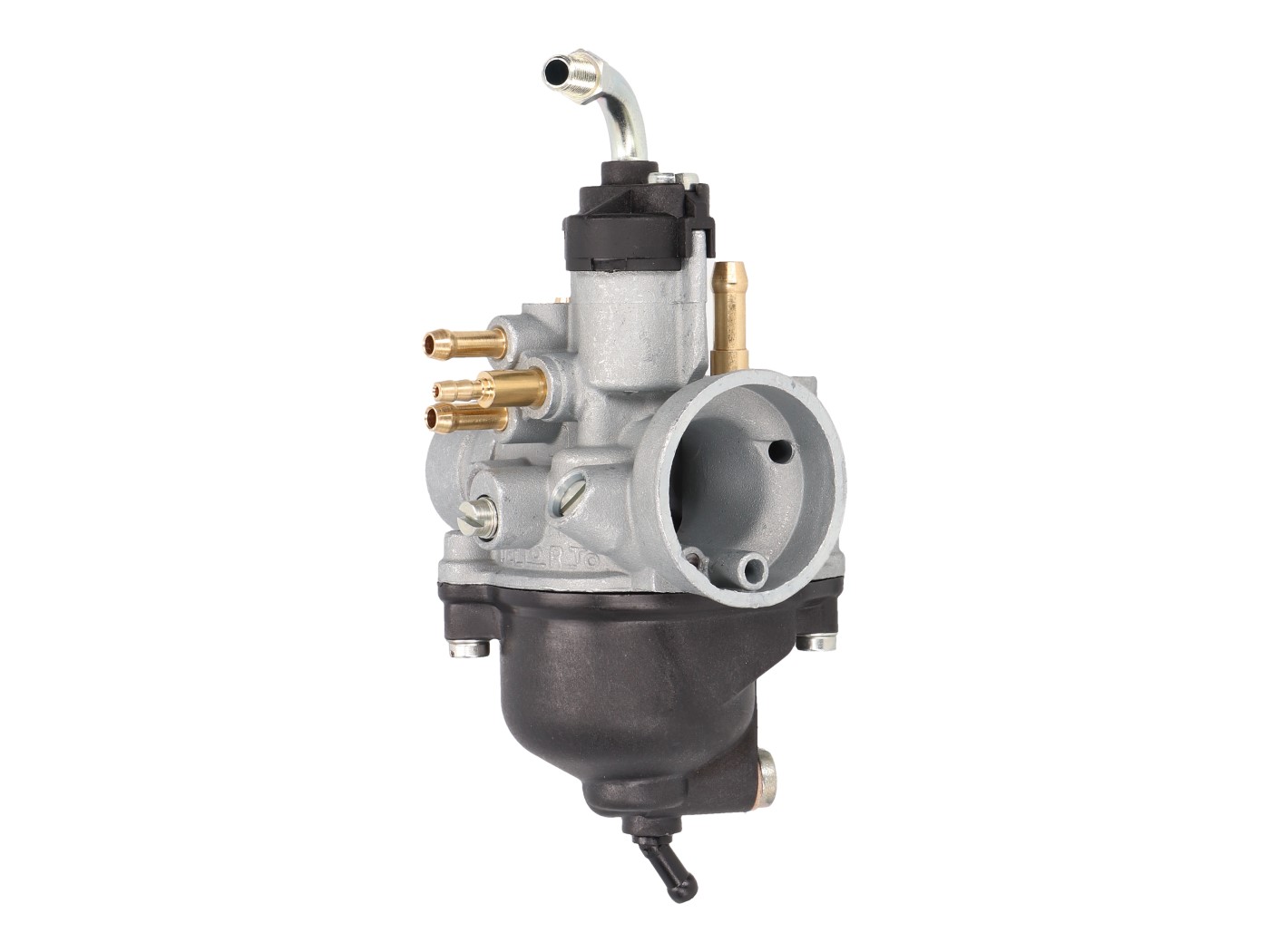

carburetor Dellorto PHVA 17.5 TS for Minarelli, Peugeot

Dellorto 17.5mm carburettor. For vehicles with Minarelli or Minarelli-based engines or Peugeot horizontal engines. Recommended even for untuned engines, as the carburettor is easier to tune than the original. Flat spots and idling problems become a thing of the past. An absolute must for 70cc cylinder kits! Only the correct size carburettor can ensure the required cylinder cooling, which avoids expensive damaged to the bore. The carburettor is prepped for the original E-choke. The original air box can also be retained. IMPORTANT: The original E-choke from Keeway, CPI, Generic and Minarelli-based 2-stroke scooters that are Chinese-built are not suitable. Please order Dellorto choke or Naraku E-choke NK200.05.

Main Jet: 80 (6mm)
Idle Jet: 38
Needle: A20
Intake Manifold Connection Fitment: 24mm
Air Filter Connection Fitment: 35mm Type: PHVA 17.5 TS
