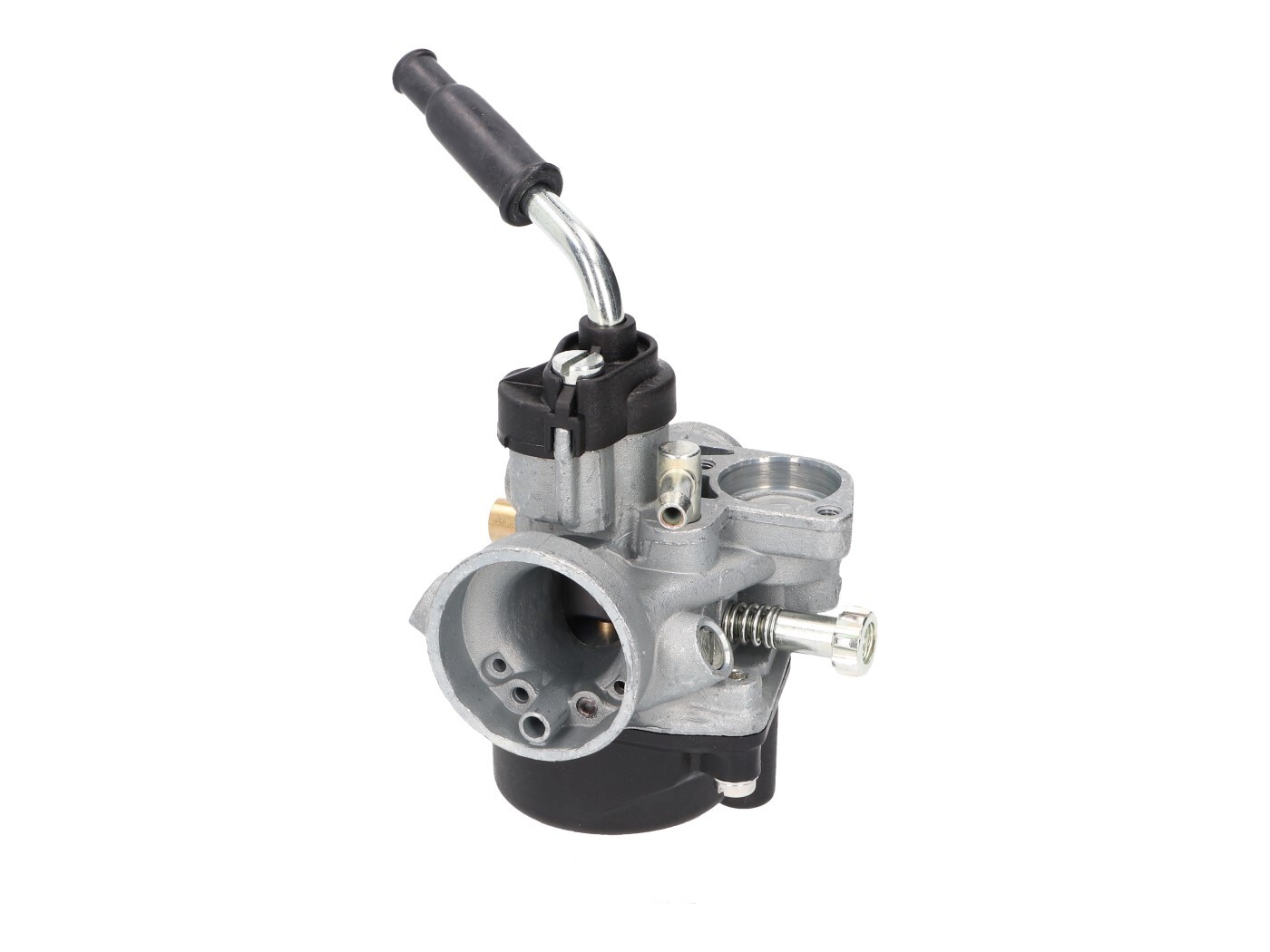

carburetor Dellorto PHVA 17.5 ED for Piaggio

Replacement spare part for all models they are factory equipped with a 17.5mm carburetor. Easy and no trouble to install.

Can be used as a tuning carburetor for models equipped with a stock 12mm carb. In that case it's necessary to install an "open" intake manifold as well.

The carburettor is prepped for the original choke which can purchased separately (SKU NK200.05). The original air box can also be retained.

This carburettor uses Dellorto main jets with an M6 thread.

Main Jet: 65 (6mm)
Idle Jet: 34
Throttle Needle: A7
Intake Manifold Connection Fitment: 24mm
Air Filter Connection Fitment: 35mm
Type: PHVA 17.5 ED
