cylinder kit Athena 120cc Ø55mm for Honda MBX80 / MTX80 2T LC

Athena cylinder kit with a displacement expansion to 120cc with 55mm bore (diameter) suitable for Honda MBX80, MTX80 LC.

On the outside, the cylinder corresponds to the original in size and shape with diaphragm box, outlet and cooling water connection, but work is still necessary on the crankcase to be able to mount this cylinder.

Technical specifications:

Cylinder: aluminium, coated

Cooling: water-cooled

Bore: 55mm (diameter)

Piston pin diameter: 12mm

Number of transfer ports: 6

Piston base shape: domed

Number of piston rings: 2

Thickness of piston rings: 1.5mm, chromed

Outlet: 1x oval

Cylinder head: Not included!

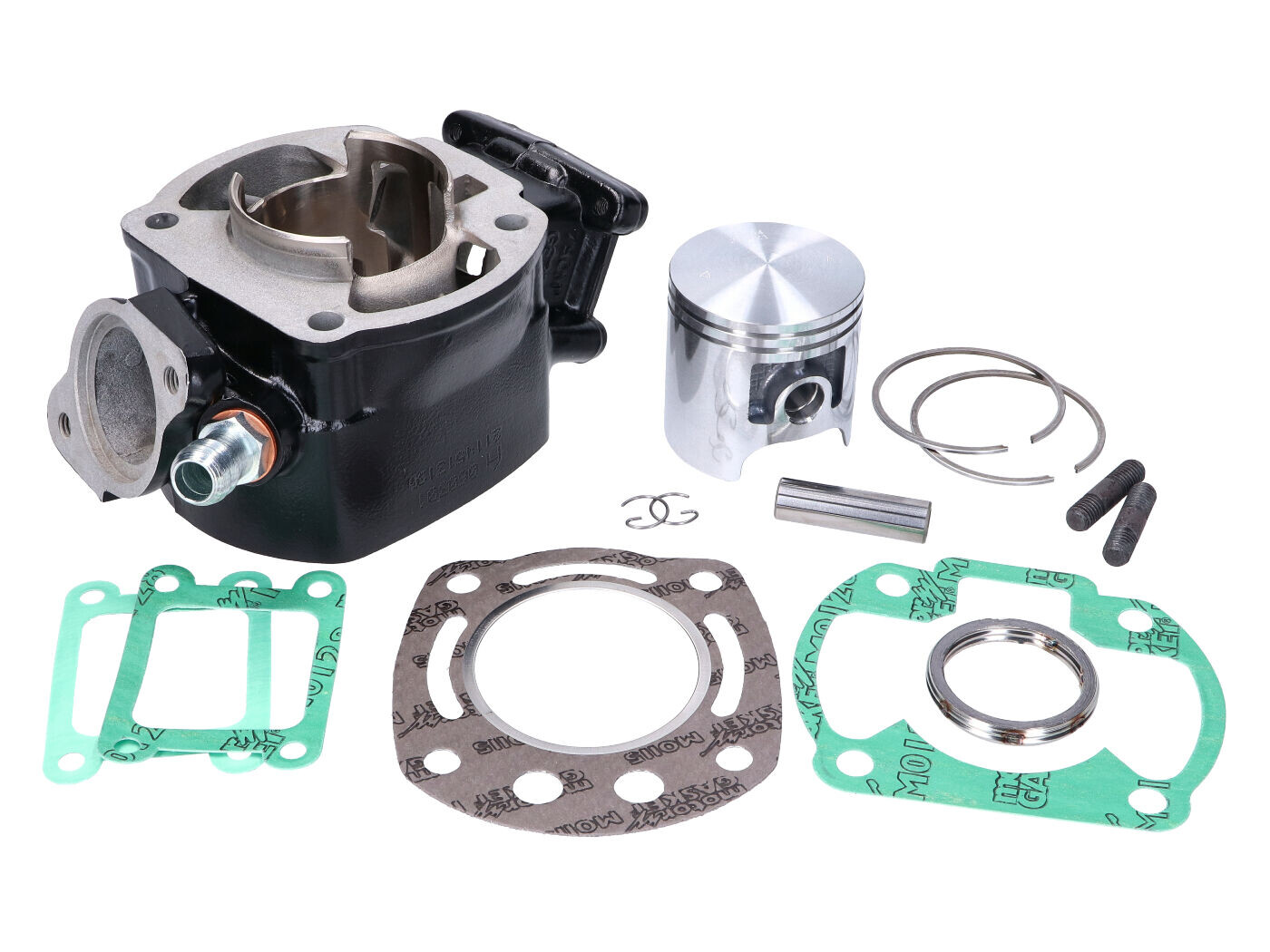

Scope of delivery as shown on the product picture incl. gaskets, small parts, piston, gudgeon pin.
