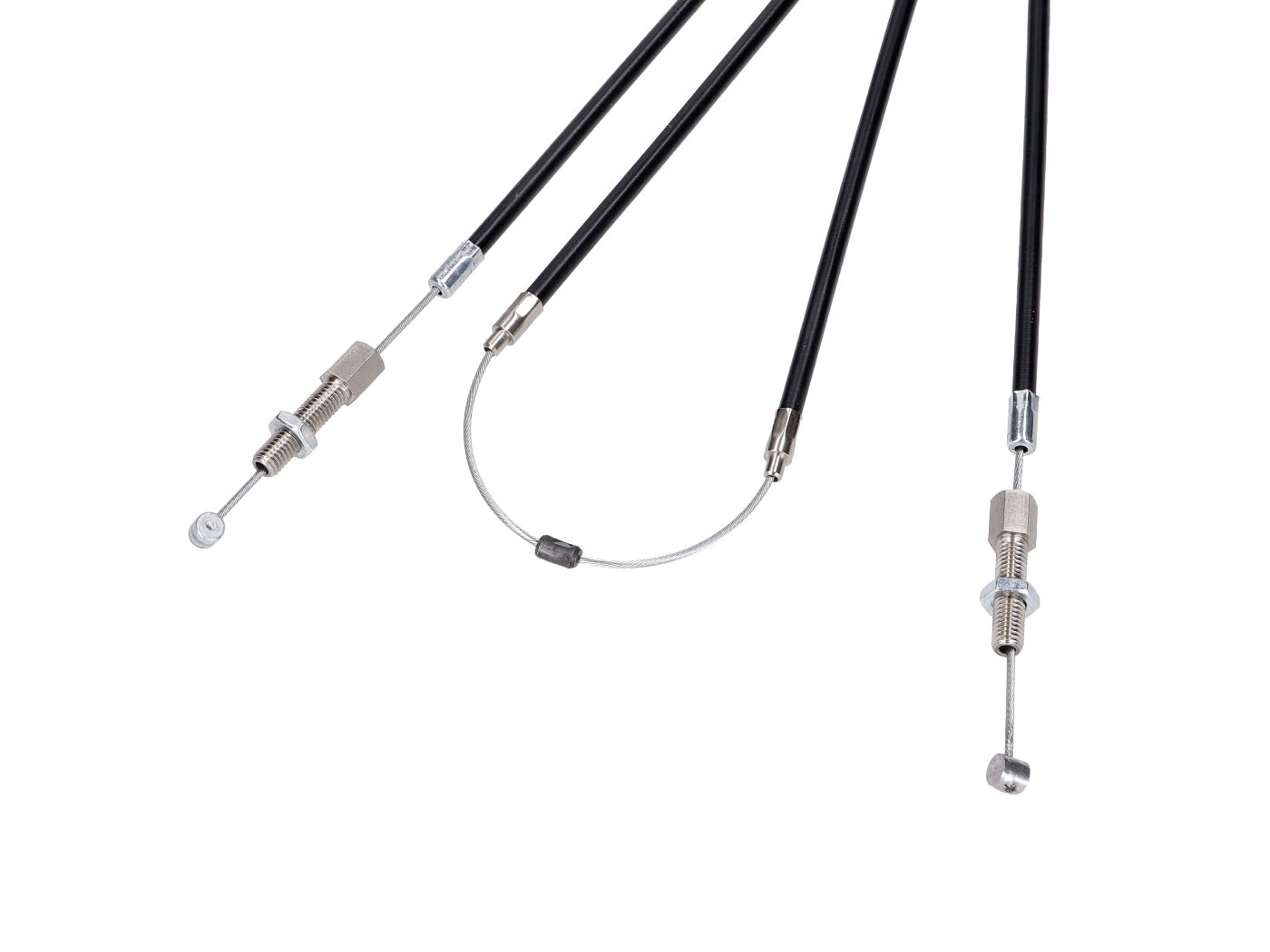

gear shift cable Schmitt Premium for Puch VS50D, DS 50 3-speed w/ Magura shift lever

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

This gearshift cable is suitable for Puch DS50 3-speed or VS50D with Magura gearshift lever. OEM number for comparison purposes only: 910.6.04.003.2

Dimensions:

Overall length: 258.5cm

Sheath length (incl. caps): 115.5cm / 116.5cm

Stranded wire diameter: 1.7mm

Sheath diameter: 5mm

Nipple diameter, cylindrical: 6mm

Nipple length, cylindrical: 6mm

Middle bush length: 8mm; Width: 6mm

Inner end cap length: 15mm

Inner end cap diameter: 4-6mm

Outer end cap length: 12mm

Outer end cap diameter: 6mm

Nut: M6

Thread length: 21mm
