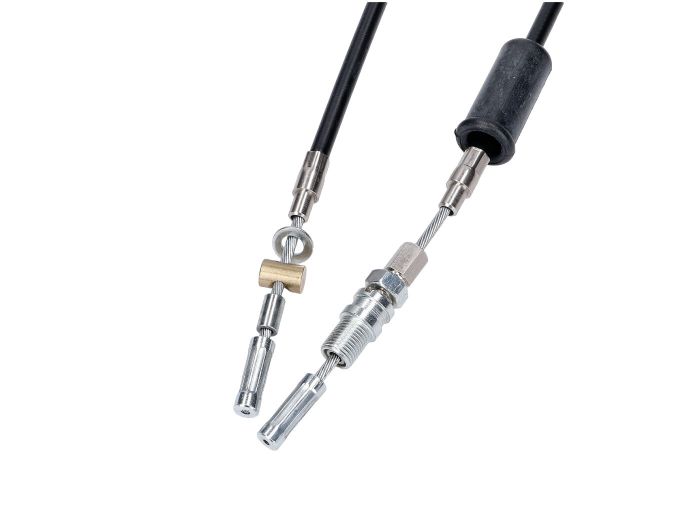

rear brake cable Schmitt Premium for Puch MS 50, VS 50 Tour

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

OEM number for comparison purposes only: 910.8.08.002.2

Dimensions:

Overall length: 56cm

Sheath length (incl. caps): 40.5cm

Stranded wire diameter: 3mm

Sheath diameter: 6mm

End cap length: 21.5mm

End cap diameter: 6-8mm

Rubber cap length: 39mm

Rubber cap diameter: 16-18mm outside, 11mm inside

Threaded bolt length (w/ hexagonal adjusting screw): 40mm

Thread length: 29mm

Nut: M7

Adjustment bush length: 21.5mm

Diameter: 9.8mm / 10.5mm / 12mm

Slot: 1.9mm

Washer outer diameter: 12mm

Nipple attachment diameter: 8mm, Width: 12mm

Bushing diameter: 6mm, Length: 10.7mm
