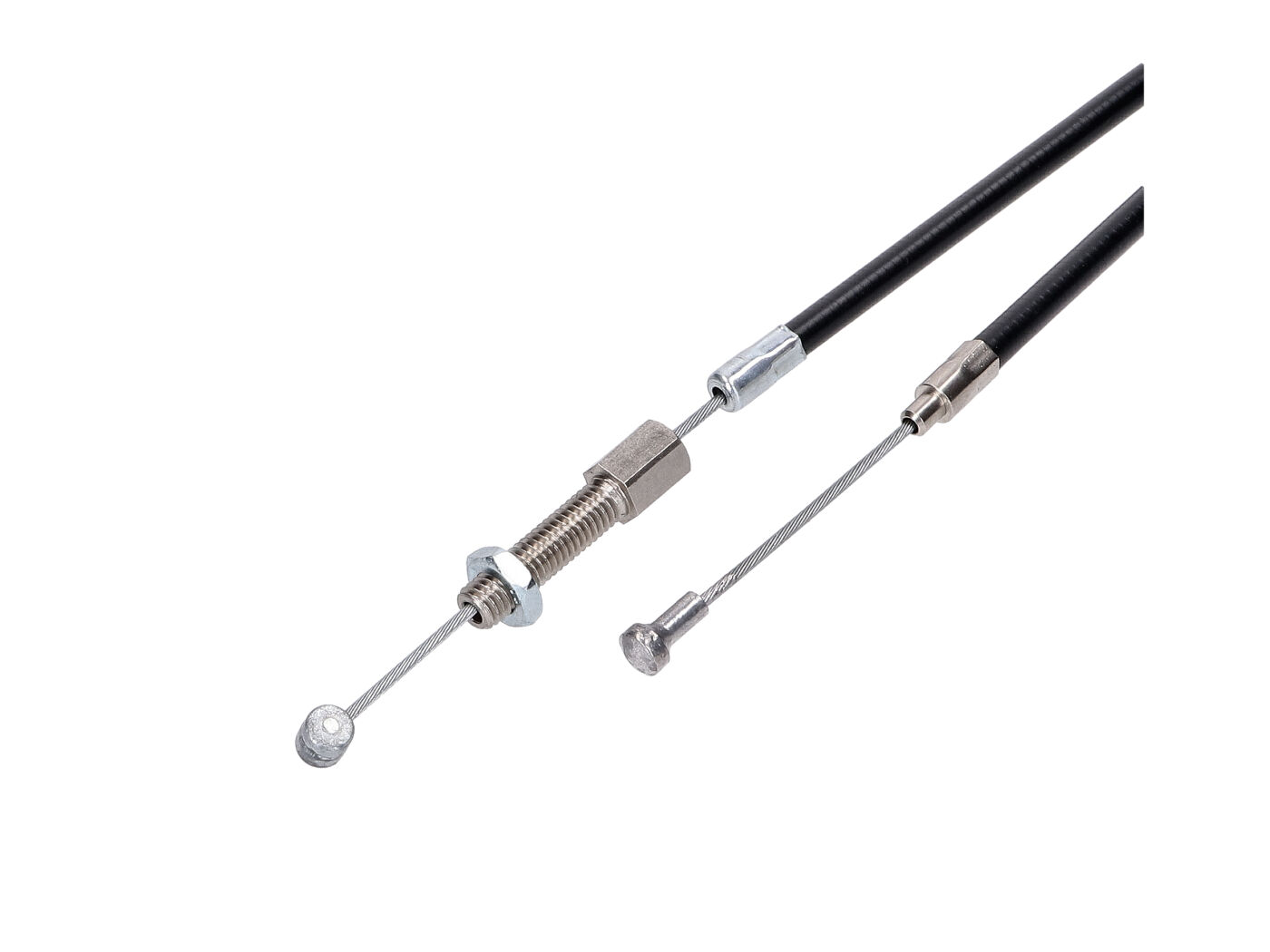

gear shift cable Schmitt Premium for Puch MV50 1-speed, MS50, VS50 2-speed Magura

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

This Schmitt gearshift cable fits Puch MV50 1-speed as well as MS50 and VS50 2-speed with Magura gearshift lever. OEM number for comparison purposes only: 910.6.06.003.2

Dimensions:

Overall length: 120.5cm

Stranded wire diameter: 1.5mm

Sheath length (incl. caps): 108cm

Sheath diameter: 5mm

Nut: M6

Thread length: 22mm

Threaded bolt length (with hexagonal adjusting screw): 34mm

End cap length: 12mm

End cap diameter: 6mm

End cap length, graded type: 15mm

End cap diameter, graded type: 4-6mm

Nipple diameter, cylindrical: 6mm

Nipple length, cylindrical: 6mm

Graded nipple diameter, ball: 6mm head, 3.5mm stem

Graded nipple length, ball: 11mm
