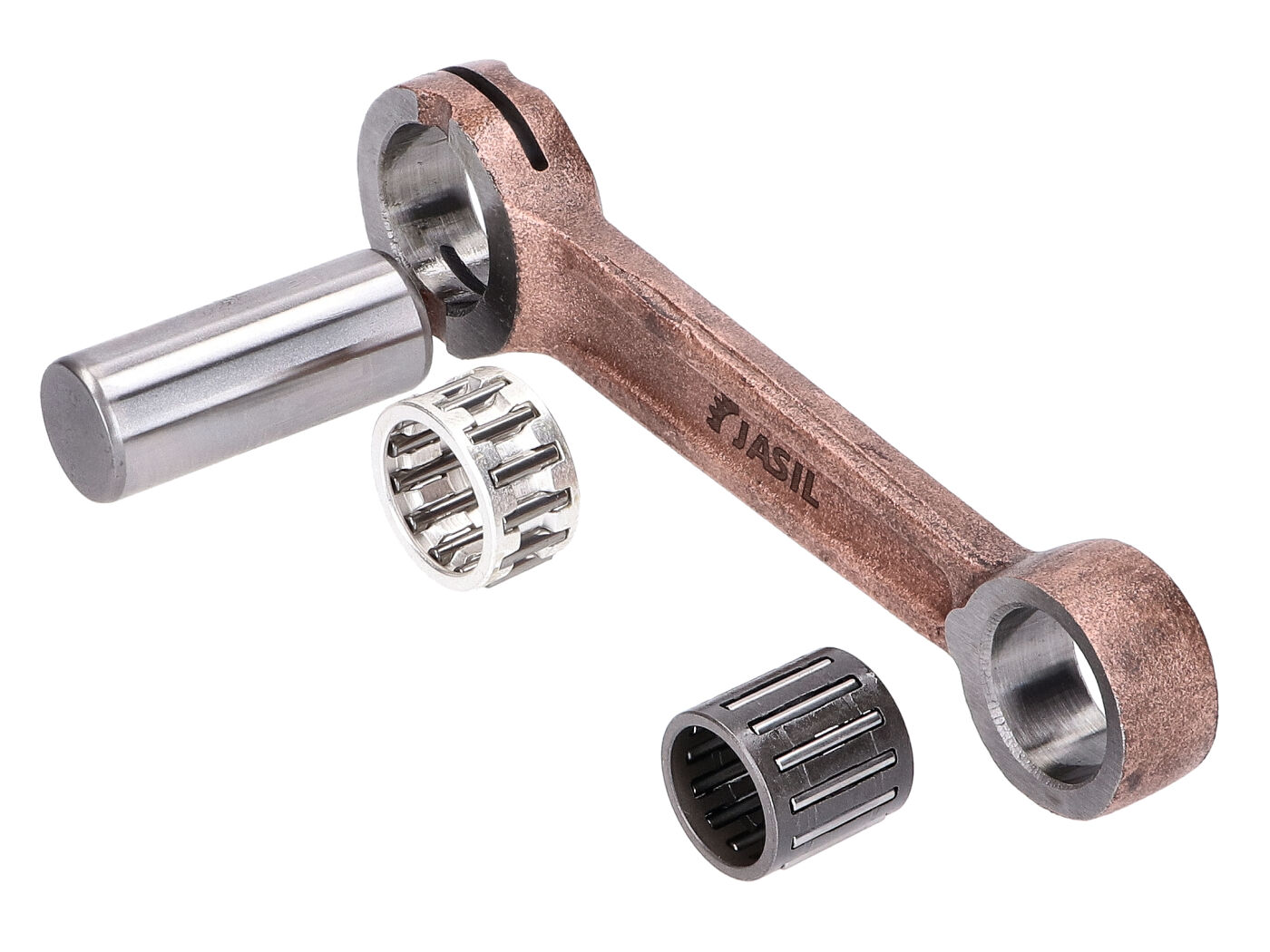

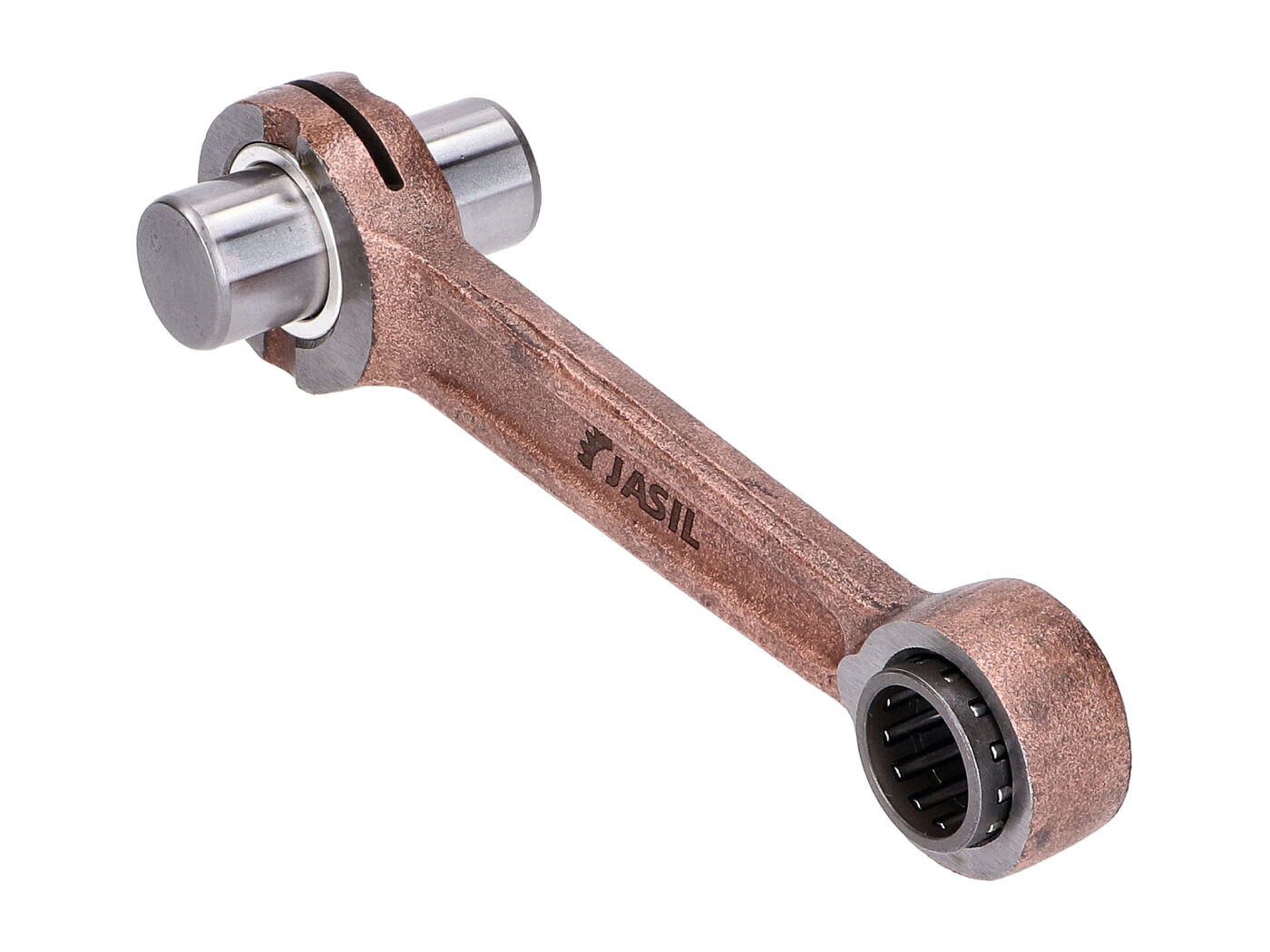

connecting rod repair kit Top Racing 12mm piston pin for Puch

High quality Top Racing connecting rod repair kit for crankshaft with 12mm gudgeon pin suitable for all Puch engines.

Dimensions:

• Conrod bolt dimension: Ø14 x 34mm
• Conrod length (centre to centre): 90mm
• Conrod overall length: 114.5mm
• Thickness: 10mm
• Lower conrod eye outer diameter: 24.6mm
• Upper conrod eye outer diameter: 20.9mm
• Lower needle bearing (silver cage): Ø18 / 14 x 9.75mm
• Upper needle bearing: Ø15 / 12 x 14.7mm

Scope of delivery as shown on the product picture. A conrod repair set is delivered.
