carburetor flange intake manifold gasket for Puch Maxi, Maxi S/ N, Supermaxi LG1/ LG2, X30 Sport NS/ NL, MS50S, VZ50 4-speed

Angular type gasket for the inlet at the carburettor flange suitable for Puch Maxi, Maxi S/ N, Supermaxi LG1/ LG2, X30 Sport NS/ NL, MS50S, VZ50 4-speed.

• Height: 26mm
• Length: 55mm
• Hole spacing: 39mm
• Bolt diameter: 6mm
• Internal diameter: 22.5x14mm
• Material thickness: 0.25mm

OEM no. for comparison purposes only: 349.1.15.021.1

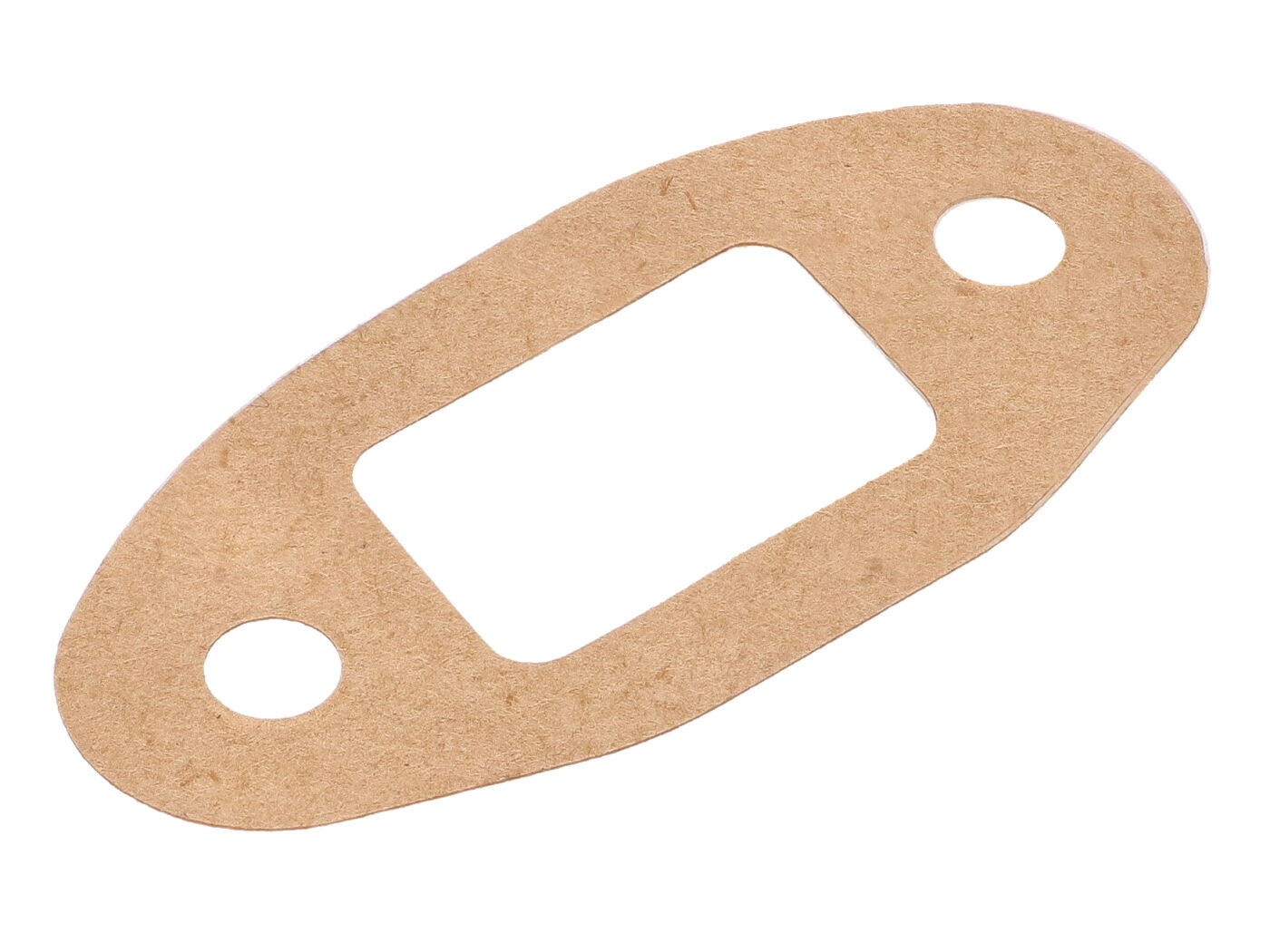

Scope of delivery as shown on the product picture. A single carburettor flange intake manifold gasket is supplied.
