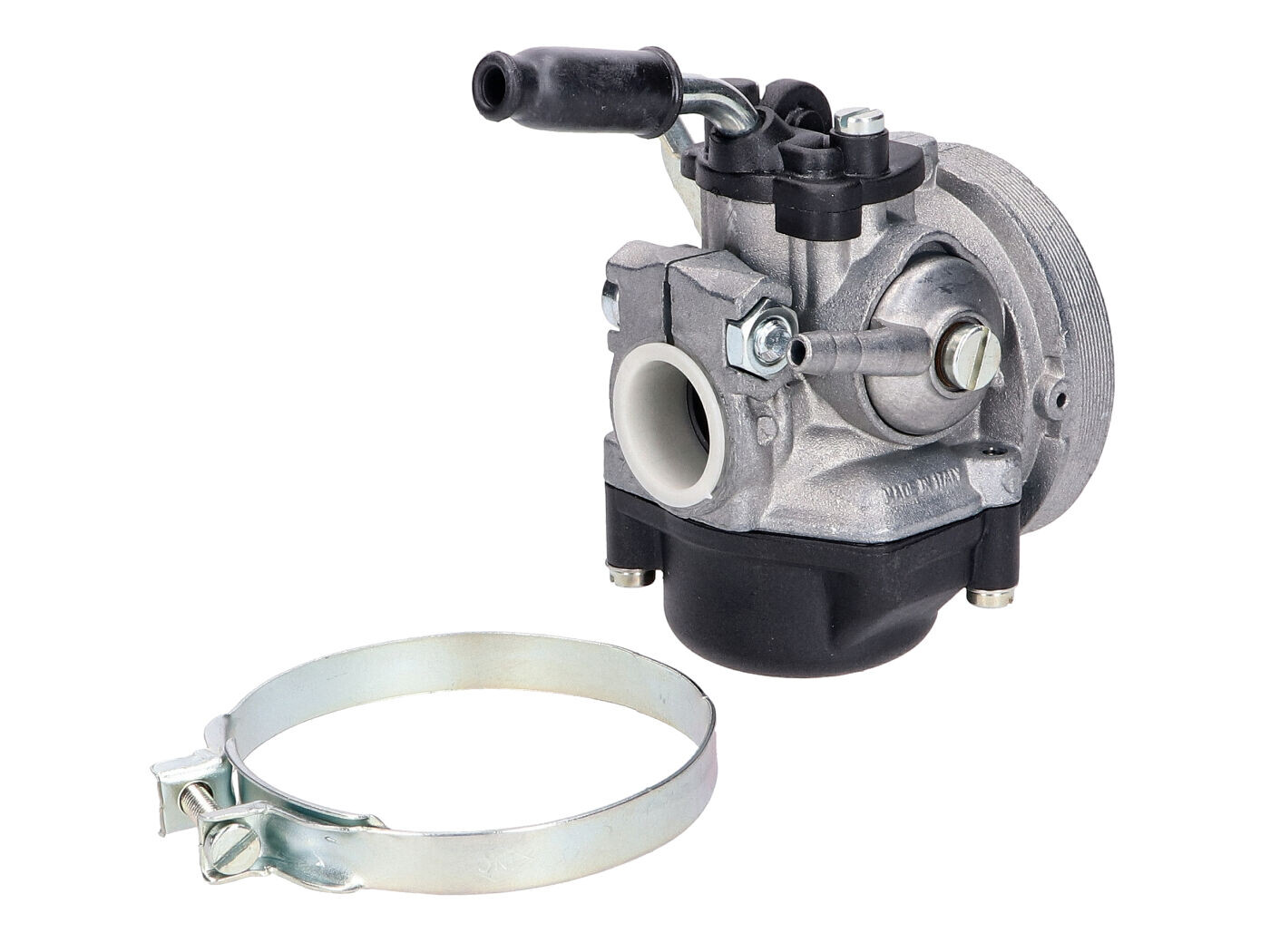

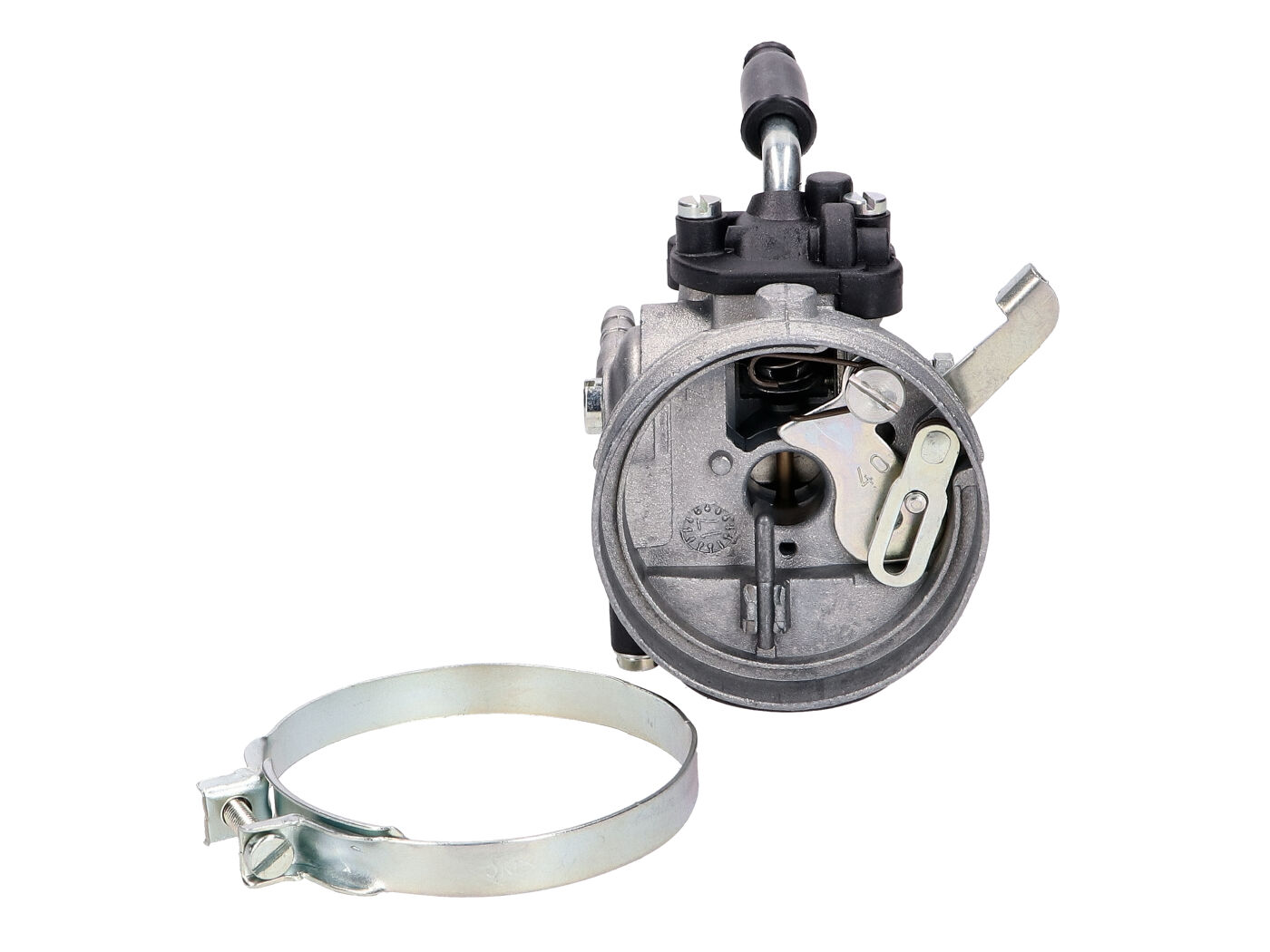

carburetor Dellorto SHA 14/12 P clamp fixation for moped

Dellorto tuning carburettor with clamping flange SHA 14-12 P suitable for moped tuning from 50cc to 70cc capacity. The carburettor has a very compact design and an angled throttle cable connection: optimal for little space. The short intake path is a performance bonus for high revving engines. The manually operated choke engages by pressing down and is only by actuating the throttle cable (full throttle) back to the original position.

Technical data:

Clamping flange: 18mm or 21mm (without reducing bushing)

Carburettor passage: 14mm

Air filter connection: 52.5mm

Main jet: 53, M5

Choke: direct operation via lever

Delivery does not include air filter.

OEM number for comparison purposes only: Dellorto 02277
