cylinder kit MVT Iron Max 50cc for Derbi D50B0

Be the first to review this product

In stock

SKU

RPMVT-IM2

Special Price €140.00 Regular Price €175.00

Dispatching between 01.04.2026 and 06.04.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 7.04€, when choosing ESTO instalment as the payment method.

Details

The MVT Iron Max cylinder kit with 50cc displacement is a powerful alternative to comparable replacement cylinders. This cast iron cylinder with the striking red painted aluminum cylinder head and double ring pistons is in no way inferior to the original replacement in terms of average mileage. With the EC1 exhaust system recommended by MVT or a comparable sports exhaust, a significant increase in performance is achieved.

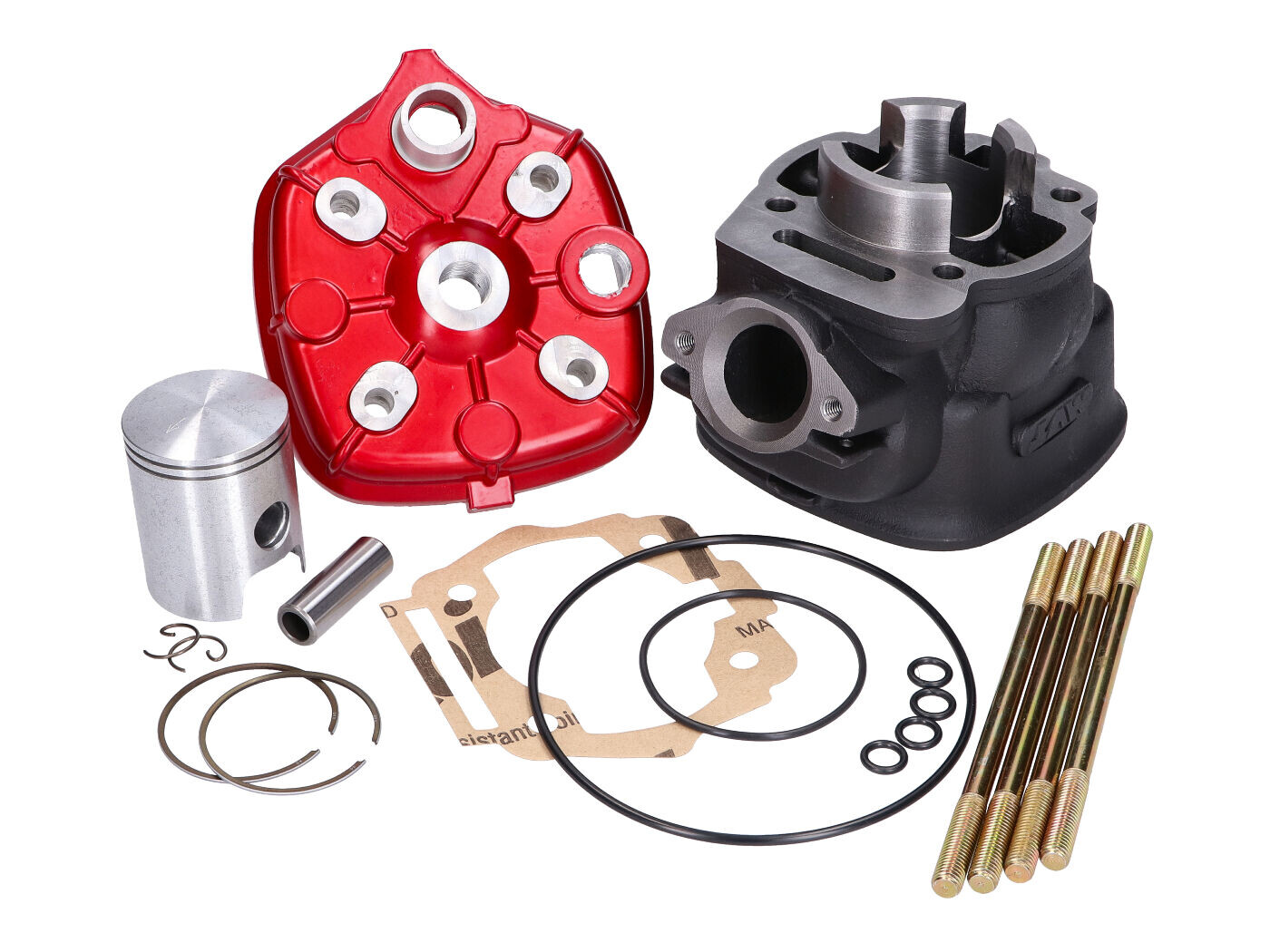

Scope of delivery:

1x cast iron cylinder
1x aluminum cylinder head
1x 2-ring piston
2x piston rings
1x piston pin 12mm
1x gasket set

Technical data:

Stroke: Original
Bore: 40mm
Displacement: 50cc

Note: The D50B0 engine Euro4 uses a different threaded hole for the temperature sensor in all cylinder heads Derbi Senda, Aprilia RX/SX and Gilera RCR/SMT from model year 2018. To be able to fit this cylinder kit on models from model year 2018- onwards, the adapter NK103.78 must be ordered additionally. Models built up to 2017 do not require this.

More Information

More Information
Weight	2.570000
Barcode EAN13	4057237634634
Height	0
Width	0
Brand	MVT ALLUMAGE
Lenght	0
Availability	In the central warehouse
Fits on engine	50cc Derbi D50B0 (vesi)
Supplier reference	MVT-IM2
Outlet	No
Ships in	4-7 business days
Campains	Hinnagarantii
Fitment chart (old)	<!-- algus kataloog 2 --> <b>Kataloog 2 sobivused:</b><br><table><tr><th><b>Tootja</b></th><th><b>Mudel</b></th></tr><tr><td>Aprilia</td><td>RS 50 06-10 (D50B) ZD4PL / ZD4RG</td></tr><tr><td>Aprilia</td><td>RS4 50 11-13 (D50B) ZD4TK000 / ZD4VX</td></tr><tr><td>Aprilia</td><td>RS4 50 14-17 (D50B) ZD4TK0008 / ZD4TK0000 / ZD4VX</td></tr><tr><td>Aprilia</td><td>RS4 50 18- E4 (D50B) [ZD4KRA00]</td></tr><tr><td>Aprilia</td><td>RX 50 06-10 (D50B) ZD4PVA</td></tr><tr><td>Aprilia</td><td>RX 50 11 (D50B) ZD4PVH01</td></tr><tr><td>Aprilia</td><td>RX 50 11-13 (D50B) [ZD4PVG01/ H01/ L01/ M01/ SWA]</td></tr><tr><td>Aprilia</td><td>RX 50 14-17 (D50B) ZD4PVH01</td></tr><tr><td>Aprilia</td><td>RX 50 18- E4 (D50B) ZD4KKA0</td></tr><tr><td>Aprilia</td><td>RX 50 Factory 18-20 E4 (D50B) ZD4KKA01</td></tr><tr><td>Aprilia</td><td>SX 50 11 (D50B) ZD4PVG01</td></tr><tr><td>Aprilia</td><td>SX 50 11-13 (D50B) [ZD4PVG01/ H01/ L01/ M01/ SWA]</td></tr><tr><td>Aprilia</td><td>SX 50 14-17 (D50B) [ZD4PVG01/ ZD4SWA00]</td></tr><tr><td>Aprilia</td><td>SX 50 18-20 E4 (D50B) ZD4KKB01</td></tr><tr><td>Aprilia</td><td>SX 50 Factory 18-20 E4 (D50B) ZD4KKB03</td></tr><tr><td>Aprilia</td><td>SX 50 Limited Edition 2014- (D50B) ZD4PV</td></tr><tr><td>Aprilia</td><td>SX 50 Low Seat 2019-2020 E4 (D50B) [ZD4KKB06]</td></tr><tr><td>Derbi</td><td>GPR 50 2T 09-12 (D50B) [VTHRF1A1A]</td></tr><tr><td>Derbi</td><td>GPR 50 2T 10- E2 Switzerland (D50B)</td></tr><tr><td>Derbi</td><td>GPR 50 2T 13- (D50B) [ZDPVXA00]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Nude 06-08 E2 (D50B) [VTHGR1D1B]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Racing 06- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Replica 06- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Replica Espargaro 08- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Replica Malossi 07- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>GPR 50 2T Replica Pesek 07- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>GPR 50 R 2T 08- E2 (D50B) [VTHGR1D1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R DRD Pro 05-11 (D50B) [VTHSA1A1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R DRD Racing 05-08 E2 (D50B) [VTHSR1D2B]</td></tr><tr><td>Derbi</td><td>Senda 50 R DRD Racing 10-12 (D50B) [ZDPABA00/ ZDPABH00]</td></tr><tr><td>Derbi</td><td>Senda 50 R DRD X-Treme 10-13 (D50B) [ZDPABB00/ BA01]</td></tr><tr><td>Derbi</td><td>Senda 50 R DRD X-Treme 14-15 (D50B) [ZDPAB]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Race 2006 E2 (D50B) [VTHSR1D1A/ VTHSR1E1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Race 2007-2009 E2 (D50B) [VTHSR1D1A/ VTHSR1E1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Race 2010 E2 (D50B) [VTHSR1D1A/ VTHSR1F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Treme 2006 E2 (D50B) [VTHSR1D1A/ E1A/ F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Treme 2007 E2 (D50B) [VTHSR1D1A/ E1A/ F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Treme 2008-2009 E2 (D50B) [VTHSR1D1A/ E1A/ F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Treme 2010- E2 (D50B) [VTHSR1D1A]</td></tr><tr><td>Derbi</td><td>Senda 50 R X-Treme 2018- E4 (D50B) [ZDPKKA00]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD 14-17 (D50B) [ZDPABA01/ ABB0]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Limited Edition 12- (D50B) [ZDPABB02]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Pro 05-11 (D50B) [VTHSA2A1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Racing 05-08 (D50B) [VTHSR2D2B]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Racing 10-13 (D50B) [ZDPABB00]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Racing LTD 2006 (D50B) [VTHSR2D2B]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD Racing LTD 2007 (D50B) [VTHSR2D2B]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD X-Treme 10-13 (D50B) [ZDPABB01/ BL01/ BB02/ BG010]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD X-Treme 14-17 (D50B) [ZDPABA01/ ABB0]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD X-Treme LTD 13-15 (D50B) [ZDPSK0/ ZDPABG01]</td></tr><tr><td>Derbi</td><td>Senda 50 SM DRD X-Treme LTD 14-17 (D50B) [ZDPABB01/ BL01]</td></tr><tr><td>Derbi</td><td>Senda 50 SM HYP DRD Evo 08-09 (D50B) [VTHSR2D1C]</td></tr><tr><td>Derbi</td><td>Senda 50 SM HYP DRD Evo LTD 08- (D50B) [VTHSR2D1C]</td></tr><tr><td>Derbi</td><td>Senda 50 SM Limited 2018- E4 (D50B) [ZDPKKB04]</td></tr><tr><td>Derbi</td><td>Senda 50 SM Racing 2018- E4 (D50B) [ZDPKKB02]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Race 2006 (D50B) [VTHSR2D1A/ 2E1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Race 2007-2009 (D50B) [VTHSR2D1A/ 2E1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Race 2010- (D50B) [VTHSR2D1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2006 (D50B) [VTHSR2D1A/ 2E1A/ 2F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2007 (D50B) [VTHSR2D1A/ 2E1A/ 2F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2008 (D50B) [VTHSR2D1A/ 2E1A/ 2F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2009 (D50B) [VTHSR2D1A/ 2E1A/ 2F1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2010- (D50B) [VTHSR2E1A/ 2D1A]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-Treme 2018- E4 (D50B) [ZDPKKB00/ PKKE00]</td></tr><tr><td>Derbi</td><td>Senda 50 SM X-treme Low Seat 19- E4 (D50B)</td></tr><tr><td>Gilera</td><td>RCR 50 06-10 (D50B) ZAPG11D1A</td></tr><tr><td>Gilera</td><td>RCR 50 11-12 (D50B) ZAPABA01</td></tr><tr><td>Gilera</td><td>RCR 50 13-17 (D50B)</td></tr><tr><td>Gilera</td><td>RCR 50 18-20 E4 (D50B) ZAPKKA00</td></tr><tr><td>Gilera</td><td>SMT 50 06-10 (D50B) ZAPG12D1A</td></tr><tr><td>Gilera</td><td>SMT 50 11-12 (D50B) [ZAPG11A1A]</td></tr><tr><td>Gilera</td><td>SMT 50 13-17 (D50B) ZAPABB01</td></tr><tr><td>Gilera</td><td>SMT 50 18- E4 (D50B) ZDPKKB00</td></tr><tr><td>Gilera</td><td>SMT 50 Drifting 19- E4 (D50B) [ZAPKKB07]</td></tr><tr><td>Gilera</td><td>SMT 50 Racing 11-12 (D50B) [ZAPABB00]</td></tr><tr><td>Laverda</td><td>L SM 50 2T 19- E4 (D50B) [ZBPKKB01]</td></tr></table><!-- lopp kataloog 2 --><br>
