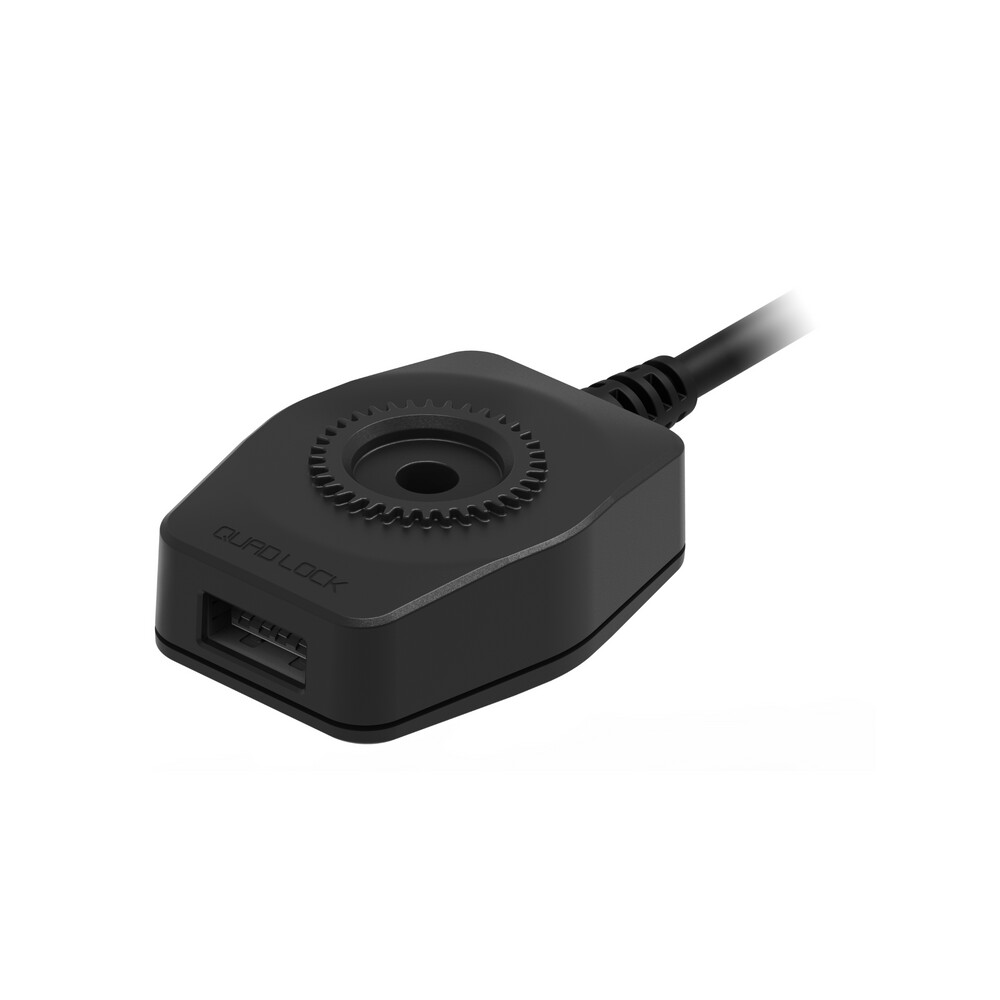

Motorcycle USB charger Quad Lock® 1,5 m wire, 20 cm SAE battery ring terminals

Charge your phone while riding with the Quad Lock® Motorcycle USB Charger.

EASY INSTALLATION

The Motorcycle USB Charger is easy to install on any Quad Lock® motorcycle mount or 1-inch ball adapter. The charger sits securely beneath the Quad Lock® mounting head, providing USB power without long charging cables.

Wiring

The 1.5 m SAE battery connector and 20 cm SAE battery ring terminals allow connection directly to the battery or an existing SAE port. The charger draws no power when not in use, so there is no risk of draining the battery.

FAST CHARGING AND ULTIMATE PROTECTION

The Quad Lock® Motorcycle USB Charger supports Quick Charge 2.0. It includes integrated overvoltage protection and reverse polarity protection to protect your device from human error, including incorrect installation.

IP66 CERTIFIED WATERPROOFING

Unless you plan to take your motorcycle underwater (which we do not recommend), IP66 waterproofing means no cap is required to cover the USB port, regardless of how heavy the rain is.

Cable and holder for charging a specific device are not included.

• IP66 waterproof housing
• Waterproof USB socket IPX8. No cap required.
• Quick Charge 2.0 (5V-2A, 9V-1.67A, 12V-1.5A)
• USB charger required input voltage is 12V–24V DC
• Built-in self-resetting fuse and overvoltage protection
• Reverse polarity protection (prevents damage from incorrect installation)
• 1.5 m cable to SAE connector and 20 cm SAE cable to battery terminal connectors
• Cable and holder for charging a specific device are not included
