Mounting kit Kriega R 1250 GS/F750/850

This kit also fits the latest F750 GS or F850 GS models with OEM cast aluminium boots. NOT suitable for tubular-type boots and does not cover all GS ADVENTURE models.

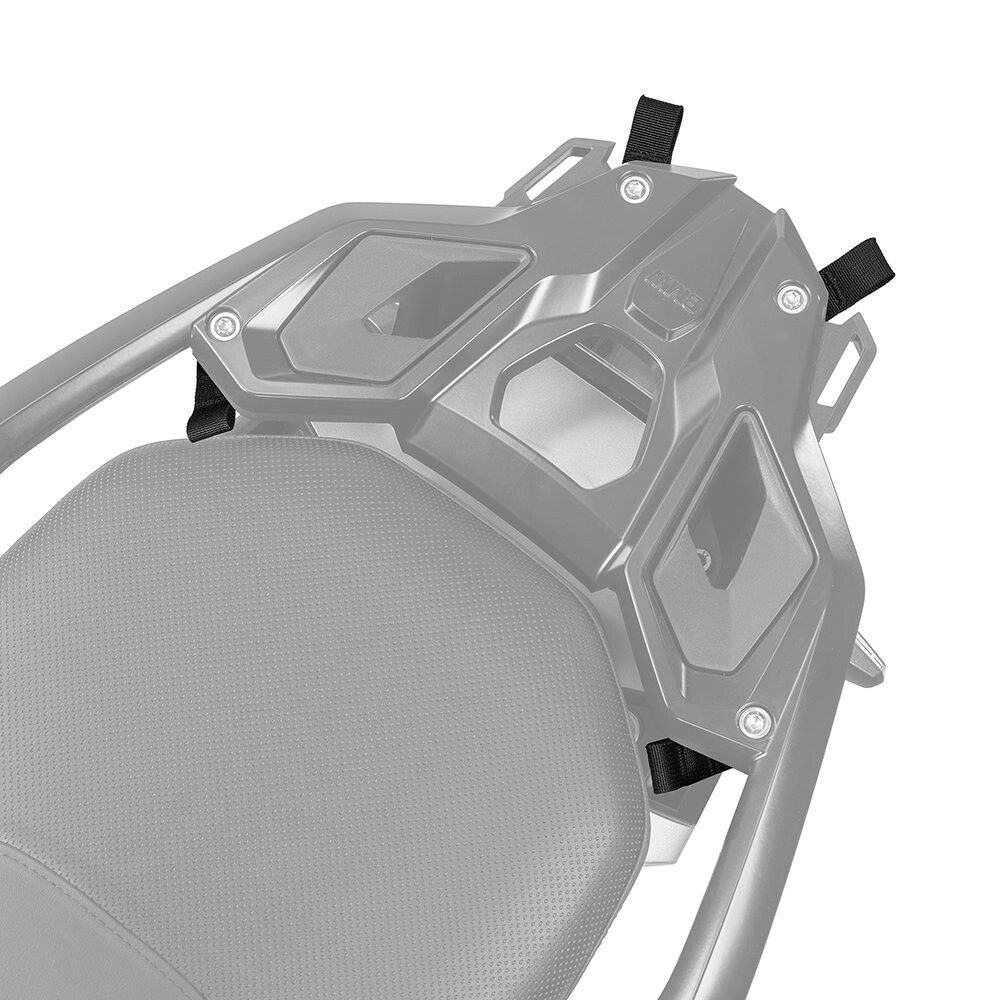

The kit consists of high-quality Hypalon and nylon strap loops that easily fit under the standard original luggage mounts, using the existing mounting points.

Once installed, they provide strong attachment points for any Kriega US-Drypack / US-Drypack Combo or OS-Adventure bag.

CONTENTS

• 2 x 50 mm screw loops
• 2 X 65 mm screw loops
• 8 x M6 washers
• 4 x 30 mm M6 screws
• 4 x M6 nylon screws

INSTALLATION

Remove the 4 boot bolts and replace them with the 4 longer M6 bolts, tightening them to 5 Nm torque.

Install the M6 washers on both Hypalon ends of the screw loops.

The two 50 mm screw loops are installed at the rear of the boot base. Attach the loops to the additional thread of the M6 bolt using another washer and nylon nut.

Repeat the process at the front of the boot with the 65 mm screw loops and tighten the nuts.
