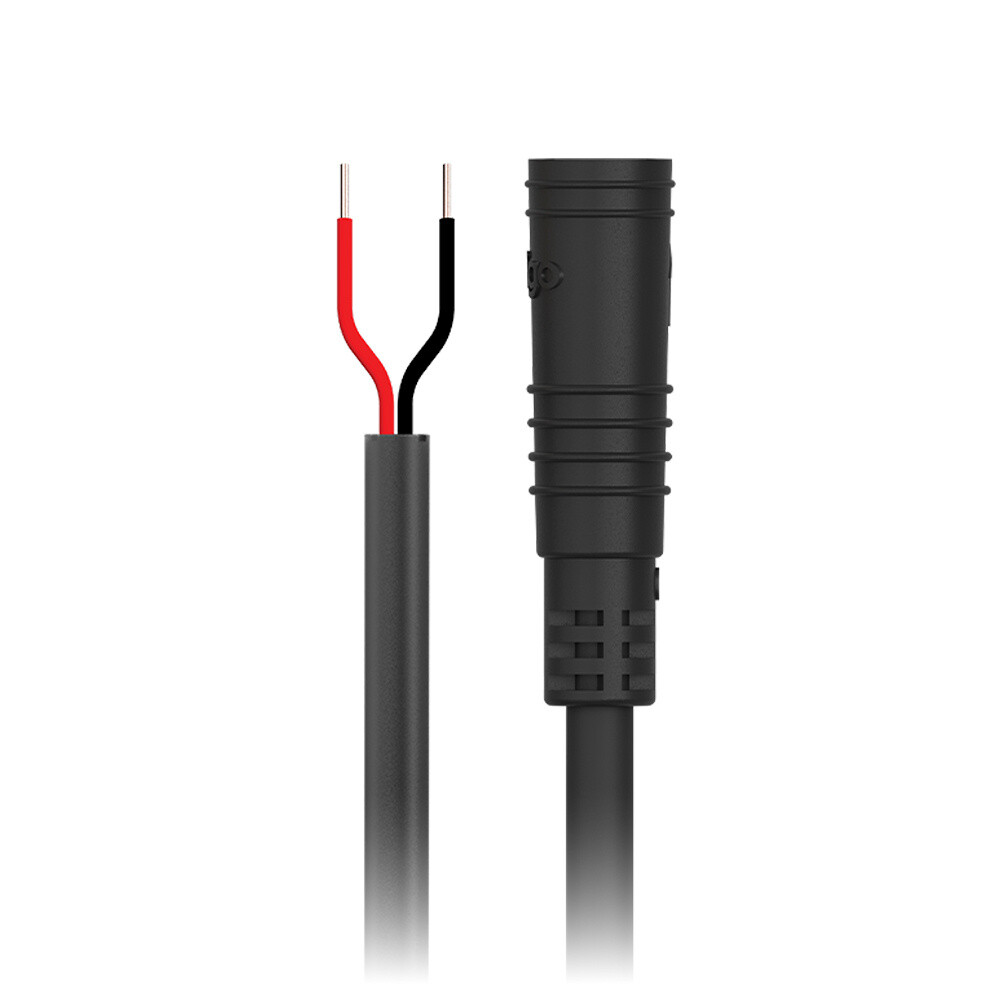

Power Cable Shimano

Connect the Quad Lock® Waterproof Wireless Charging Head to your compatible e-bike using our Bosch or Shimano connection cables. Alternatively, use a USB-C cable to connect it to a portable power bank. Minimum QC3.0 output power: 10 W, recommended output power: 18 W or higher. Due to the complexity of installation on e-bikes, we recommend that the Waterproof Wireless Charging Head be installed only by a mechanic, dealer, or expert. Shimano and other drive systems For connecting compatible e-bikes to the Quad Lock® Waterproof Wireless Charging Head. IP67 connector Cable length: 1.1 m Ensure that the cable length is suitable for your e-bike if it has a larger frame size or internal headset and cockpit cable routing. A professional can extend the Shimano cable to a maximum of 250 mm using a suitable extension cable (thicker, 22 AWG, insulated, 2-conductor cable). Requires an accessible accessory port on the e-bike system. Do not share the port with other accessories, such as lights. Do not connect directly to the battery to avoid battery drain. Installation by a mechanic is recommended. Weight: 26 g (0.917 oz).
