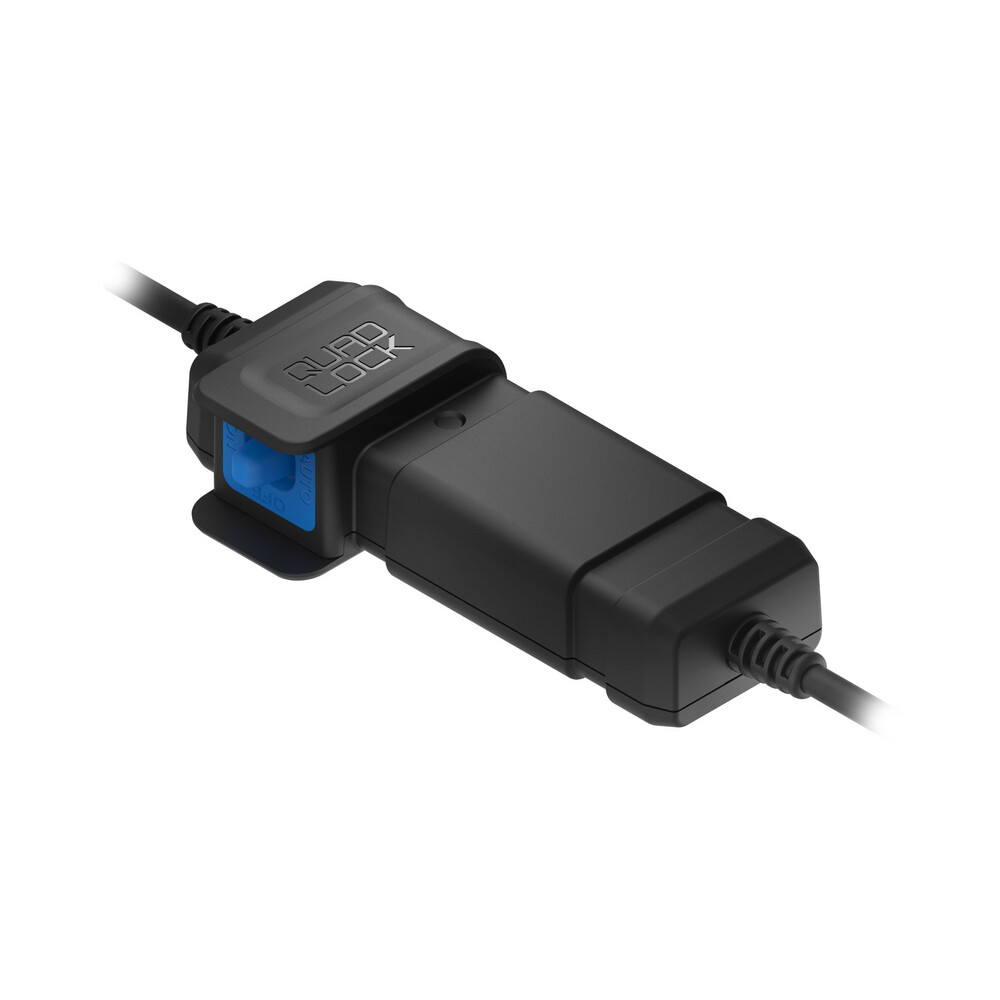

USB adapter Quad Lock® 12V waterproof

The intelligent, waterproof Quad Lock® 12V–USB adapter includes everything needed to power a Quad Lock® wireless charging head from a motorcycle, boat or motorhome.

MULTIPLE MODES

Easily switch the smart adapter between on, off and automatic modes. Use On mode to connect the smart adapter to a constant 12V–24V power source, such as a boat or motorhome. Use Automatic mode to keep the device off until the input voltage rises above 13.5V, and switch it off when the input voltage falls below 12.5V. Ideal for motorcycles, ATVs, etc. to prevent battery drain.

REVERSE POLARITY AND BUILT-IN PROTECTION

Reverse-polarity protection safeguards the battery if the ring terminals are connected to the wrong battery terminals. The built-in 3A fuse protects the battery in the event of a rare fault.

Note: The weatherproof wireless charging head is not included.

• Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A)
• Input: 12V–24V DC
• Automatic switching mode supplies power only when the engine is running to prevent battery drain
• Reverse-polarity protection
• Built-in fuse
• Waterproof polycarbonate 12V–USB adapter housing
• TPU switch
• PVC, SAE and USB-A cables and ring terminals
• Brass ring terminals
• IP66-rated waterproof 12V USB adapter and housing
• Cable with IP64 protection
• USB sealing cover
