CAM CHEST KIT CHRM PUSH TUBES

Be the first to review this product

In stock

SKU

09251669

Special Price €2,543.00 Regular Price €3,130.00

Dispatching between 22.10.2026 and 04.11.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Calculate instalment

▼

Select provider

Down payment

€

Loan amount: –

Payment period

24 months

3 months 60 months

Monthly payment – €

Product price –

Loan amount –

Total amount –

Interest cost –

Interest rate –

Contract fee –

Administration fee –

Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

Details

Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs are removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and the scavenge sides
Adjustable pressure relief valve is adjustable with the unit installed in the engine
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations
Made in the USA
Includes cam chain tensioner.
Will fit M8 with VVT.

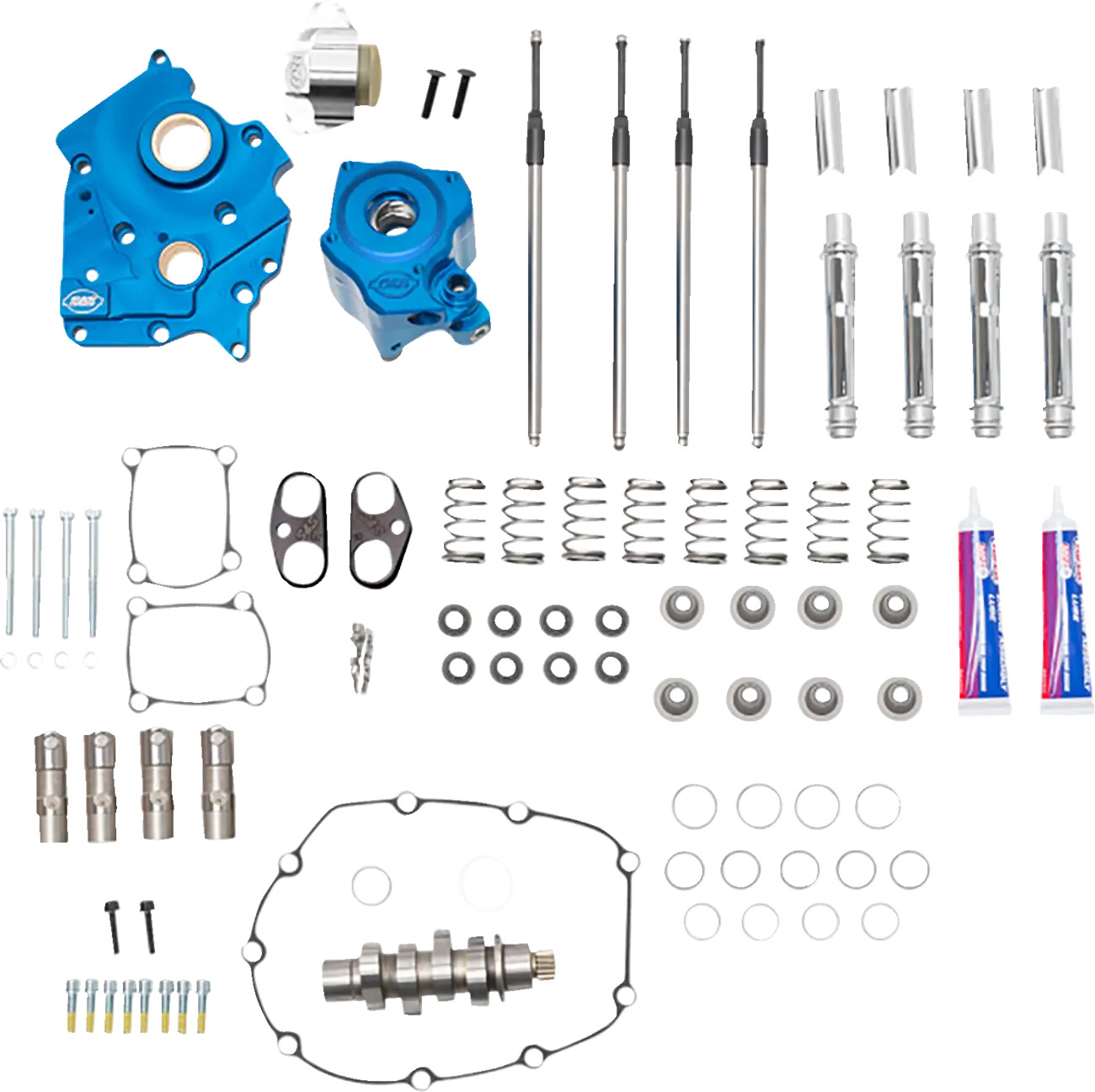

540 cam is designed for acceleration torque in 124" and larger engines. Enhances torque output in 4.25" big bore kits. Kit Includes: • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • Oil Pump with Cam Plate • Hydraulic Tappet Set • 540C Camshaft Kit • Spring Kit • Cam Chain Tensioner.

Brand

S&S CYCLE

Vendor Part Number

310-1116B

Application

Water Cooled

Exhaust Close

33,9° Front, 26,9° Rear

Exhaust Duration

235,1° Front, 244,6° Rear

Exhaust Lift

0,540"

Exhaust Lift at TDC

0,262" Front, 0,216" Rear

Exhaust Lobe Centerline

83,6° Front, 95,4° Rear

Exhaust Open

21,2° Front, 37,7° Rear

Features

Chrome Pushrod Tubes

Grind

540C

Intake Close

30,6° Front, 28,7° Rear

Intake Duration

228,3° Front, 223,6° Rear

Intake Lift

0,540"

Intake Lift at TDC

0,175" Front, 0,161" Rear

Intake Lobe Centerline

96,4° Front, 96,9° Rear

Intake Open

17,7° Front, 14,9° Rear

Product Name

Camchest Kit

Type

Chain Drive

Units

Kit

More Information

More Information
Weight	5.600000
Height	118
Width	279
Brand	S+S CYCLE
Lenght	406
Availability	In the central warehouse
Supplier reference	310-1116B
Outlet	No
