CAM CHEST KIT BLK PUSH TUBES

Be the first to review this product

In stock

SKU

09251665

Special Price €1,856.00 Regular Price €2,121.00

Dispatching between 24.09.2026 and 25.09.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Calculate instalment

▼

Select provider

Down payment

€

Loan amount: –

Payment period

24 months

3 months 60 months

Monthly payment – €

Product price –

Loan amount –

Total amount –

Interest cost –

Interest rate –

Contract fee –

Administration fee –

Max loan amount –

The calculator is informative. The final offer depends on the provider's terms and credit decision.

Details

Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs are removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and the scavenge sides
Adjustable pressure relief valve is adjustable with the unit installed in the engine
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations
Made in the USA
Includes cam chain tensioner.
Will fit M8 with VVT.

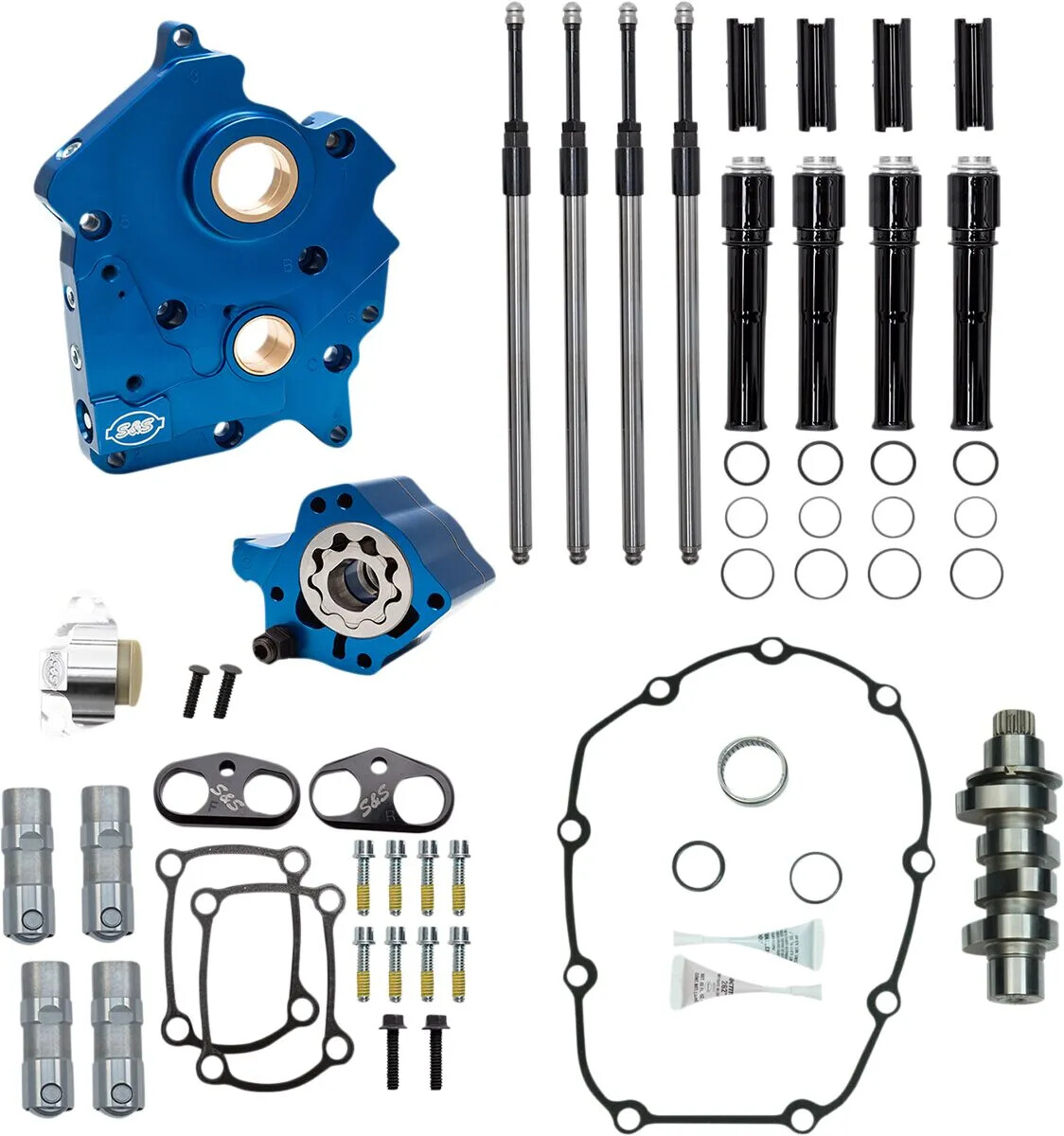

475 is a bolt-in 100 horsepower cam. Kit Includes: • Cam Chain Tensioner • Oil Pump Screw Kit • 475C Camshaft • Cam Chain Installation Kit • Quickee Pushrod Kit with Gloss Black Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Cam Plate Support Assembly • Oil Cooled Oil Pump • Hydraulic Precision Tappet Set • 1 oz Torco® Engine Assembly Lube

Brand

S&S CYCLE

Vendor Part Number

310-1012C

Application

Oil Cooled

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Features

Black Pushrod Tubes

Grind

475C

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear

Product Name

Camchest Kit

Type

Chain Drive

Units

Kit

More Information

More Information
Weight	4.900000
Height	135
Width	293
Brand	S+S CYCLE
Lenght	430
Availability	In the central warehouse
Supplier reference	310-1012C
Outlet	No
Ships in	1 business day
Campains	Hinnagarantii
