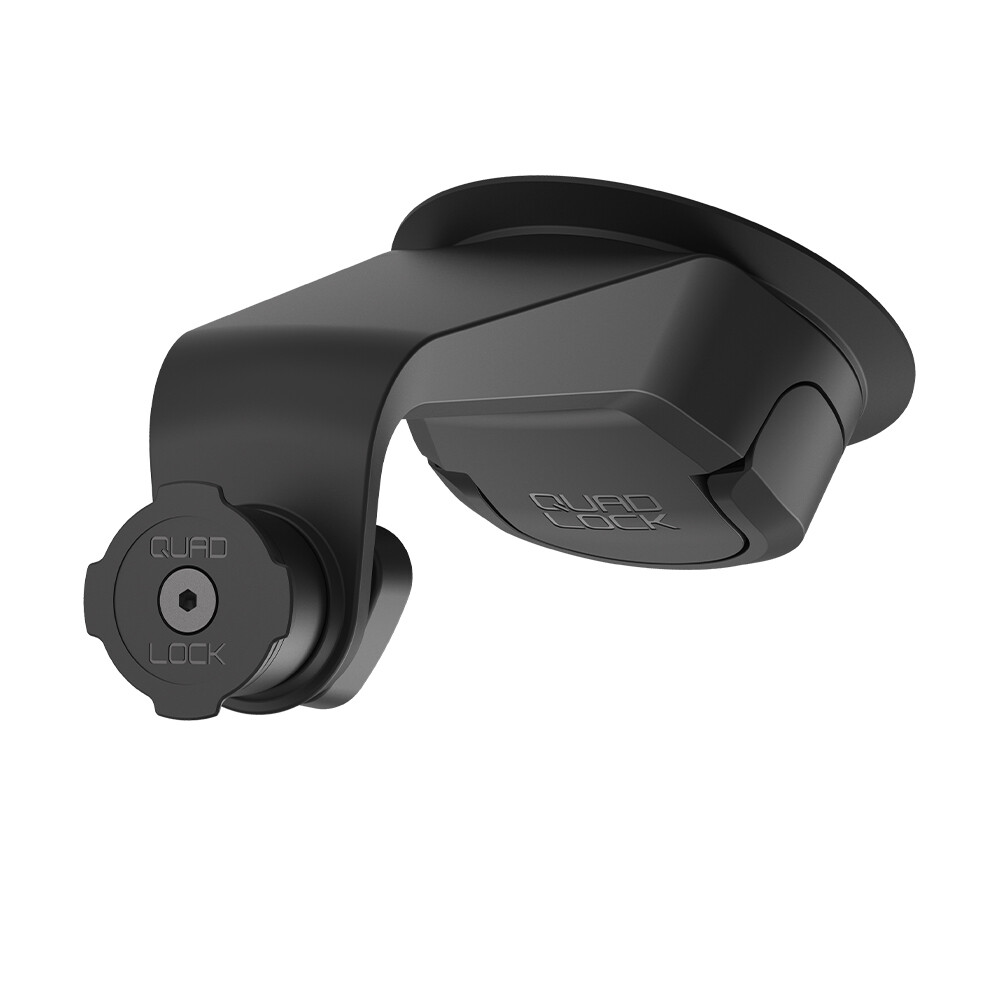

car window/dash mount Quad Lock V6

Features:
- Secure, high-strength mounting on smooth, non-porous surfaces
- Adjustable gimbal head
- Portrait or Landscape Mounting for Optimal Viewing
- Suction cup is durable and repositionable (i.e., no gel / adhesive).
- Easy-to-use lever actuation for locking and unlocking the suction cup. The lever actuates
the suction cup, creating a vacuum against the application surface.
- Increased 20mm arm length provides greater mount reach
Compatible with:
Quad Lock cases and Universal Adaptors
Quad Lock 360 Compatible Products
Quad Lock MAG & Wireless Charging Heads
Intended for use on smooth, non-textured, non-porous surfaces such as:
- Glass or plastic such as PC or Acrylic (e.g., windshields)
- Painted or powder coated metal or steel that are not ‘soft touch’, rough or textured (e.g., vehicle bodies)
- Fibreglass with gelcoat or marine paint (e.g., boat trim)
Mount will work on gently curved surfaces (>1m curvature radius)
The ideal operating temperature for the Suction Windscreen Dash Mount is between -30°C to
+80°C (14°F to 122°F) ambient / outside temperature.
When not in use, remove and stow the Car 6 with its lever unlocked.
Capable of supporting loads of up to 600 gms through typical use cases (only use with Quad Lock products and supported devices).
Included in box: 1 x Suction Windscreen Dash Mount
Materials:
Housing - Glass-filled Nylon
Lever - Glass-filled Nylon
Suction cup - NBR (Nitrile Butadiene Rubber)
Suction cup insert - Die-Cast Steel
Hinge pin - Nickel-plated Steel
Compression spring - Spring Steel
Gimbal assembly - Polycarbonate & Glass-filled Nylon
Blue branding disc – Polypropylene
Measurements: 160mm L x 80mm W x 124mm H

V6
