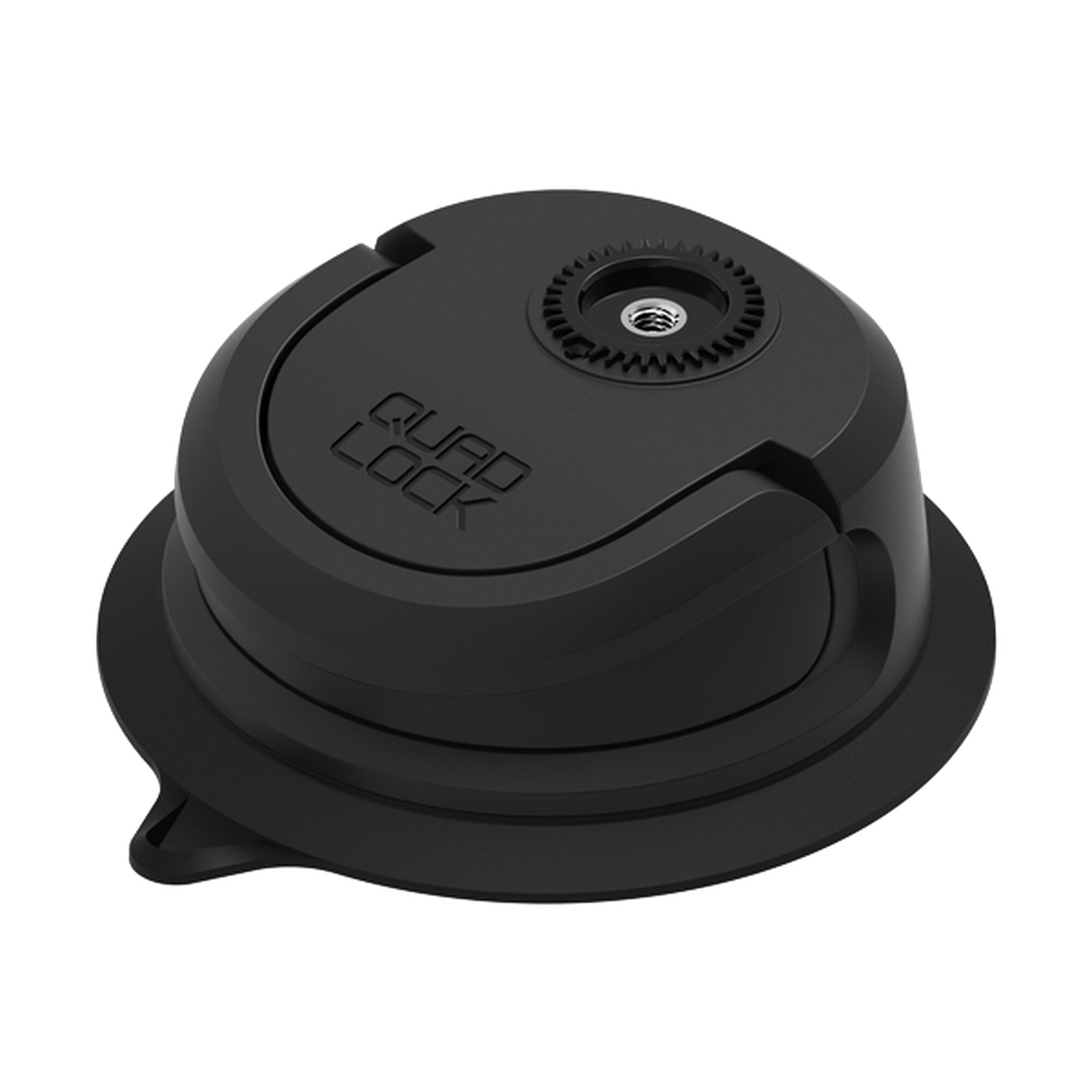

Phone mount Quad Lock 360 Base - Suction

Designed as a suction base for mounting your smartphone, tablet, or action camera to surfaces typically found in driving, aviation, and marine environments.
360™ compatible interface, configurable with your choice of 360™ Arm and Head to suit your application.
High-strength suction cup for mounting on smooth, non-porous surfaces (suitable for holding an iPad Mini, including Case, Head and Arm; approx. 700g).
Features:
Designed as a suction base for mounting your smartphone, tablet, or action camera to surfaces typically found in driving, aviation, and marine environments.
360™ compatible interface, configurable with your choice of 360™ Arm and Head to suit your application.
High-strength suction cup for mounting on smooth, non-porous surfaces (suitable for holding an iPad Mini, including Case, Head and Arm; approx. 700g).
Durable and repositionable suction cup (no gel or adhesive).
Repositioning is further enhanced by the adjustability of the 360™ Arm and Head (e.g., it can be positioned close to corners of differently angled windscreens).
The lever provides a tactile, easy-to-use method for locking and unlocking the suction cup and actuates it, creating a vacuum against the application surface.
The lever shape allows full rotation for locking / unlocking while maintaining adequate clearance for 360™ Arm options.
Compact form factor – the Suction Base’s lever and housing are smaller than the footprint of its Suction Cup.
Not compatible with:
Adhesive Dash Pad
Compatible with:
ALL 360™ ARMS
ALL 360™ HEADS, WHEN USED WITH AN ARM*
Note: Attaching a 360™ Head directly to the Suction Base is not recommended, as it would impede the function of the Lever. Instead, use a 360™ Arm to ensure sufficient clearance.
Surface guidelines: The Suction Base is intended for use on smooth, non-textured, non-porous surfaces such as:
- Glass or plastic such as PC or Acrylic (e.g., windshields)
- Painted or powder coated metal or steel that are not ‘soft touch’, rough or textured (e.g.,
vehicle bodies)
- Fibreglass with gelcoat or marine paint (e.g., boat trim)
The Suction Base will work on gently curved surfaces (>1m curvature radius). Clean the surface with a damp cloth, and allow it to dry before attaching.
Operating temperature: The ideal operating temperature for the Suction Base is between -10 to +50°C ambient / outside temperature.
When not in use, remove and stow the Suction Base with its lever unlocked.
Weight holding capacity:
The Suction Base is capable of supporting loads of up to 1.2kg through typical use cases (only use with Quad Lock products and supported devices)
Included in the box: 1 x 360™ Suction Base
Materials:
Housing W/ Insert - Glass-filled Nylon; M5 Stainless Steel Threaded Insert
Lever - Glass-filled Nylon
Suction Cup - NBR (Nitrile Butadiene Rubber)
Suction Cup Insert - Stainless Steel
Hinge Pin - Nickel-plated Steel
Compression Spring - Stainless Steel
Measurements: 101 mm L x 89 mm W x 34 mm H
