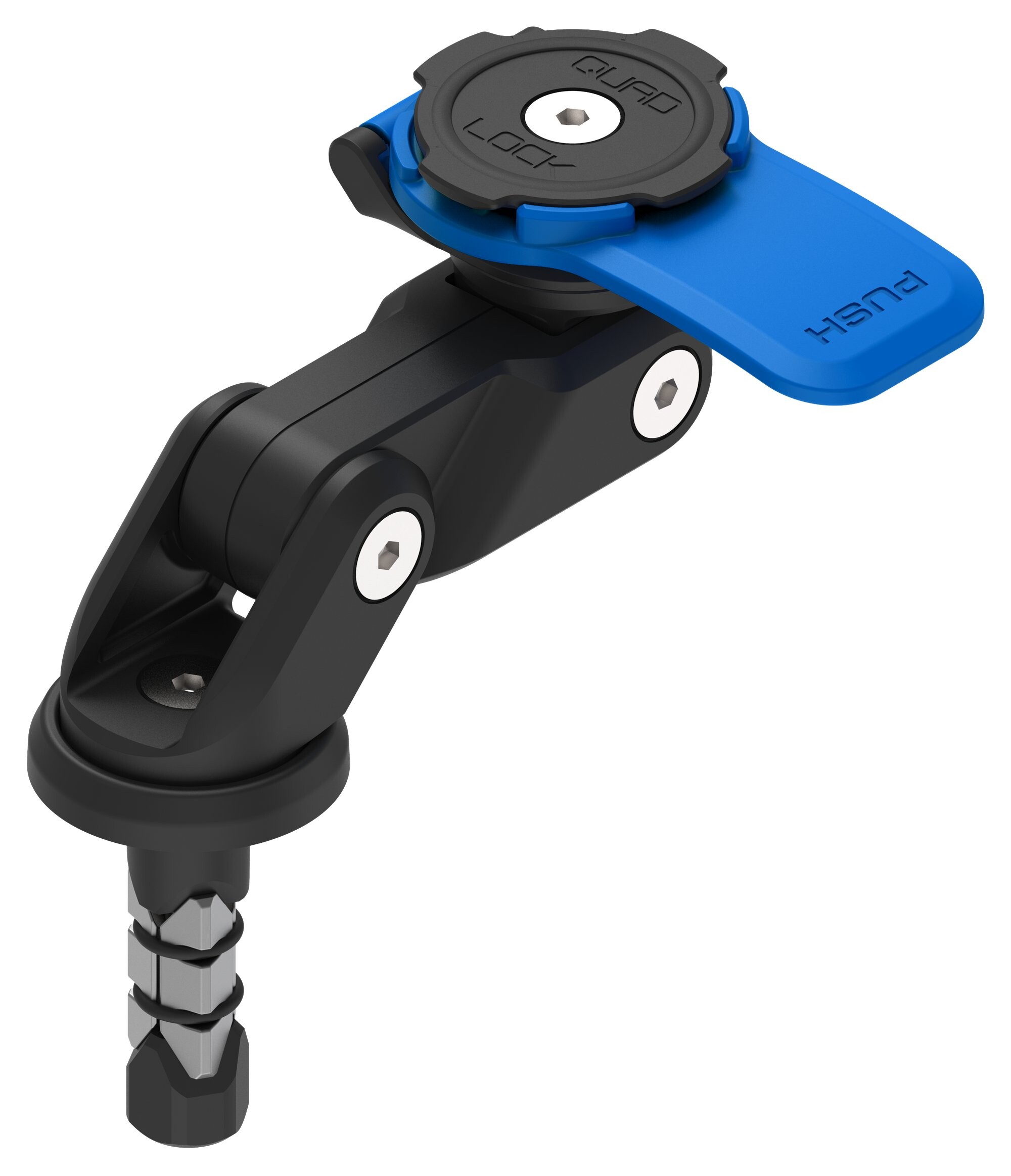

Motorcycle Fork Stem Mount Quad Lock (V2), 12.7mm–25.4mm, cylindrical stems

The Quad Lock Fork Stem Mounts are designed for motorcycles that require mounting in the tube of the fork stem.
Features:Secure - Patented Dual Stage Locking Mount
Made from tough glass filled nylon
Stainless steel hardware
Multiple mounting configurations
Fits a large range of stem tube hole sizes from 12.7mm (½”) to 25.4mm (1”)
Suits cylindrical tube stems
Preload resistance when adjusting position provides quality feel
The Quad Lock Fork Stem Mounts are designed for motorcycles that require mounting in the tube of the fork stem.
Features:
Secure - Patented Dual Stage Locking Mount
Made from tough glass filled nylon
Stainless steel hardware
Multiple mounting configurations
Fits a large range of stem tube hole sizes from 12.7mm (½”) to 25.4mm (1”)
Suits cylindrical tube stems
Preload resistance when adjusting position provides quality feel
Compatible with:
- Quad Lock Cases & Universal Adaptors
- Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless\/USB Chargers)
- Quad Lock 360 Compatible Products
- Quad Lock Coloured Levers
- Stem Hole SIzes:
- Small Stem Spacers: 12.7mm (1⁄2”) – 19mm (3⁄4”) Diameter
- Medium Stem Spacers: 18.6mm ~(3⁄4”) – 25.4mm (1”) Diameter
Included in box:
1x Quad Lock Index Head Assembly (with blue lever)
1x Quad Lock FSM Mount Assembly inc. 1 x Small Spacer Assembly
1x Medium Spacer Assembly
1x 3mm Allen (Hex) Key
Materials:
Glass Filled Nylon
316 Stainless Steel Hardware
Zinc Alloy Mount Spacers
Recommended torque rating:
Index Head Screw - 2.0 Nm Max.
Extension Arm Screw - 3.5 Nm Max.
Stem Base - 3.5 Nm Max.
Measurements:
Width: 67.6mm Overall; Base Diameter: 32mm
Length: 89.4mm Extended \/ 68mm Collapsed
Height: 90.7mm Overall \/ 50.4mm Base to Top of Index Head
