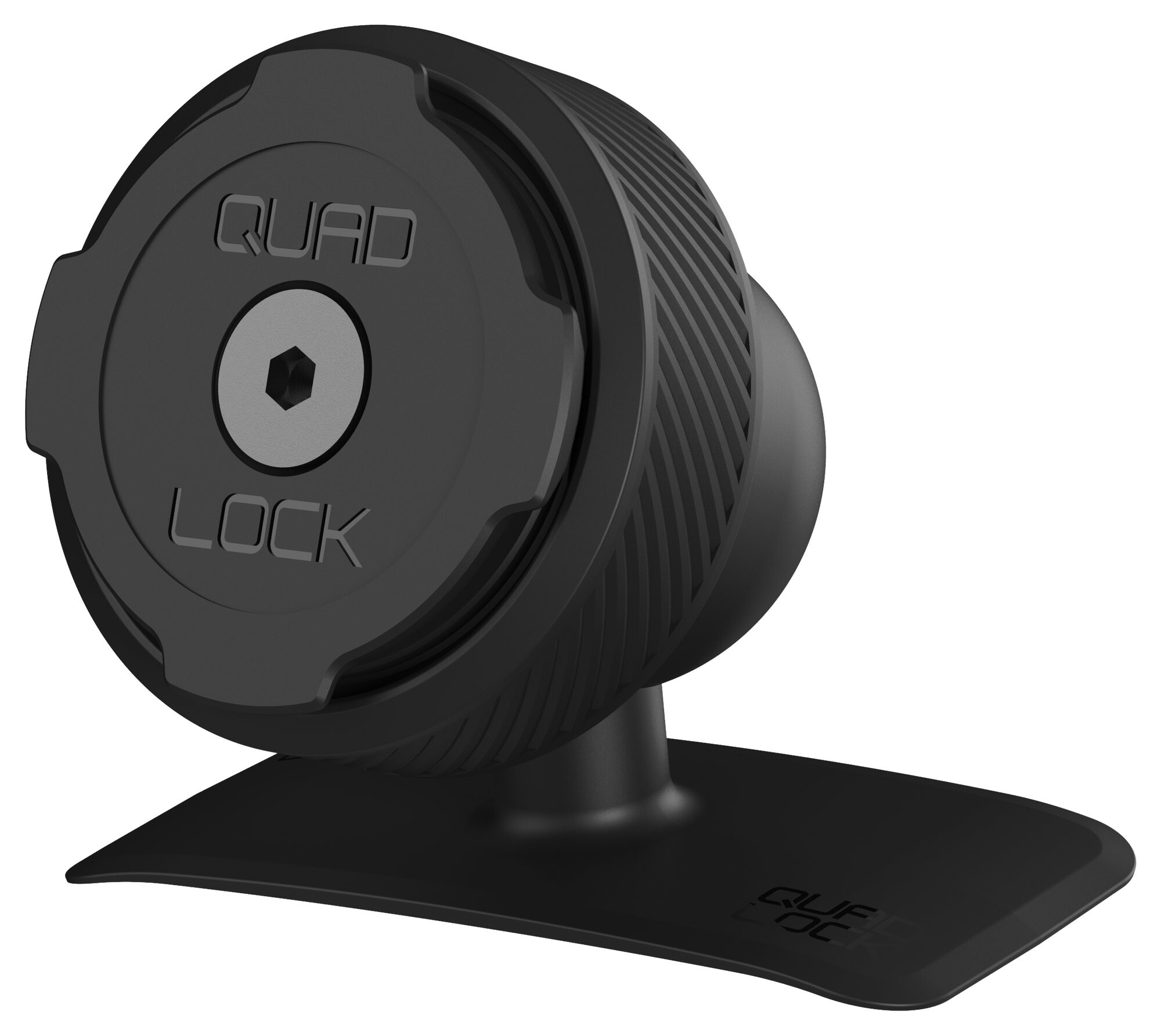

Quad Lock Dash / Console Car Mount

Features:- Low Profile & Adjustable Mount for your Car Dash or Console- Flexible 3M VHB Adhesive base which can bond to flat or slightly curved surfaces- Portrait or Landscape Mounting for Optimal Viewing- Single pivot ball allows 180° head articulation (Z axis) and 360° rotation around the base- Rubber knurled locking nut provides better grip to tighten / loosen- Upgrade to Quad Lock Wireless Charging or MAG Heads
Features:
- Low Profile & Adjustable Mount for your Car Dash or Console
- Flexible 3M VHB Adhesive base which can bond to flat or slightly curved surfaces
- Portrait or Landscape Mounting for Optimal Viewing
- Single pivot ball allows 180° head articulation (Z axis) and 360° rotation around the base
- Rubber knurled locking nut provides better grip to tighten / loosen
- Temperature Resistance: 149°C (300°F) long term / 93°C (200°F) short term
- Upgrade to Quad Lock Wireless Charging or MAG Heads
Compatible with:
All Quad Lock cases and Universal Adaptors
Quad Lock MAG & Wireless Charging Heads (QLH-MAG, QLH-WCH, QLH-MAG-WCH)
3M Adhesive suitability:
Recommended Substrates:
Smooth, non-porous, non-textured surfaces such as;
- Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. Car dash, console)
- Un-coated glass (eg. Windshield)
- Metals
- Fibreglass
Non-Recommended Substrates:
- Rubber, TPU, TPE
- Leather
- Silicone
- Soft touch coating or paint
- Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
Application Temperature:
- Ideal application temperature: 21°C (70°F) to 38°C (100°F)
- Not recommended application temperature: Below 10°C (50°F)
It is not recommended for use on Motorcycles, Scooters, ATV’s or other high frequency engine vibration applications.
Materials:
Base - Gf Nylon (Pa66+14gf)
Ball Overmould - Tpu 80sha
Locking Nut - Gf Nylon (Pa66+14gf) + Tpu 80sha
Top Cap - Gf Nylon (Pa66+14gf)
Reverse Single Pivot Dome - 30% Glass Filled Polycarbonate
(Pc+30gf)
Reverse Single Pivot Base - Pc+Abs
Adhesive - 3m 5611 - 1.1mm Thick
Included in box:
1 x Quad Lock Dash/Console Car Mount with Top Cap
1 x Spare 3M VHB 5611, pre-cut to size Adhesive pad
1 x Isopropyl Alcohol prep wipe
Ensure the mount does not interfere with essential vehicle operation (steering, airbags, braking, etc)
Recommend NOT to mount in a position that may obstruct driver’s view
Measurements: 59.5mm L x 39mm W x 45mm H
