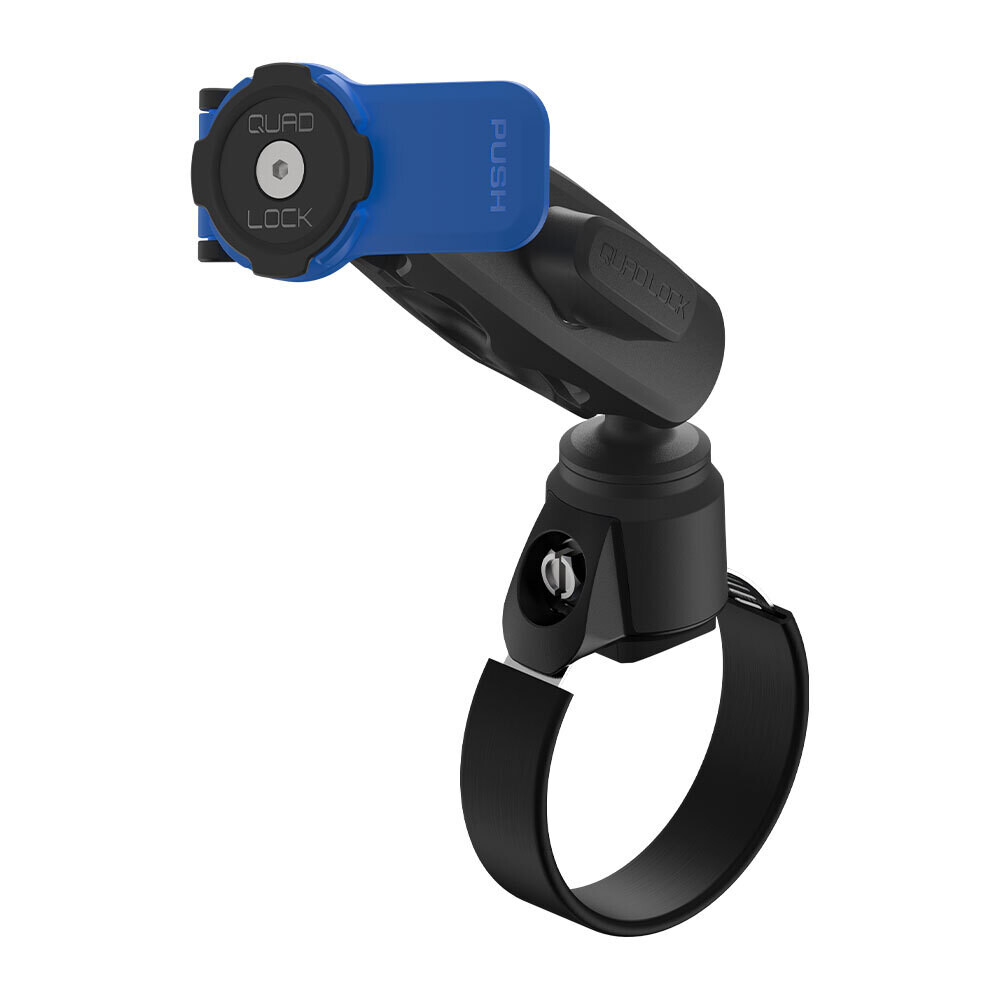

Roll cage mount Quad Lock Roll Cage Mount

Features:- Adjustable and secure mounting solution for roll cage setups- Rubber sleeve protects mounting surface and provides increased grip- Guided entry for 8mm socket driver or flat-head screwdriver to install- Dual pivot arm with 180° vertical and 360° horizontal rotation- Ball ends offer 180° / 60° movement for flexible positioning- 75mm (3”) arm length with adjustable handle- Pivot arm designed with preload tension for easy adjustability- Inbuilt grooves for tidy cable mana
Features:
- Adjustable and secure mounting solution for roll cage setups
- Rubber sleeve protects mounting surface and provides increased grip
- Guided entry for 8mm socket driver or flat-head screwdriver to install
- Dual pivot arm with 180° vertical and 360° horizontal rotation
- Ball ends offer 180° / 60° movement for flexible positioning
- 75mm (3”) arm length with adjustable handle
- Pivot arm designed with preload tension for easy adjustability
- Inbuilt grooves for tidy cable management
- 316 stainless steel hardware with TPU overmould
- Lever Head offers patented dual-stage locking and portrait or landscape mounting orientation
Bar compatibility:
Suits all bar diameters from 32mm to 60mm (1-1/4” to 2-3/8”)
Fits RHS bar 35-50mm
Two pivot points for adjustability:
- Rotates through 180° vertically and 360° horizontally
- Balls at either end offer 180° / 60° movement for greater angle
Compatible With:
- Quad Lock 360 Range
- All Quad Lock Cases & Universal Adaptors
Not Compatible With:
- Non 360 Products
Included in box:
1x Quad Lock 360 Lever Head (with retention ring and M5 x 20mm countersunk hex head screw - Silver)
1x Dual Pivot Arm (Medium)
1x Dual Pivot Arm Handle
1x M5 x 35mm countersunk hex head screw - Silver
1x 3mm Hex (Allen) key
1x Hose Clamp Base (Assembled): Large hose clamp (40-60mm), Aluminium base, Spacer, Cap, Sleeve (Attached)
1x Sleeve (Spare)
1x Small hose clamp (21-44mm)
Materials:
Lever head:
- LEVER & INDEX BASE V3: Glass Filled Nylon
- FASTENER: 316 Stainless Steel (Silver)
Dual pivot arm (Medium):
- ARM: Glass Filled Nylon
- BALLS: TPU Overmould
- FASTENERS & HARDWARE: 316 Stainless Steel (Silver)
Hose clamp base:
- BASE: Aluminium 6061 T6
- CAP: Glass Filled Nylon
- SLEEVE & SPACER: Rubber (NBR/SBR)
- HARDWARE: 316 Stainless Steel (Silver
Dual pivot arm (Medium)
- Quad Lock 360 Dual Pivot Arm Handle / Screw Set (QLP-360-DPAH)
- Quad Lock 360 Dual Pivot Arm Balls - Set of 2 (QLP-360-DPAB)
- Quad Lock 360 Dual Pivot Arm - Medium (QLP-360-DPM)
Hose clamp base
- Quad Lock 360 Roll Cage Hose Clamp (QLP-360-HCB)
- No specific components available due to low product volume
- Future consideration - spare parts of the SPACER and SLEEVE
Measurements:
215 x 82 x 36mm (Varies by lever head assembly angle, DPM angle and hose clamp size used)
