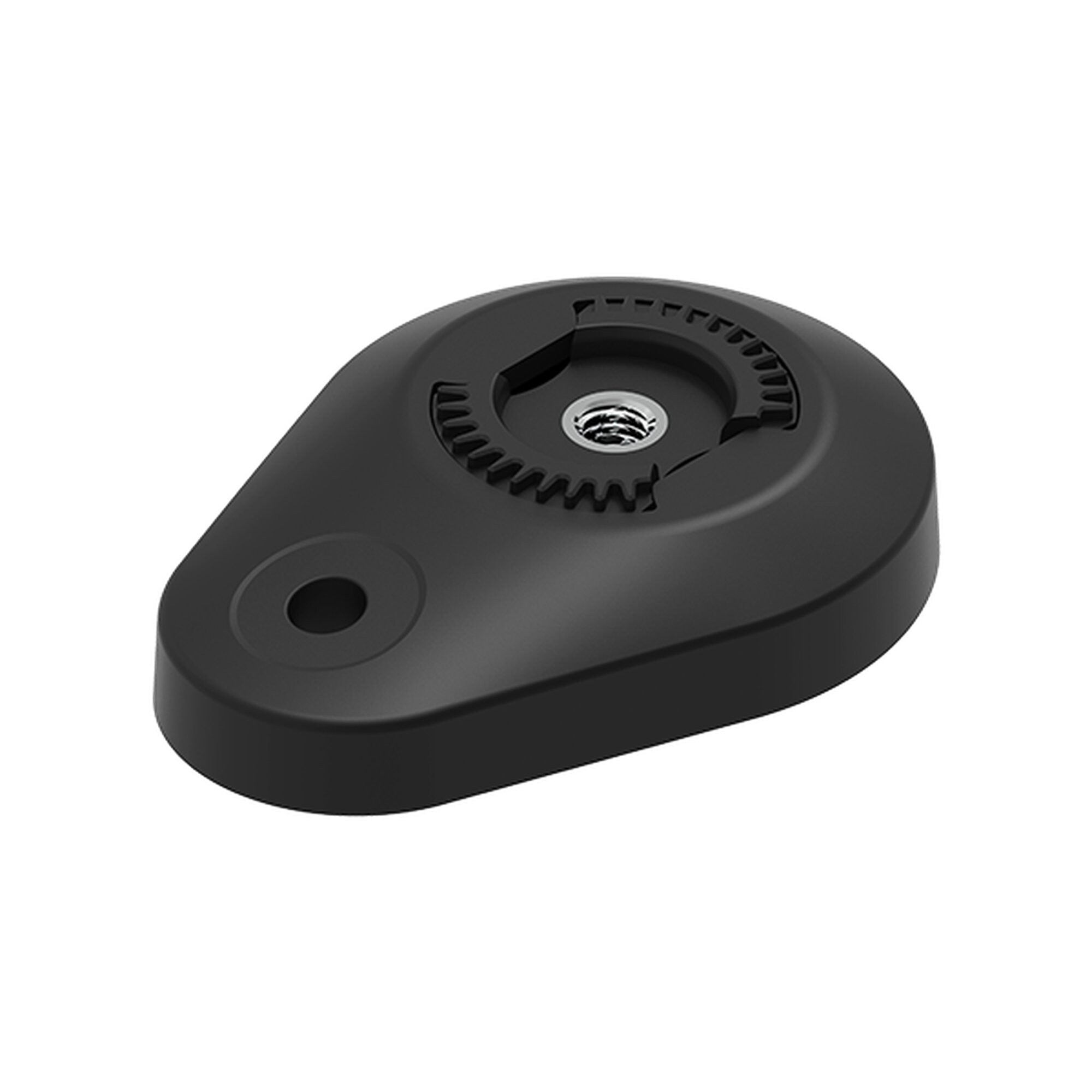

Base Quad Lock 360 Base - Concealed Through Cable 2 hole, 12V-24V, M5, 10G, M5 x 45

Features
- 2-hole base
- Glamour cover with TPU grommet to pass 12V-24V waterproof wireless charger cable
- Glamour cover to hide screws
- Low-profile base
Compatible with:
- Primarily used as a cable pass-through for a 12V-24V waterproof wireless charging head
- Flat mounting surface
- M5 or 10G (gauge 10) pan-head screws
- All QUAD LOCK 360 arms and heads
- Use the moto spacer, M5 x 45 screw and right-angle USB-C cable for the USB weatherproof wireless charger
Not compatible with:
- Curved mounting surface
- The following cables cannot pass through the grommet:
- USB-A to USB-C CABLES (QUAD LOCK / GENERIC)
- USB-C to USB-C CABLES (QUAD LOCK / GENERIC)
- SAE connector cables (QUAD LOCK / GENERIC)
- Moto USB charger and 12V smart adaptor cables
Included in the box:
1 x QUAD LOCK concealed through-cable small base with cover
1 x QUAD LOCK 10mm SPACER
1 x M5 x 30 countersunk hex socket screw (for connecting the Spacer to the Lever Head or 360 Arms)
1 x M5 x 45 countersunk hex socket screw (for connecting the Spacer to the Weatherproof Wireless Charger)
*Mounting screws not included
Materials: Glass-filled nylon, 316 stainless steel hardware
Measurements: 55mm L x 40mm W x 12mm H
