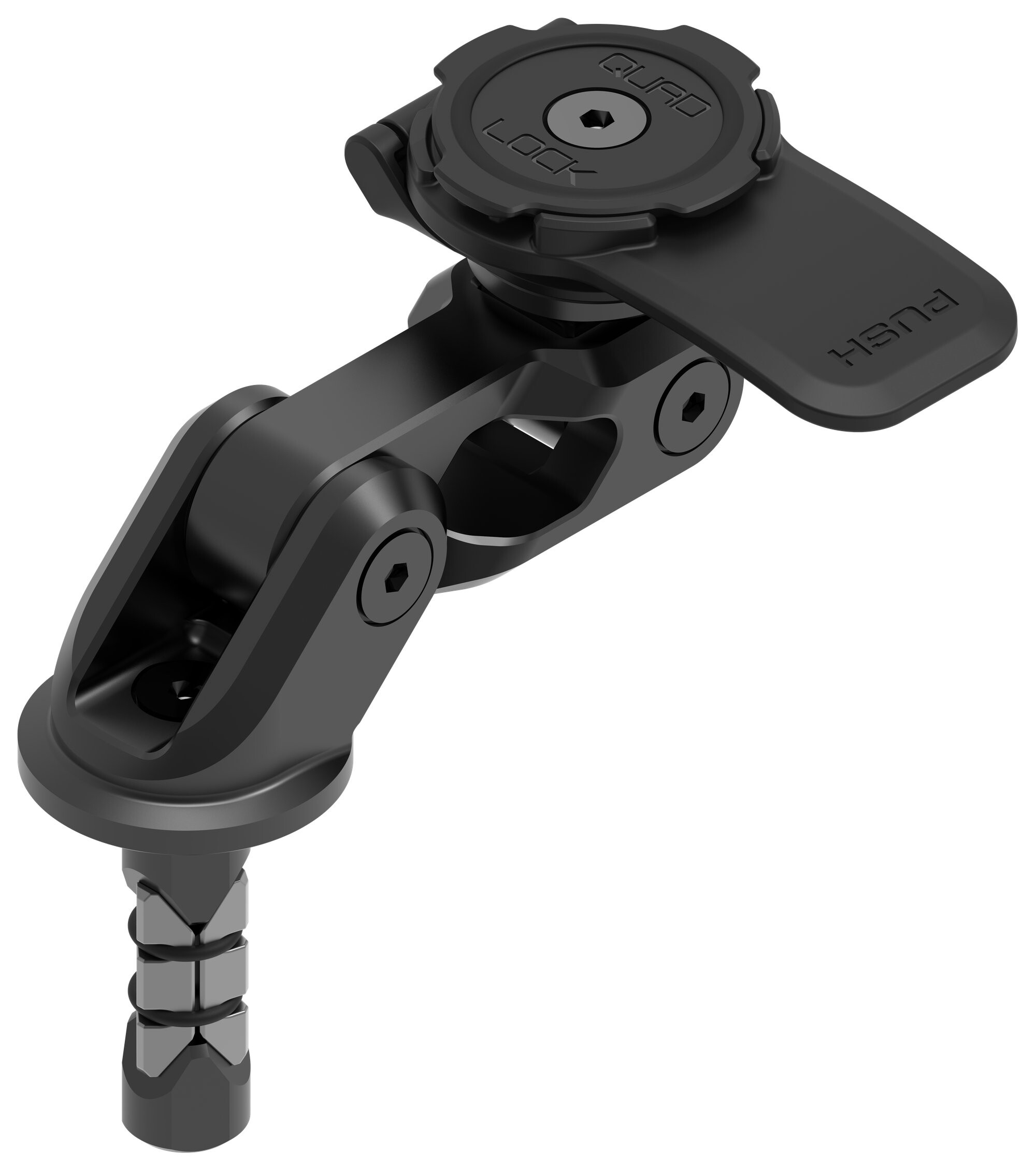

Motorcycle Fork Stem Mount Pro Quad Lock

The Quad Lock Fork Stem Mounts are designed for motorcycles that require mounting in the tube of the fork stem.
Features:Black Anodised CNC machined Aluminium Base, Arm & Knuckle
Designed for motorcycles that require mounting in the tube of the fork stem
Multiple mounting configurations for optimal viewing position
Fits a large range of stem hole sizes (refer below)No dissasembly required when adjusting position
Preload resistance when adjusting position provides quality feel
Discreet
The Quad Lock Fork Stem Mounts are designed for motorcycles that require mounting in the tube of the fork stem.
Features:
Black Anodised CNC machined Aluminium Base, Arm & Knuckle
Designed for motorcycles that require mounting in the tube of the fork stem
Multiple mounting configurations for optimal viewing position
Fits a large range of stem hole sizes (refer below)
No dissasembly required when adjusting position
Preload resistance when adjusting position provides quality feel
Discreet cable route for USB charging cables through extension arm
Assembled with Black Lever
Black Hardware
Stem hole compatibility:
Small Stem Spacers - 12.4mm (1/2”) - 19mm (3/4”) diameter
Medium Stem Spacers - 18.6mm (3/4”) - 25.4mm (1”) diameter
Adjustability:
180° angle adjustment of knuckle and arm (extended or collapsed position)
360° rotational adjustment of base via central stem
Compatible with:
All Quad Lock Cases & Universal Adaptors
All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)
All Quad Lock 360 Compatible products
All Quad Lock Coloured Levers
Included in box:
1x Quad Lock Motorcycle Fork Stem Mount Pro
2x Stem Spacers - Small & Medium
1x M5 x 35 Black Screw (for use with optional Motorcycle Chargers)
1x 3mm Hex Key
Materials:
Black Anodised Aluminium (Base, Arm & Knuckle)
Glass Filled Nylon (Index Head)
Zinc Alloy (Stem Spacers)
Stainless Steel Hardware
Torque rating:
Index Head Screw - 2.5Nm
Knuckle & Arm Screw - 3.5Nm
Stem Base - 3.5Nm
