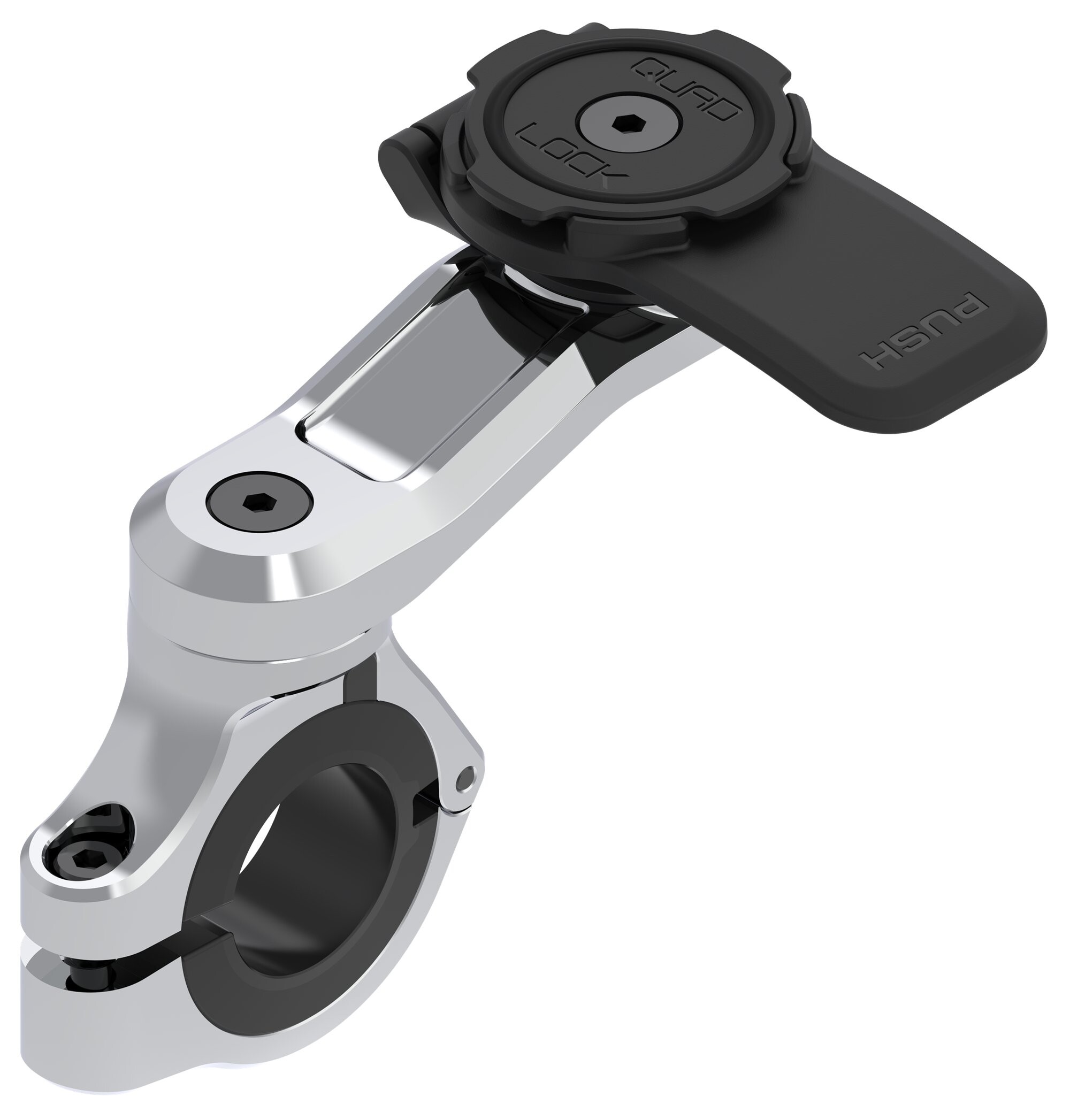

Motorcycle handlebar mount Quad Lock Pro Chrome

The Quad Lock® Handlebar Mounts are the ultimate smartphone mounts for motorcycles.
Features:Chrome plated clamp and extension arm
Slim clamp width with flush mounted spacers
Multiple mounting configurations
Fits a wide range of handlebar sizes (refer below)
Discreet cable route for USB charge cables. Remove plug in upper clamp to access
Assembled with Black Lever
Black Hardware
Handlebar compatibility Spacer Sizes (ID): 22.2mm (⅞”), 25.4mm (1”), 28.6mm (1-⅛”), 31.8mm (1-¼”)
The Quad Lock® Handlebar Mounts are the ultimate smartphone mounts for motorcycles.
Features:
Chrome plated clamp and extension arm
Slim clamp width with flush mounted spacers
Multiple mounting configurations
Fits a wide range of handlebar sizes (refer below)
Discreet cable route for USB charge cables. Remove plug in upper clamp to access
Assembled with Black Lever
Black Hardware
Handlebar compatibility Spacer Sizes (ID): 22.2mm (⅞”), 25.4mm (1”), 28.6mm (1-⅛”), 31.8mm (1-¼”)
Adjustability:
Angle adjustability of clamp around handlebar
360° rotational adjustment of Extension Arm and Index Head
Compatible With:
- Quad Lock 360 Range
- All Quad Lock Cases & Universal Adaptors
- All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless\/USB Chargers)
Not Compatible With:
- Non 360 Products
Included in box:
1 x Quad Lock Index Head Assembly
1 x Quad Lock HBR-PRO Clamp and Extension Arm Assembly
4x Bar Spacers - 22.2mm (⅞”), 25.4mm (1”), 28.6mm (1-⅛”), 31.8mm (1-¼”)
1 x M5 x 35 Black Screw (to replace silver screw on Moto WCH\/USB)
1 x 3mm Hex Key
Materials:
Clamp and Extension Arm Assembly - 6061 Aluminium Chrome Plated
Spacers - Glass Filled Nylon with Overmolded Flexible Liner
Index Head - Glass Filled Nylon
Hardware - Stainless Steel
Index Head V3 with Black Lever
Screw types:
All screws: 316 Stainless Steel Black with Threadlocker
Index Head – M5 x 20 Hex CSK
Index Head (spare) - M5 x 35 Hex CSK
Extension Arm – 1 x M5 x 20 Hex CSK
Clamp – M4 x 16 Hex Socket Screw
Recommended torque rating:
Index Head Screw – 2.5Nm Max
Extension Arm to Clamp Assembly Screw - 3.0Nm Max
Clamp Assembly Screw - 2.0Nm Max
Measurements:
Length: 97.6mm overall
Width: 67.6mm overall, 25mm Clamp and Extension Arm, 15mm Clamp
Height: 81.0mm overall, 59.5mm Centre of handlebar to top of Index Head
