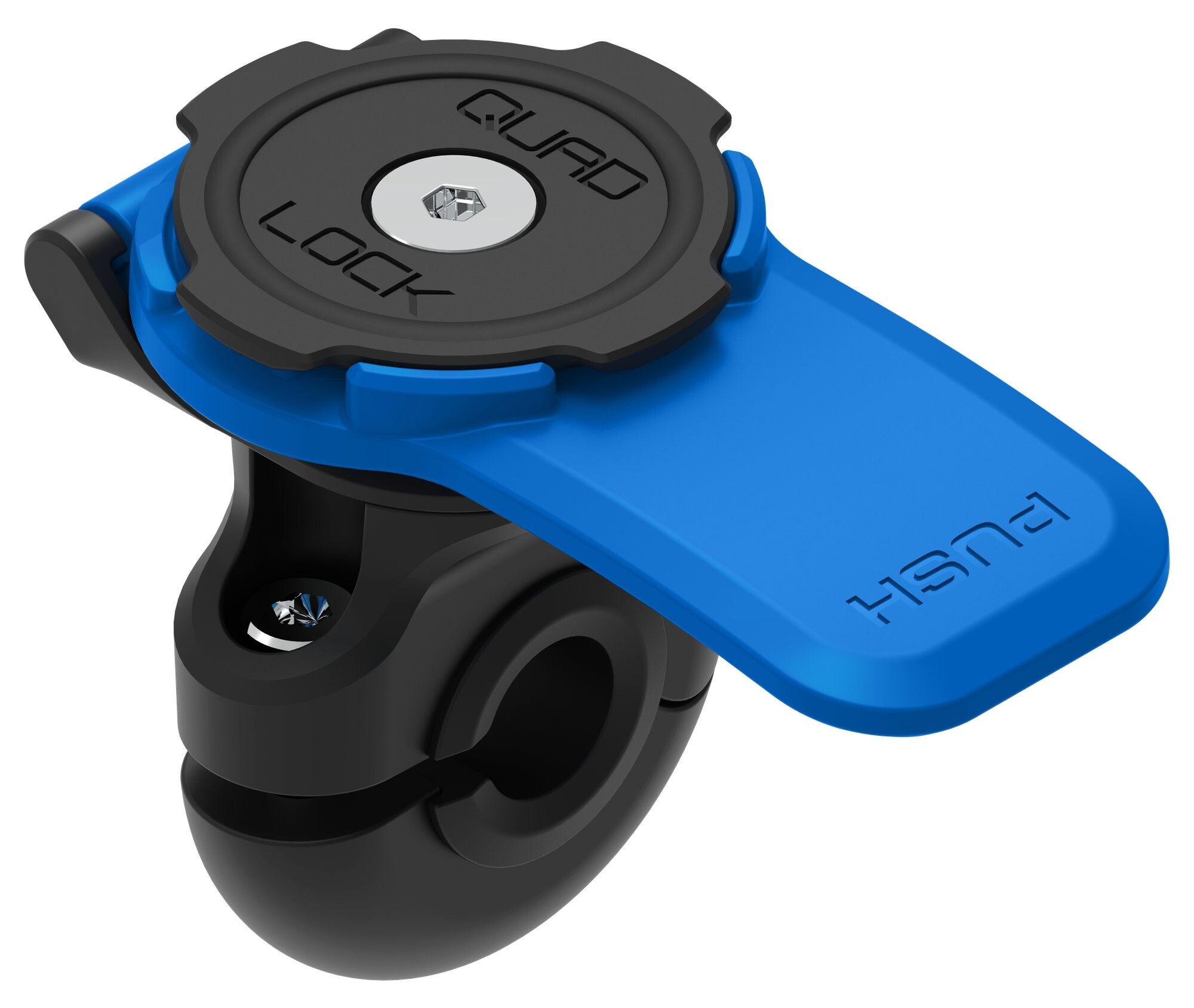

Phone mount Quad Lock Motorcycle / Scooter Mirror Mount (V2)

The Quad Lock® Mirror Mount allows you to securely mount your phone to standard motorcycle and scooter mirror stems and small bars.
Features:Secure - Patented Dual Stage Locking Mount
Convenient - Use Navigation Apps on the goSingle fastener clamp attachment with hinge pivot for easy installation
Mount phone in portrait or landscape orientation
Adjust mount head in 360° for optimal viewing angle
Suits bar sizes 10, 12, 14 & 16mm
The Quad Lock® Mirror Mount allows you to securely mount your phone to standard motorcycle and scooter mirror stems and small bars.
Features:
Secure - Patented Dual Stage Locking Mount
Convenient - Use Navigation Apps on the go
Single fastener clamp attachment with hinge pivot for easy installation
Mount phone in portrait or landscape orientation
Adjust mount head in 360° for optimal viewing angle
Suits bar sizes 10, 12, 14 & 16mm
Compatible with:
All Quad Lock Cases & Universal Adaptors
All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)
All Quad Lock 360 Compatible Products
All Quad Lock Coloured Levers
Handlebar compatibility:
Spacer Sizes (ID)
- 10.0mm (25/64”)
- 12.0mm (15/32”)
- 14.0mm (9/16”)
Clamp size (ID) without Spacer
- 16.0mm (5/8”)
Included in box:
1 x Mirror Mount V2
3 x Bar Spacers: 14mm (9/16”), 12mm (15/32”), 10mm (25/64”)
1 x 3mm Allen (Hex) Key
Materials:
Glass Filled Nylon
316 Stainless Steel Hardware
TPU Bar Spacers
Recommended torque rating:
Index Head Screw - 2.0 Nm Max.
Clamp Screws - 2.0 Nm Max.
Measurements:
Length: 67.5mm (Overall)
Width: 36.0mm (Head), 14.5mm (Clamp), 16.4mm (Spacers)
Height: 51mm (Overall), 32mm Centre of handlebar to top of Index Head
