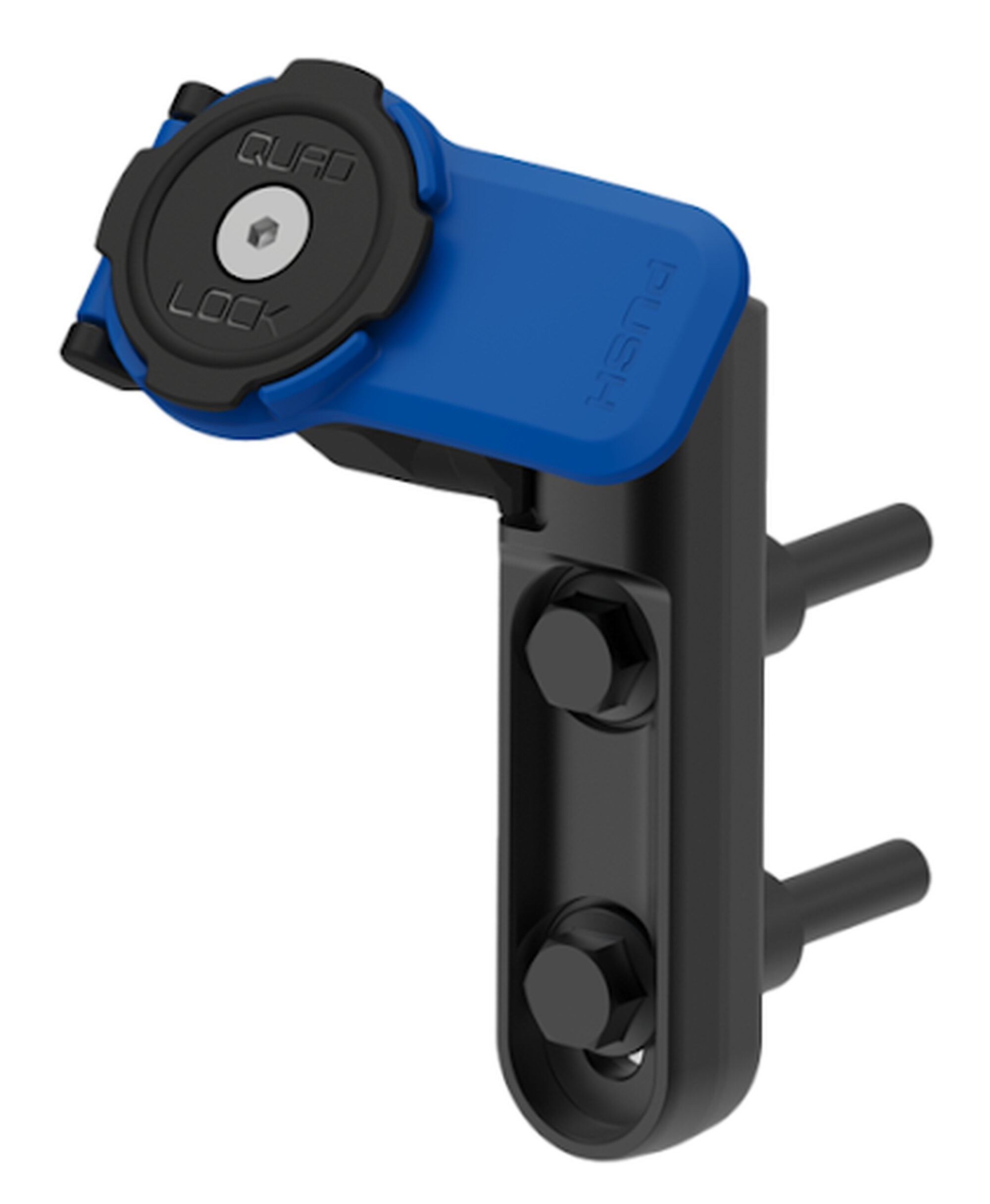

Motorcycle clutch mount Quad Lock

The Quad Lock® Brake/Clutch Mount is the perfect solution for motorcycles which require mounting on the brake/clutch perch.
Features:
- Compact design with twin bolt mounting to the brake/clutch handlebar clamp
- Mount base hole pitch range from 32 - 38mm
- Inboard single screw adjustment with angle and pivot adjustment towards the rider field of view
- Index lever head is offset inboard away from the handlebar controls
- Non-handed and can be mounted on the left hand or right hand side of the brake/clutch handlebar clamp on a motorbike
- High tensile fasteners including serrated flange bolts for the brake/clutch handlebar clamp for added security
- Anodised black die-cast base
- Microencapsulated thread locking fasteners
Compatible with:
All Quad Lock Cases
Quad Lock Vibration Dampener (QLA-VDM)
Quad Lock Weatherproof Wireless Charging Heads (QLA-MOT-WCH-3)
Included in box:
1 x Brake/Clutch Mount
2 x M6 x 45 serrated flange bolts with thread locker
2 x UNC ¼”-20 x 1.75 serrated flange bolts with thread locker
2 x Spacers
1 x Combination 3mm/4mm Hex Key
Measurements: 35mm L x 50mm W x 98mm H
Materials:
Base - Anodised die cast aluminium
Index head, knuckle and pivot spacer - GF33% Nylon
Pivot pins, threaded Inserts - SS
Fasteners - High tensile steel with ND593S threadlocker
