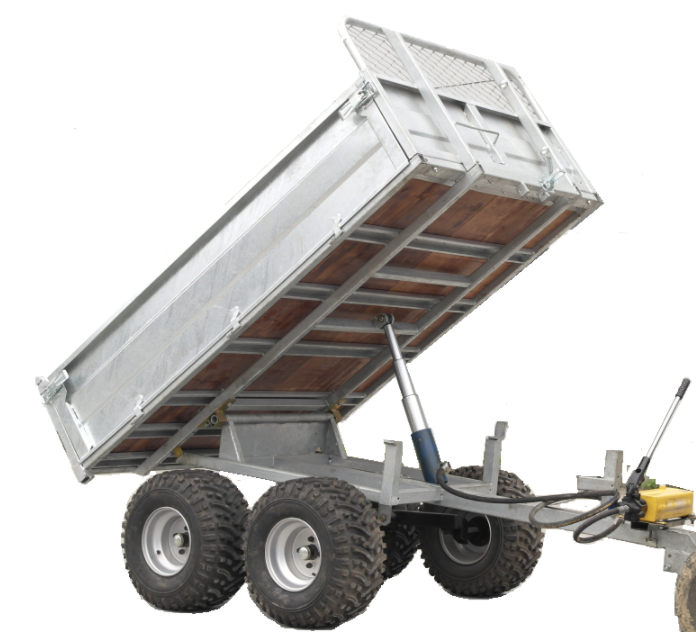

Bronco Tip Trailer with manual handpump max 1600kg

Width: 1.44m

Length: 3.03m

Weight: 318 kg

Max load: 1600 kg

Tire size: 22x11-10

Flat dimensions Length 2.0m, Width 1.3m, Height 0.4m

Delivered without hydraulic oil.

Pallet shipping will be added. Some assembly necessary

Bronco Tipping trailer 1600kg with manually actuated hydraulic tipping.
Suitable for ATV, UTV and smaller tractors with 50mm ball glove.
The flaps are easily folded down or removed when using the tipping function. Adjustable opening on the rear spreader door.
The lift tilts the flatbed up to 55 degrees.
Adjustable gravel spreader flap.

Rotatable towbar for 50mm towball

We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L).
