ECM W/AUTOTUNE 02-13 VROD

ECM with Integral Auto Tune System

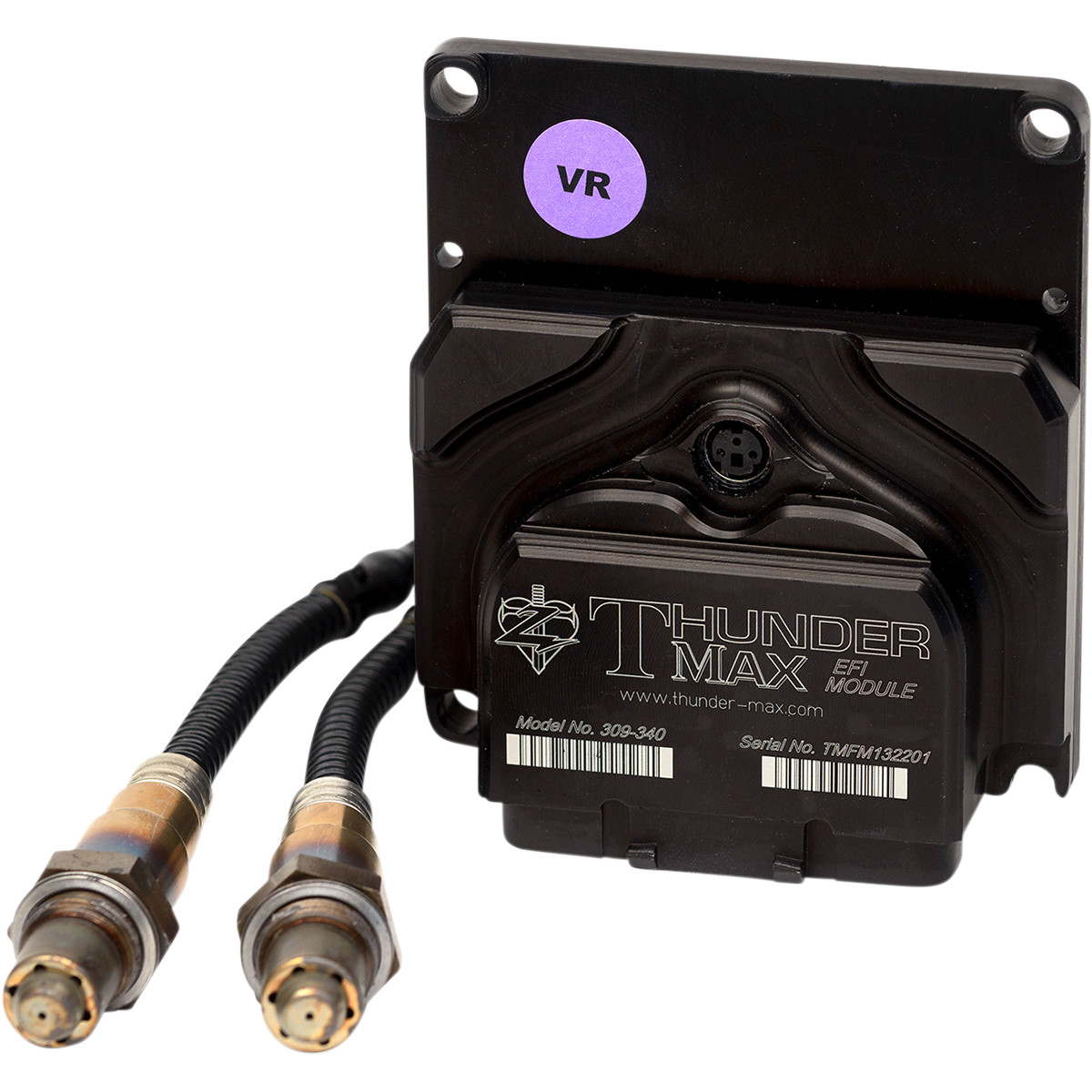

• Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
• Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.)
• load the map of your choice and the integral auto-tune will do the rest
• Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
• Utilizes wide-band O² sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
• ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
• Easy installation: replace the factory ECM, install new O² sensors and harness, load the correct map for your bike, and ride
• New maps, software, firmware updates, map analysis and tech support available online at no charge
• Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
• Works with all popular exhaust systems and is compatible with high-performance camshafts
• Rider can adjust idle speed, rev limit and speedometer calibration
• Improves throttle response, exhaust sound and driveability
• Supports turbo, nitrous and supercharger applications
• Does not require dyno tuning
• Made in the U.S.A.
• Because of possible clearance issues, some aftermarket exhaust systems may require modifications or relocation of their O² sensor port bungs.

Will require the use of an exhaust system with 18 mm sensor bungs or head pipes must be modified to accept 18 mm sensors

FEATURE	Includes Two Oxygen Sensors
MODEL	ThunderMax
PROGRAMMING	Autotune| Downloadable Maps
TYPE	Air/Fuel Ratio
UNITS	Kit
PRODUCT NAME	Electronic Control Module
OXYGEN SENSOR BAND	Wide-Band
OXYGEN LOOP CONTROL	Closed Loop
PHYSICAL CONNECTION	Plug-In (OEM Style Connectors)
BASE COLOR	Black
