Intake manifold -BGM PRO Racetour- Lambretta 195-225cc- CS=34mm

The bgm PRO intake manifold is specially designed for the bgm PRO Racetour cylinder kit. Of course it can also be used on all other cylinders with direct intake / piston control.

It was developed to be able to position a larger carburettor almost as original. This guarantees the largest possible distance to the side cover, so that the larger carburettor harmonizes perfectly with the bgm airbox (BGM4488). The CAD designed intake manifold is CNC milled from the solid material. The intake manifold is suitable for mounting connecting rubbers with 60mm hole stitch. We use and recommend the rubbers from Mark Broadhurst (MB). These are available in two different diameters, suitable for carburettors with Ø24-25mm and Ø28-30mm cross section.

The inlet cross section of the intake manifold is the same as the bgm Pro RT cylinder kit, therefore no adjustment is necessary.

Perfectly suitable for the following carburettors:

• D Keihin PWK 28
• Dellorto PHBH 28
• Dellorto PHBH 30
• Dellorto VHST

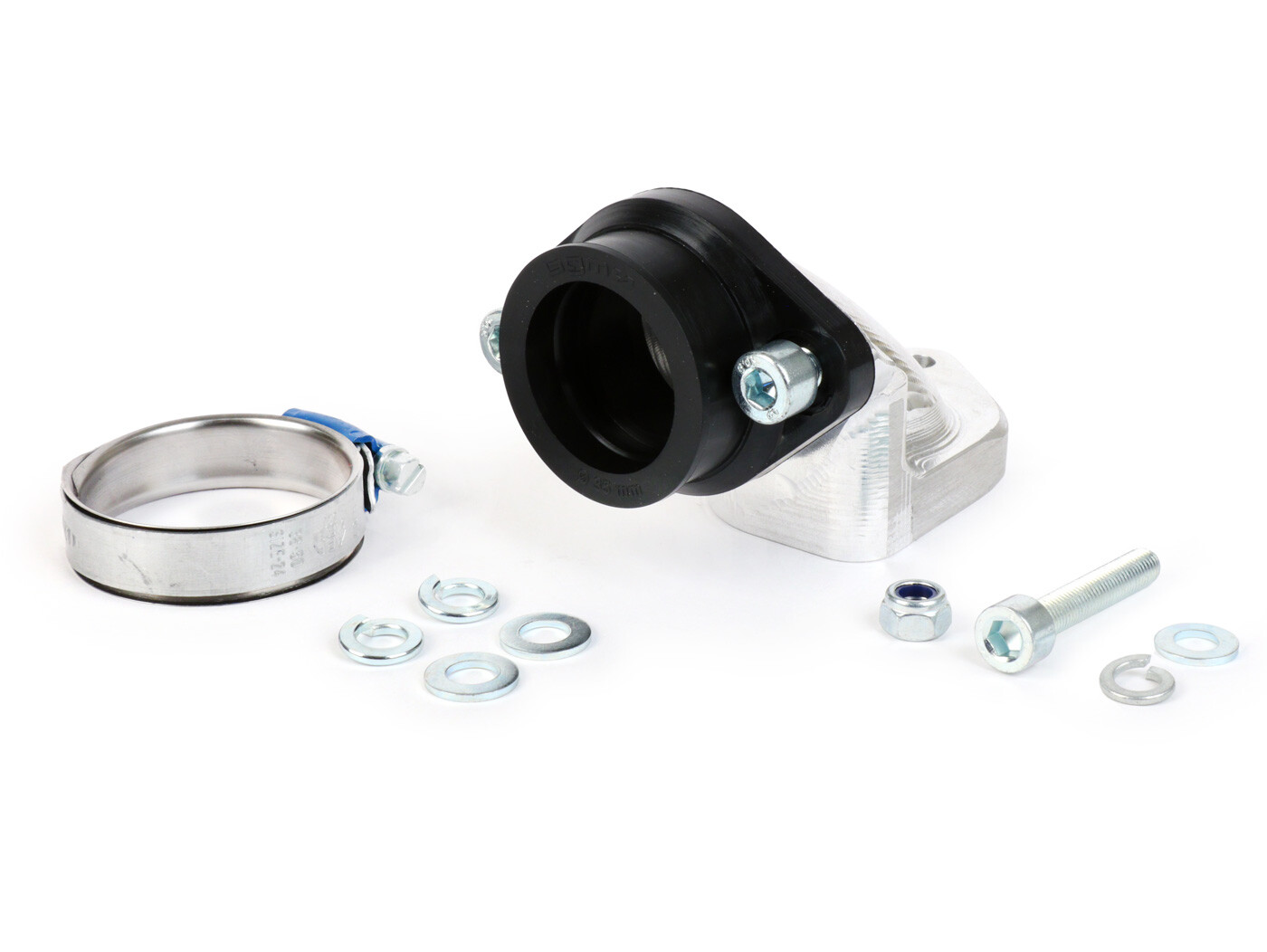

The kit includes all parts required for installation.

Note: Please use cylinder covers without Air Scoop or remove them from the cover.
