front wheel axle swiing complete w/ ball bearings type 2.0 for Puch

Wheel axle with special closed groove ball bearings in a complete set suitable for the original Puch front cast or spoke wheels.

The 2.0 ball bearings have an outer diameter of 29.02mm. Unlike the swiing previous version, the revised 2.0 bearing holds better in the bearing seat of the wheel hub.

Set content:

• 1x wheel axle, 157mm
• 2x special ball bearing (Ø12/29x9)
• 2x half-high nut M12x1
• 2x high nut M12x1
• various spacer bushings

Note on assembly:

It is mandatory that the long spacer bushing be sandwiched between the two ball bearings. This ensures that the bearings with the inner ring press on the bushing. Otherwise, the ball bearings will jam and this can cause damage.

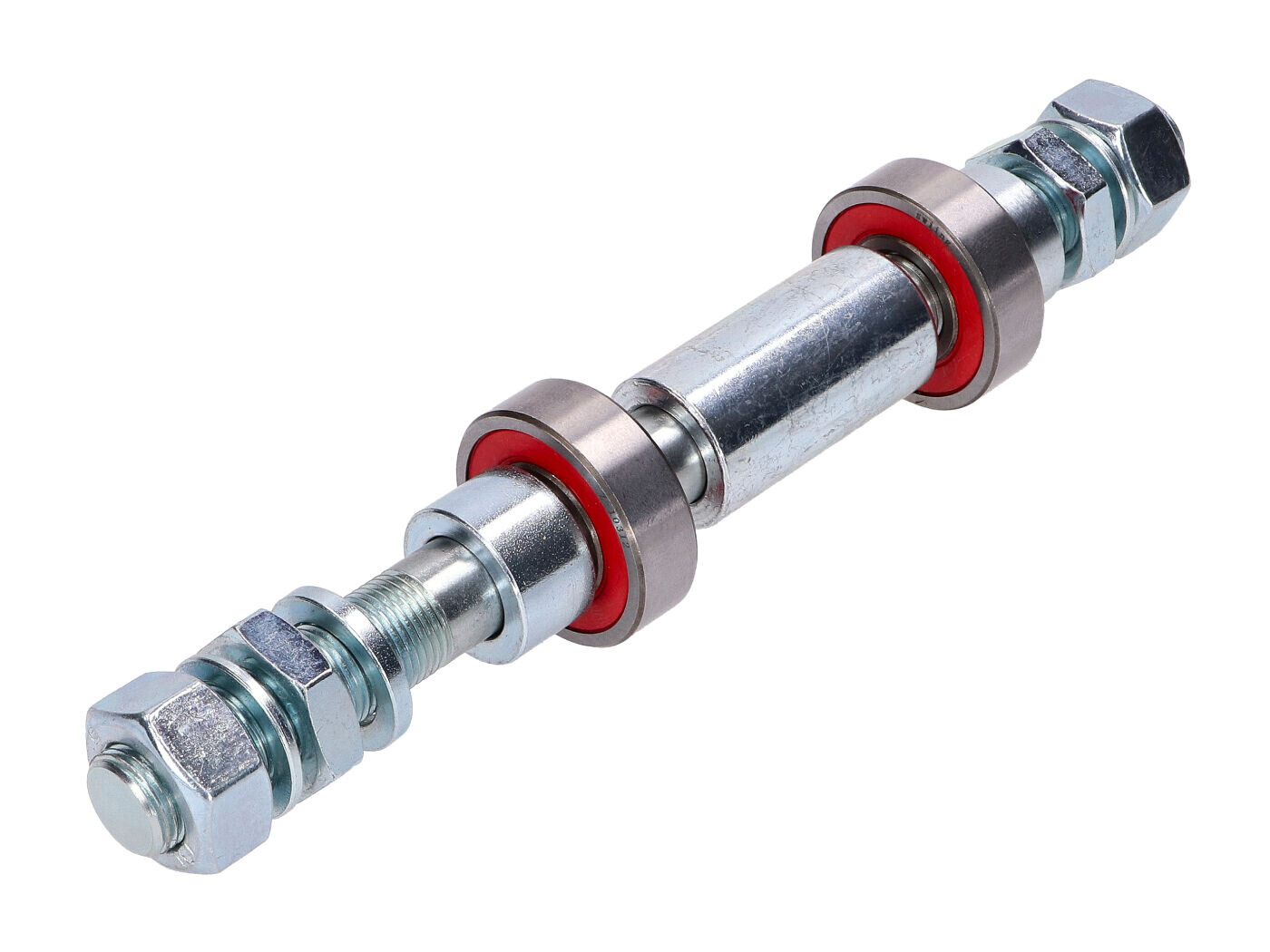

Scope of delivery as shown on the product picture. A complete set with front wheel axle for original Puch spoke and cast hubs is supplied.
