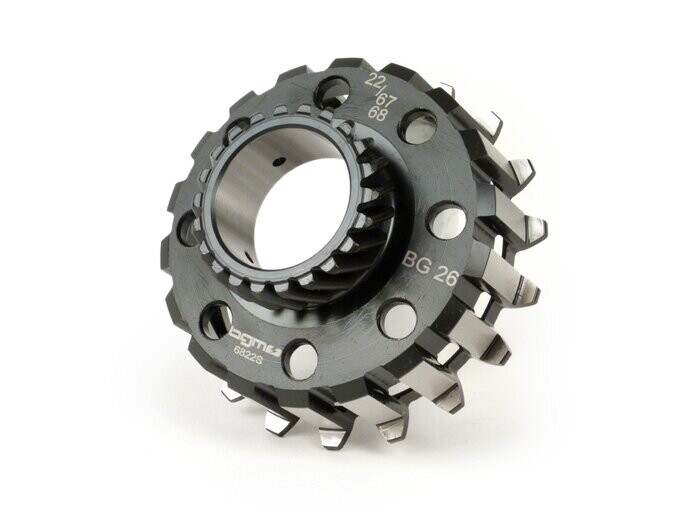

Clutch sprocket -BGM PRO- Vespa Cosa2, PX (1995-), BGM Superstrong, Superstrong CR - (for 67/68 tooth primary gear, helical) - 22 tooth

BGM coupling pinions are bullet proof. Developed for the enormous power and torque of today`s engines, they are made of a high-alloy steel (SCM415 / 15 CrMo 5) to the highest manufacturing standards. The enormously high strength of the base material (up to 1100N/mm2, HRC 58-62) provides a reassuringly safe basis for the production of BGM pinions.

The production meets the high standard of Honda`s gearbox production. Every single part receives a test report. BGM thus has a permanent continuous quality assurance.

• High-quality material 15 CrMo 5
• Precise production according to Honda standard
• Continuous quality control
• Useable on COSA2 clutch types
• Available with 20,21,22 and 23Z (23Z = special pinion)
• Fits the original primary of all 80-150ccm engines, as well as all Cosa models
• Fitting for engines with retrofitted 67/68 teeth primary gear

Characteristic feature of the BGM sprockets is their black colouring as well as the practical inscription indicating the number of teeth the sprocket itself has and for which primary gear it is suitable.

Longer transmission ratio without disassembling the motor ?
The pinion with 23 teeth is particularly interesting. It was never originally delivered from the factory. It is intended to extend the gear ratio of the 80-150ccm as much as possible. So you can use a 23/67 or 23/68 ratio without having to open the engine. Ideal for all riders of high capacity cylinders on e.g. the original PX125 or Sprint 150 engines. It even fits the Vespa Cosa models, because without exception a (too short) reduction of 21/68 was installed ex works. The reduction ratio is increased by 15%, which corresponds to the same increase of the final speed in km/h.

BGM clutch pinions are the perfect complement to the indestructible BGM Superstrong clutch.
All BGM Superstrong clutches with 20, 21, 22 and 23 teeth are equipped with this pinion ex works. It can be combined with all Cosa2 clutch types (recognizable by at least 8 spring seats).

(US)

We recommend BGM Pro Street gear oil (BGM2025, corresponds to specification API GL-3) as lubricant.
