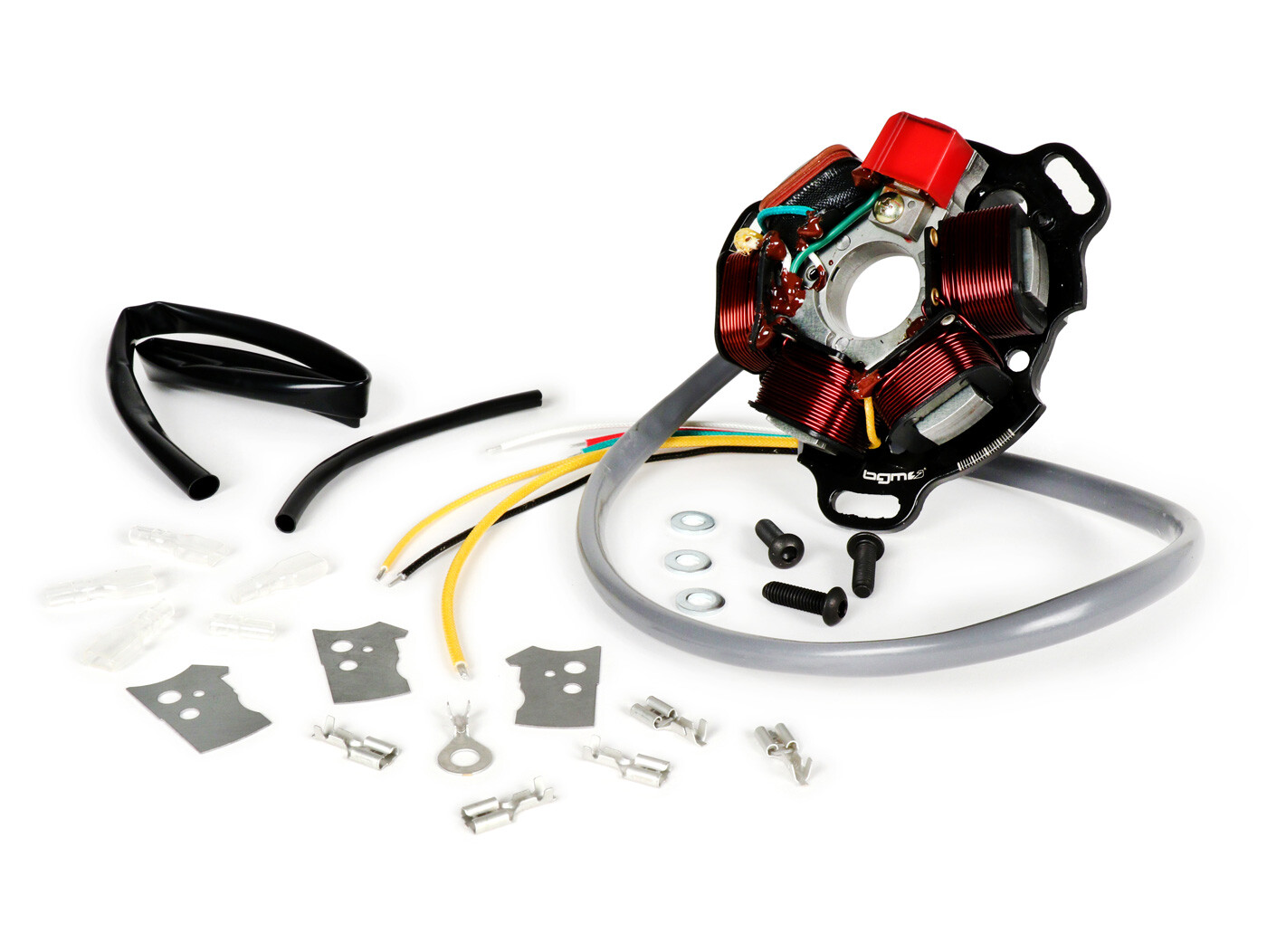

Ignition -BGM PRO stator HP V4.5 silicone DC (can also be used as AC) - Lambretta electronic ignition

Lambretta bgm PRO Zündr baseplate which can be operated either as a direct current version (=DC) or as an alternating current version (=AC).

For DC operation is a full cheek regulator (eg Art. No. BGM6698) and a battery required. The connection then looks like this:

• Green base plate to green CDI
• Red base plate to red CDI
• White base plate to white CDI
• Black base plate to frame/body ground
• Both Yellow wires to yellow from voltage regulator

For conventional B>AC operation the wiring looks like this:

• Green baseplate to green CDI
• Red baseplate to red CDI
• White baseplate to white CDI
• Black baseplate to frame/body ground
  Plug thick yellow wire to input on voltage regulator
• Plug thin yellow wire to ground

.
