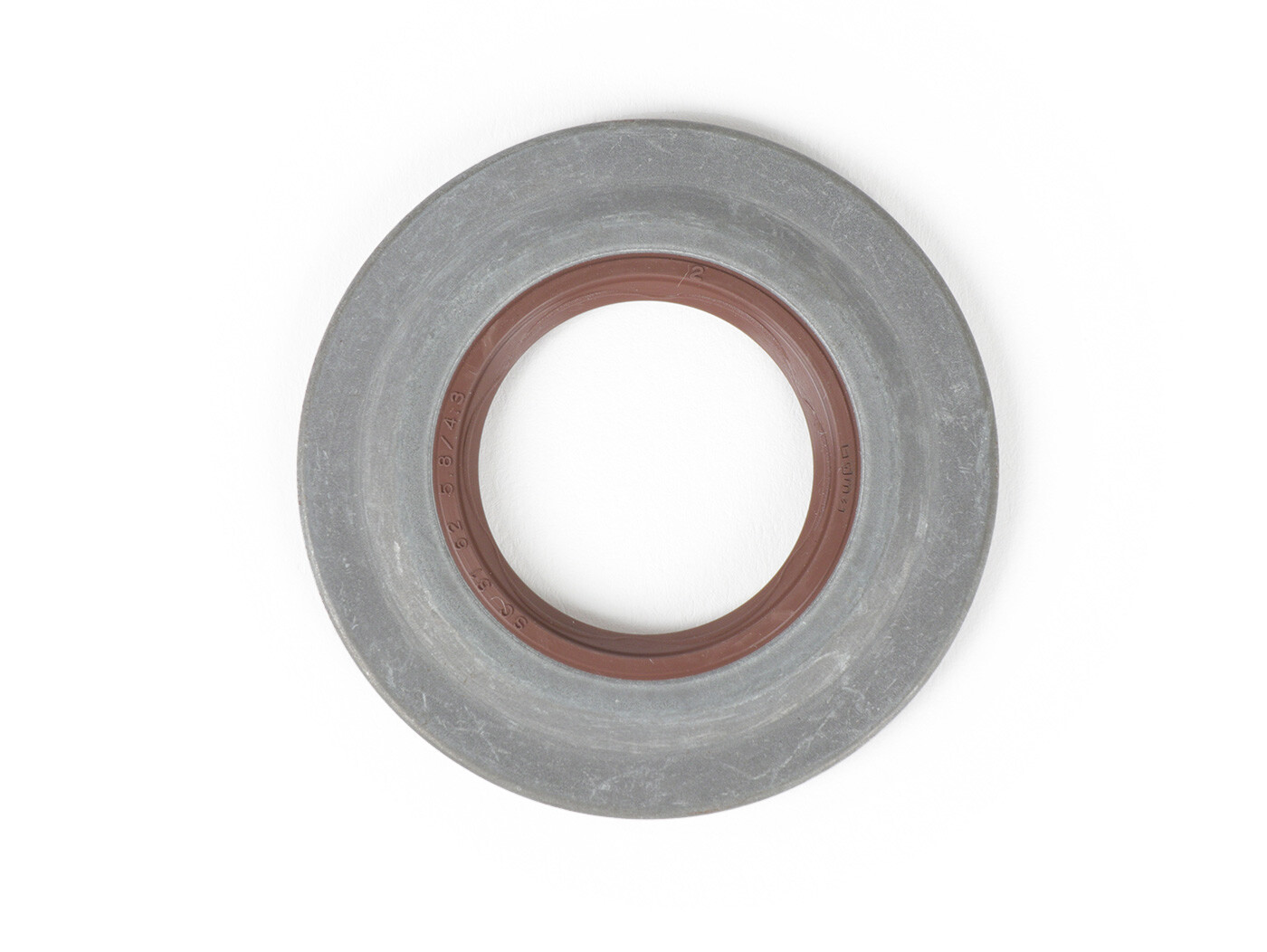

Oil seal 31x62,1x5,8/3,5mm -BGM PRO FKM/Viton® (E10/etahnol resistant) metal, brown (extra flat oil seal for crankshaft drive side Vespa PX (from 1984), T5 125cc, Cosa)

Be the first to review this product

In stock

SKU

RP50260

Special Price €12.00 Regular Price €15.00

Dispatching between 27.03.2026 and 06.04.2026

Ship to

Calculate Shipping Cost

Country

State/Province

Qty

Monthly payment from 4.08€, when choosing ESTO instalment as the payment method.

Details

BGM PRO oil seal crankshaft PX (type extra flat with 3.5mm) made of high quality and ethanol resistant (E10) FKM/VitonÂ®*.

EXTRA FLAT VERSION (31x62.1x5.8/3.5mm)
The shaft seal on the clutch side in its normal height (4.3mm) is a bit too high for many engine cases (e.g. Malossi).
Depending on the tolerances, as well as a possible spacer of the bearing, a shaft seal of conventional height can rest on the bearing inner ring.
Experienced mechanics have so far solved this problem by grinding down the oil seal.
The BGM shaft seal is a simple and practical solution.
With the reduced height (3.5mm instead of 4.3mm) they offer 100% sufficient distance to the bearing in every engine.
They are therefore compatible and applicable to any engine design.

WHY FKM/VITONÂ®
The material FKM (fluorocarbon rubber) is extremely resistant to heat, friction and fuel/ethanol.
In Germany, current premium fuel already contains up to 5% ethanol admixture per se. In other countries, the ethanol/alcohol content is significantly higher.
Conventional shaft seals can swell or soften on contact with ethanol-containing fuels. BGM PRO FKM/VitonÂ® shaft seals, on the other hand, offer perfect protection.
In addition, Viton is twice as temperature resistant as conventional (blue) NBR shaft seals, has very good gas impermeability and is also very resistant to aging.

WHAT IT IS SUITABLE FOR
An engine equipped with BGM PRO FKM/VitonÂ® shaft seals can therefore also be operated with E10 fuel (10% alcohol content) without any problems.
The high-quality brown VitonÂ®* sealing material is permanently resistant to alcohol and is also suitable for engines with high temperature loads and high speeds.
BGM PRO FKM/VitonÂ® shaft seals are therefore suitable for all engines, whether original or tuned high-performance engine.

ADVANTAGES BGM PRO
The BGM PRO oil seals offer a double sealing as an additional feature. All oil seals that seal to the atmosphere have a so-called dust lip. This is positioned in front of the actual sealing lip and keeps dust, dirt and moisture out. This further increases the very good stability.

AVAILABLE
The BGM PRO FKM/VitonÂ® oil seals are available individually as well as in sets for almost all Vespa and Lambretta engines.

*VitonÂ® is a registered trademark of DuPont Dow Elastomers

_{AI-translation}

More Information

More Information
Weight	0.030000
Barcode EAN13	4251389130918
Brand	BGM PRO
Availability	In the central warehouse
Supplier reference	50260
Outlet	No
Ships in	4-10 business days
Campains	Hinnagarantii
Fitment chart (old)	<!-- algus kataloog 2 --> <b>Kataloog 2 sobivused:</b><br><table><tr><th><b>Tootja</b></th><th><b>Mudel</b></th></tr><tr><td>LML</td><td>Belladonna 150 RV 2T</td></tr><tr><td>LML</td><td>DLX Deluxe 125 2T</td></tr><tr><td>LML</td><td>DLX Deluxe 150 2T</td></tr><tr><td>LML</td><td>Star 125 2T</td></tr><tr><td>LML</td><td>Star 150 2T</td></tr><tr><td>LML</td><td>Stella 125 2T</td></tr><tr><td>LML</td><td>Via Toscana 125 2T</td></tr><tr><td>LML</td><td>Via Toscana 150 2T</td></tr><tr><td>MotoVespa</td><td>125 CL (engine 9CL)</td></tr><tr><td>MotoVespa</td><td>150 CL (engine 9NC)</td></tr><tr><td>MotoVespa</td><td>200 DN (engine 9DN)</td></tr><tr><td>MotoVespa</td><td>200 DS (engine 9DS)</td></tr><tr><td>MotoVespa</td><td>PX 125 Iris (engine 99M)</td></tr><tr><td>MotoVespa</td><td>PX 125 T5 Sport (engine 98M)</td></tr><tr><td>MotoVespa</td><td>PX 125 T5 Sport Elestart (engine 108M)</td></tr><tr><td>MotoVespa</td><td>PX 150 Iris (engine 75M)</td></tr><tr><td>MotoVespa</td><td>PX 200 Iris (engine 73M)</td></tr><tr><td>MotoVespa</td><td>PX 200 Iris (engine 76M)</td></tr><tr><td>MotoVespa</td><td>PX 200 Iris (engine 77M)</td></tr><tr><td>MotoVespa</td><td>TX 200</td></tr><tr><td>Vespa (Piaggio)</td><td>Cosa 125 CLX (VNR1T300)</td></tr><tr><td>Vespa (Piaggio)</td><td>Cosa 125 CLX (VNR1T301)</td></tr><tr><td>Vespa (Piaggio)</td><td>Cosa 150 CLX (VLR1T300)</td></tr><tr><td>Vespa (Piaggio)</td><td>Cosa 200 CLX (VSR1T300)</td></tr><tr><td>Vespa Classic</td><td>Cosa 1 125 VNR1T</td></tr><tr><td>Vespa Classic</td><td>Cosa 1 150 VLR1T</td></tr><tr><td>Vespa Classic</td><td>Cosa 1 200 VSR1T (-91)</td></tr><tr><td>Vespa Classic</td><td>Cosa 2 150 VLR2T</td></tr><tr><td>Vespa Classic</td><td>Cosa 2 200 VSR1T (92-)</td></tr><tr><td>Vespa Classic</td><td>P125 X VNX1T</td></tr><tr><td>Vespa Classic</td><td>P150 X VLX1T</td></tr><tr><td>Vespa Classic</td><td>P200 E VSX1T</td></tr><tr><td>Vespa Classic</td><td>PX 125 E (Disc) ZAPM093 (-08)</td></tr><tr><td>Vespa Classic</td><td>PX 125 E (Disc) ZAPM741 (11-17) E3</td></tr><tr><td>Vespa Classic</td><td>PX 125 E Classic VNX2T (-97)</td></tr><tr><td>Vespa Classic</td><td>PX 125 E Lusso, Arcobaleno VNX2T (-93)</td></tr><tr><td>Vespa Classic</td><td>PX 125 T5 Elestart VNX5T</td></tr><tr><td>Vespa Classic</td><td>PX 125 T5 VNX5T (85-)</td></tr><tr><td>Vespa Classic</td><td>PX 150 E (Disc) ZAPM511 (98-)</td></tr><tr><td>Vespa Classic</td><td>PX 150 E (Disc) ZAPM742 (11-17) E3</td></tr><tr><td>Vespa Classic</td><td>PX 150 E Classic VLX1T (-97)</td></tr><tr><td>Vespa Classic</td><td>PX 150 E Lusso, Arcobaleno VLX1T (-93)</td></tr><tr><td>Vespa Classic</td><td>PX 150 E VLX1T (-85)</td></tr><tr><td>Vespa Classic</td><td>PX 200 E (Disc) VSX1T (98-)</td></tr><tr><td>Vespa Classic</td><td>PX 200 E Lusso, Arcobaleno VSX1T (83-)</td></tr><tr><td>Vespa Classic</td><td>PX 200 E VSX1T (-86)</td></tr><tr><td>Vespa Classic</td><td>PX 200 E VSX1T (-97)</td></tr><tr><td>Vespa Classic</td><td>PX 80 E Lusso, Arcobaleno V8X1T (83-)</td></tr><tr><td>Vespa Classic</td><td>PX 80 V8X1T (-83)</td></tr><tr><td>Vespa Classic</td><td>Vespa 125 GT R VNL2T</td></tr><tr><td>Vespa Classic</td><td>Vespa 125 GT VNL2T</td></tr><tr><td>Vespa Classic</td><td>Vespa 125 Super VNC1T</td></tr><tr><td>Vespa Classic</td><td>Vespa 150 Sprint Veloce VLB17 (69-)</td></tr><tr><td>Vespa Classic</td><td>Vespa 150 Super VBC1T</td></tr><tr><td>Vespa Classic</td><td>Vespa 180 Rally VSD1T</td></tr><tr><td>Vespa Classic</td><td>Vespa 200 Rally VSE1T</td></tr></table><!-- lopp kataloog 2 --><br>
