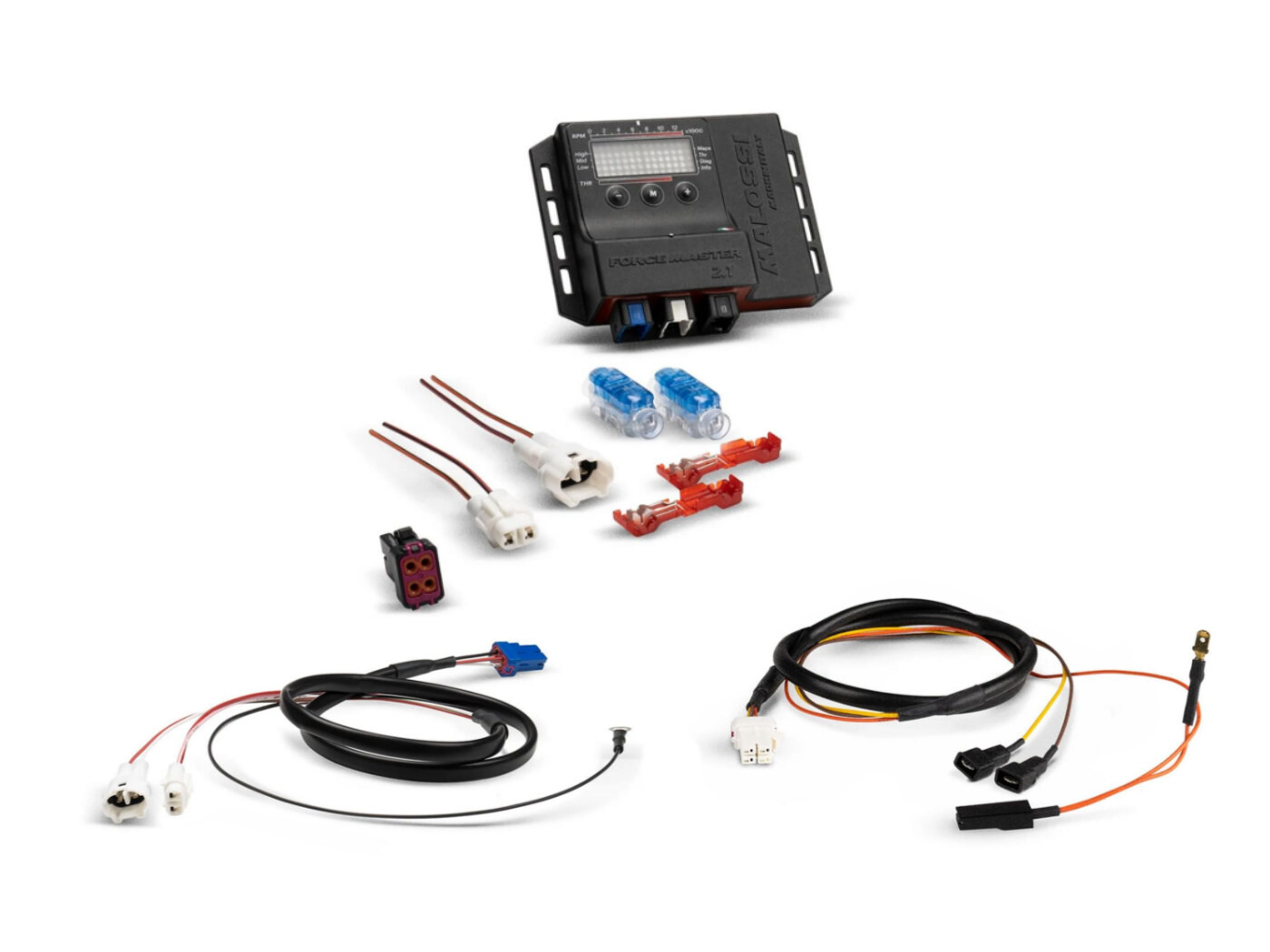

injection module Malossi Force Master 2.1 for Yamaha N Max, X Max 125 ie 4T LC 2021- Euro5

The Force Master 2.1 ECU has a completely new look and is much easier to configure. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal addition to the vehicle's power management: without functional limitations, it allows the engine to rev beyond the limit of the original RPM limiter.

Technical details:

• Injection rate: ± 14% LOW / HIGH / MID
.
• Speed limiter: 500 to 1,250 RPM depending on application
.
• Temperature range: -30°C +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Average current consumption: <-200mA
• Ingress protection rating: IP65

4 different maps:

• Curve 0: original exhaust system, Malossi cylinder, original head, original camshaft, original filter
• Curve 1: Malossi exhaust system with DB killer, Malossi cylinder, original head, original camshaft, original filter
• Curve 2: Original exhaust system, Malossi cylinder, original head, original camshaft, original filter
• Curve 3: Malossi with DB-killer exhaust system, Malossi cylinder, original head, original camshaft, original filter
