cylinder kit SCHMITT Sportfreund Almot Edition 60cc 41mm for Simson S51, KR51/2, SR50

Aluminum Schmitt "Sportfreund" cylinder kit with 60cc capacity, 41mm bore for 44mm stroke, suitable for Simson Moped / Mokick S51, KR51/2, SR50.
The Schmitt cylinder manufactured in Europe is a high-torque 60cc 4-channel cylinder with centered cylinder head and nickel-carbide-silicon coated liner. The powerful cylinder from the "Sportfreund" series is a real mashup and is supplied with a newly developed Almot piston with increased ovality. The thermal properties of this piston are well above the usual standard.
The cylinder and head have more surface area to improve cooling, and the design is also such that the cylinder can be machined even further without the need for laborious gluing or welding.
In this cylinder, state-of-the-art combustion chamber contours, transfer ports and the latest material alloys are packed into an original 50cc look.

Capacity: 60cc

Bore: 41mm (diameter)

Stroke: 44mm

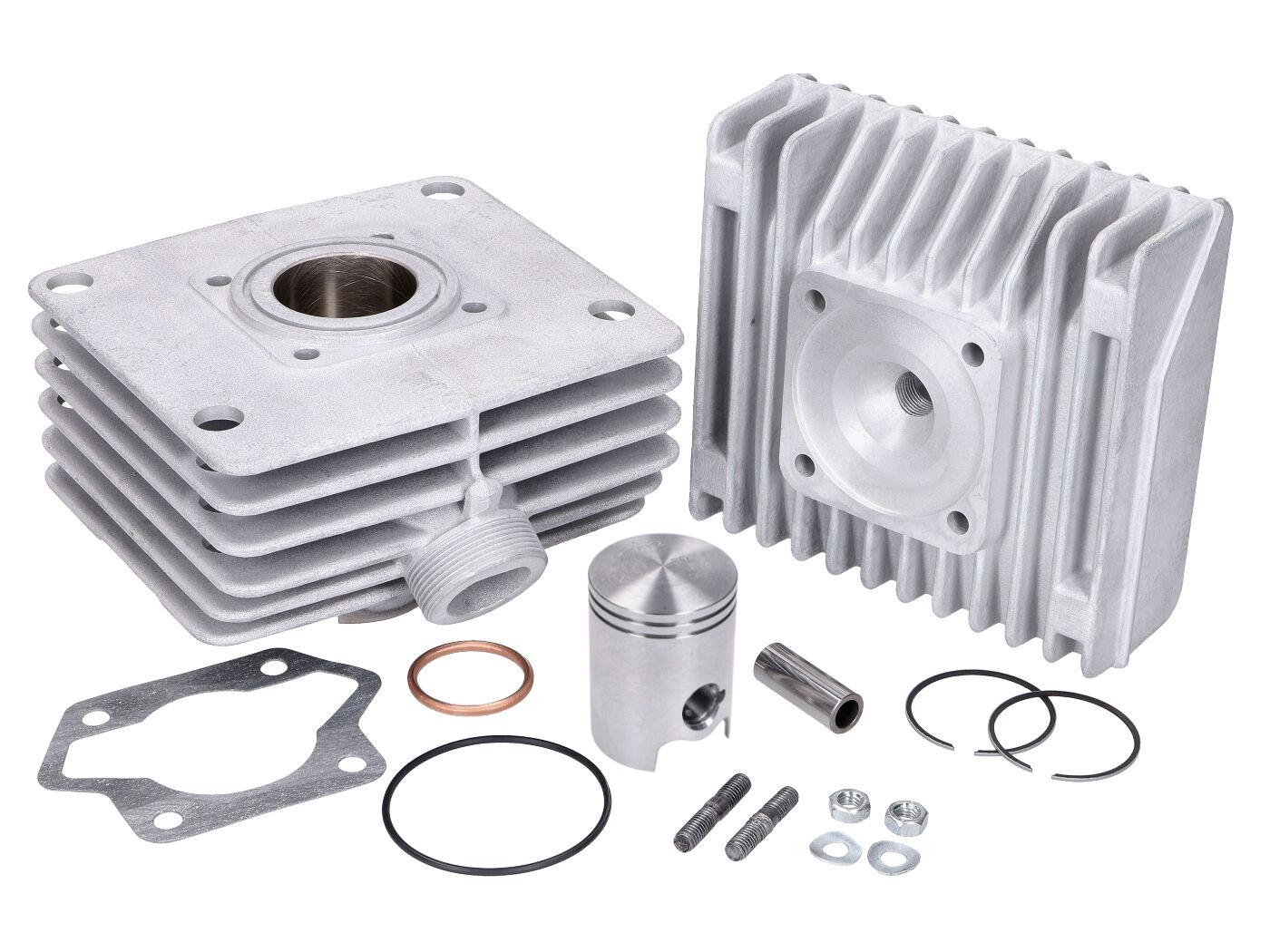

Included in delivery: 4-channel cylinder (nickel-carbide-silicon coated), centered cylinder head, O-ring gasket, base gasket, 2-ring Almot piston, carburetor studs and small parts
