pulley Doppler Open 11-tooth for Peugeot 103 moped

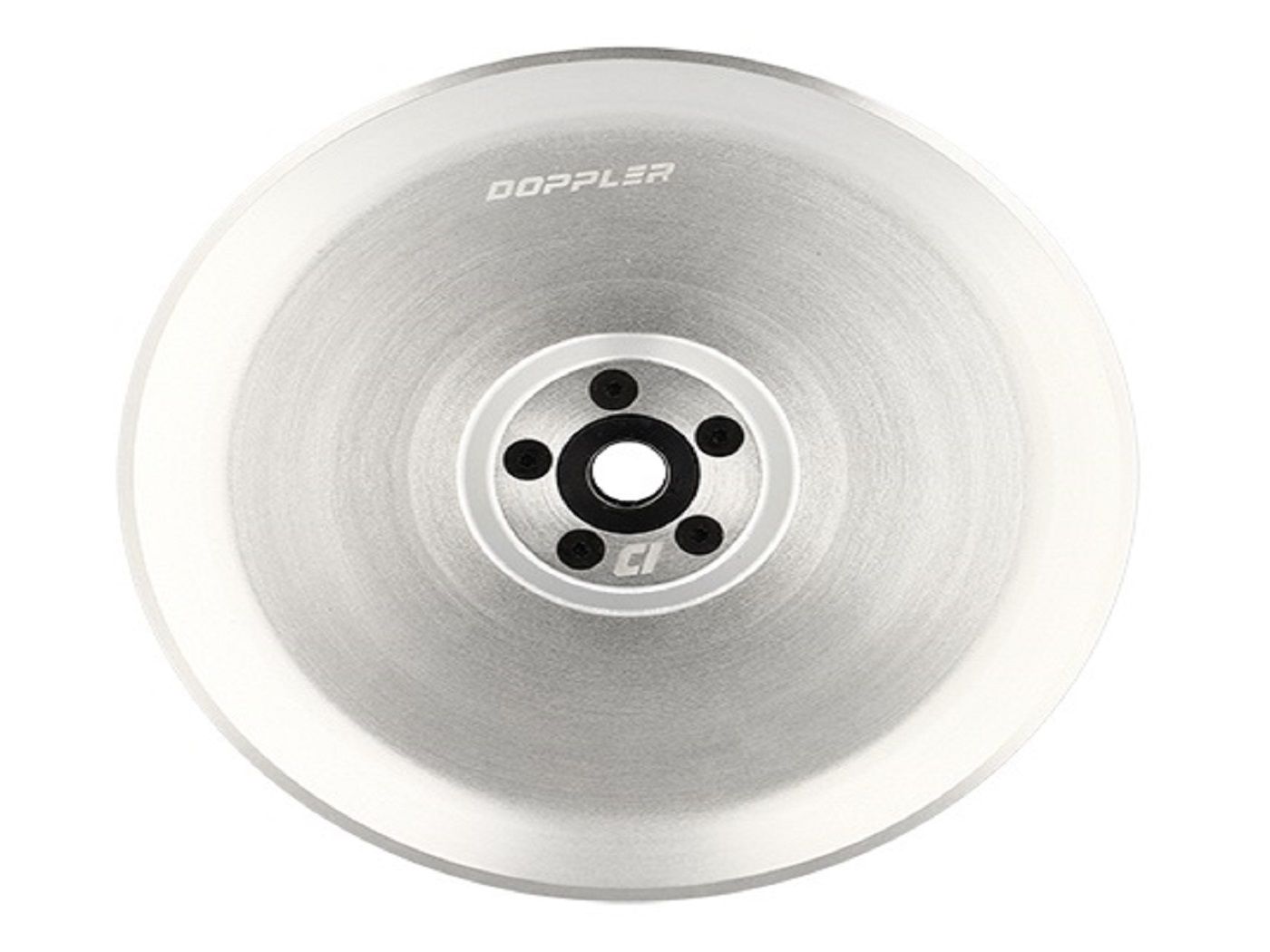

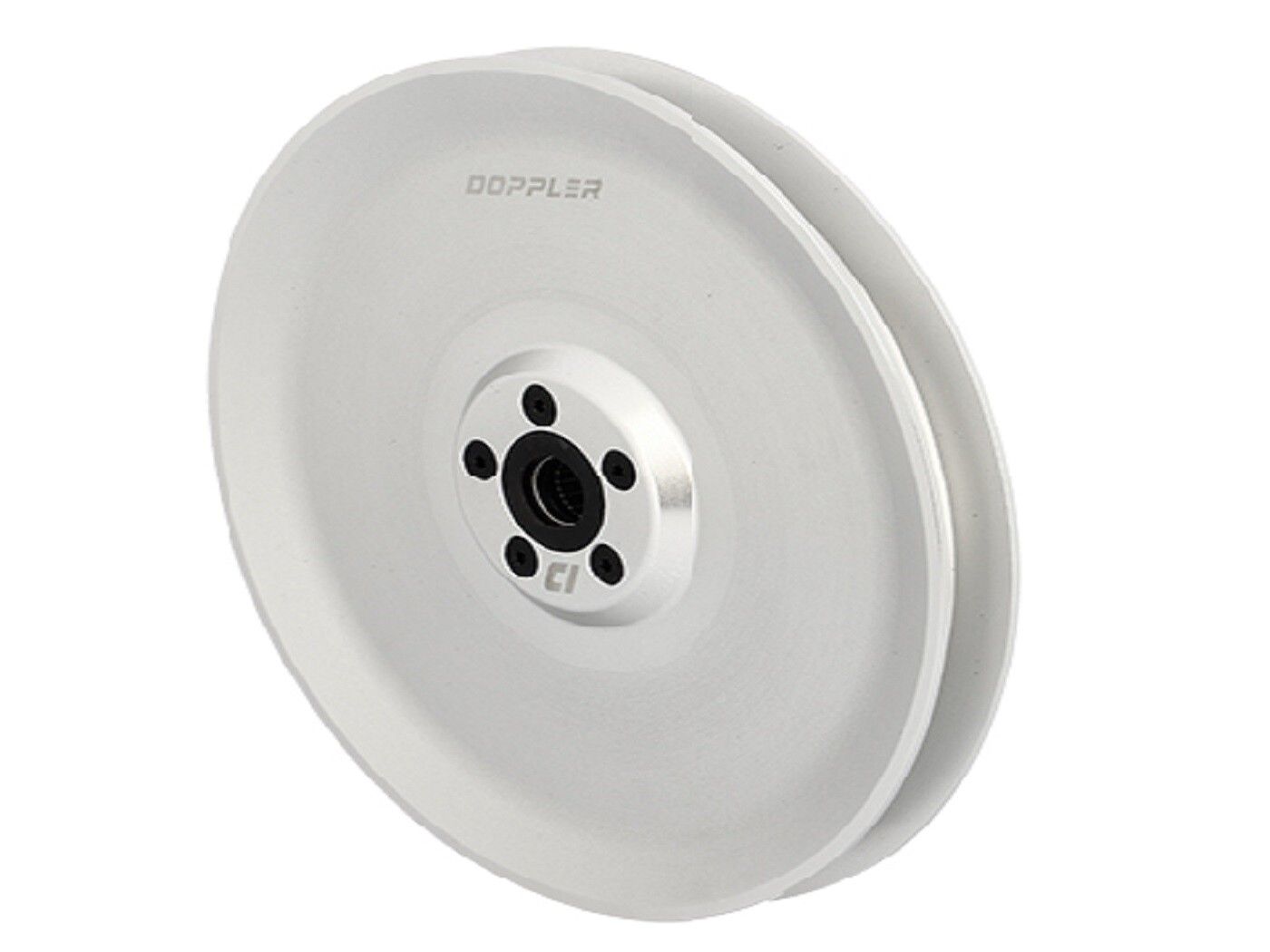

This 213mm Doppler tuning pulley of the Doppler Open series is turned from solid aluminium and is anodised in silver-colour. The stainless steel pinion serves as a centring device in the chainring and is adjusted to avoid jumps. The 5 screws ensure that no shear occurs. Milled heads prevent loosening.

Scope of delivery:

1x pulley 213mm diameter for original width belt

1x steel pinion

2x HK1616-2RS sealed needle bearings

5 FHC screws M5x15

Installation note: The countersunk screws should be tightened crosswise with a torque of 4.5Nm. Before assembly please grease the needle bearing, then every 4500km or every season if necessary.

Among other things, suitable for:

PEUGEOT 103 MVL (50cc)

PEUGEOT 103 SP (50cc)

PEUGEOT 103 VOGUE (50cc) 2004 to 2018

PEUGEOT 103 VOGUE (50cc)
